Buttons: floating action button

A floating action button (FAB) represents the primary action of a screen.


Usage

A floating action button (FAB) performs the primary, or most common, action on a screen. It appears in front of all screen content, typically as a circular shape with an icon in its center. FABs come in three types: regular, mini, and extended.

Only use a FAB if it is the most suitable way to present a screen’s primary action.

Do.

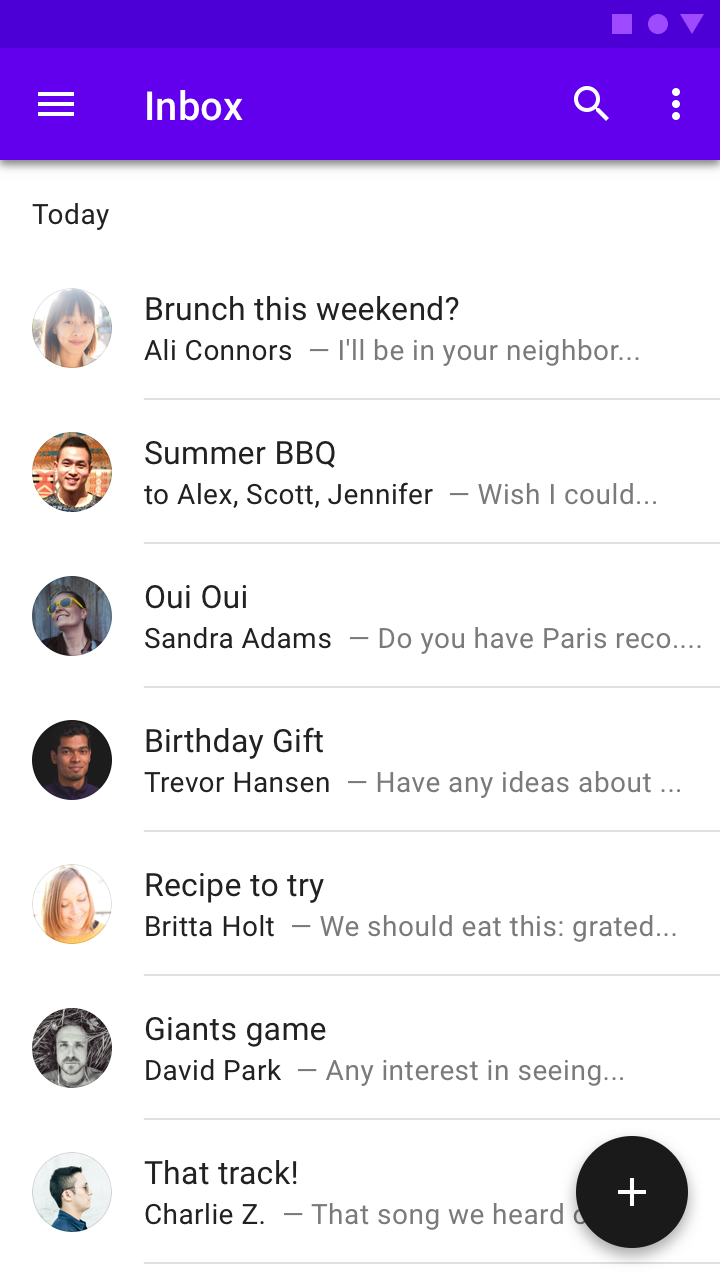

Represent the most common primary action with a floating action button, such as drafting a new email.

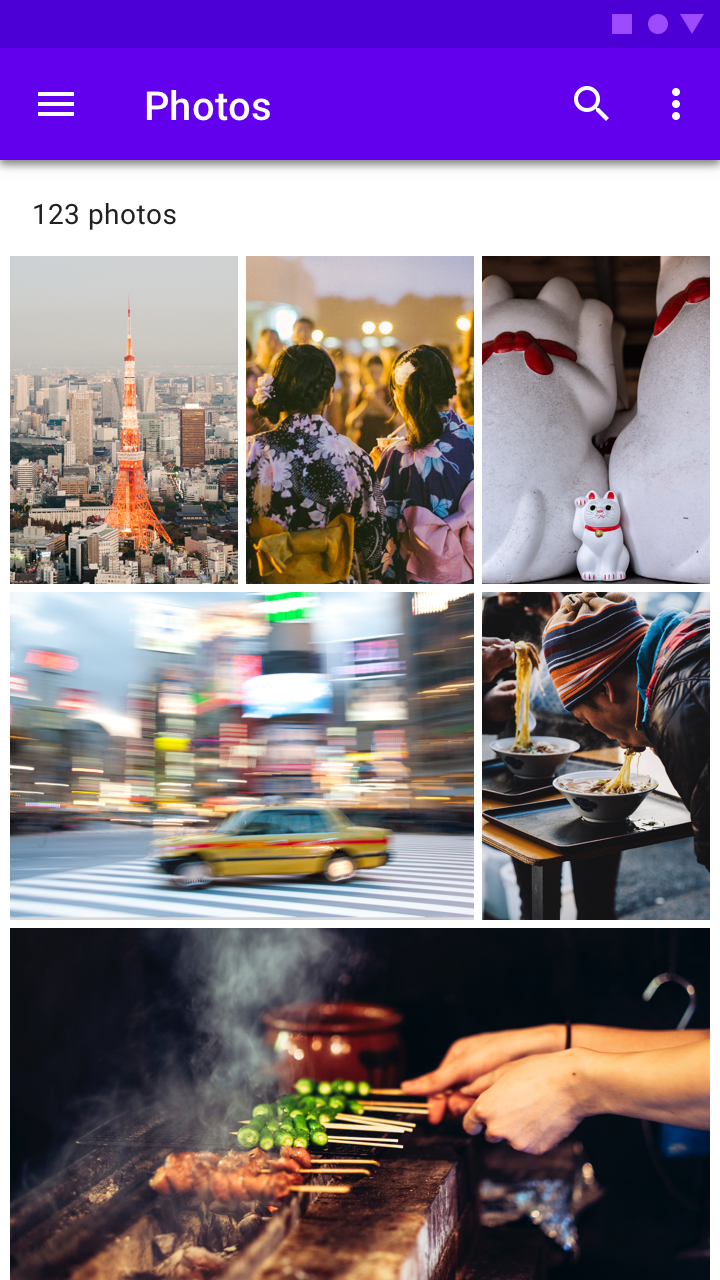

Do.

FABs are not needed on every screen, such as when images represent primary actions.

Don’t.

Don’t display multiple FABs on a single screen.

Caution.

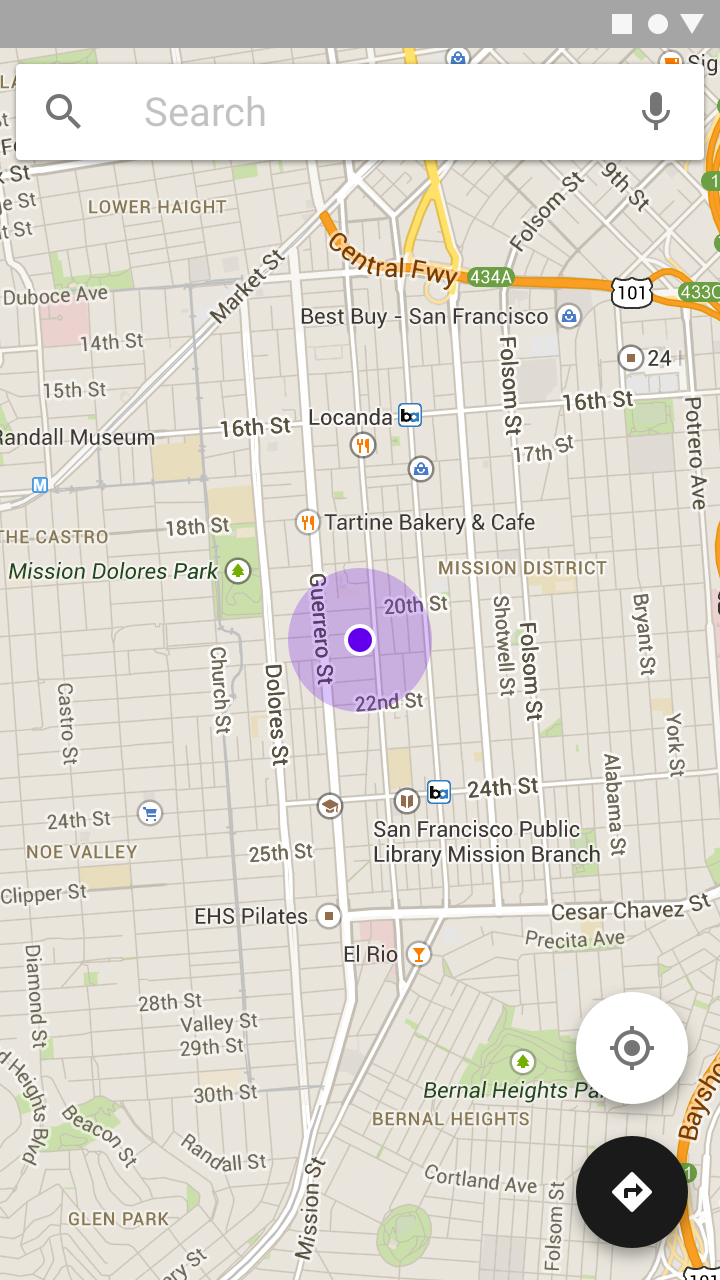

Occasionally two FABs can be used, if they perform distinct, yet equally important, actions.

Principles

FABs are primary, constructive, and contextual.

Read More

Primary

A FAB represents the primary action on a screen.

Constructive

A FAB should perform a constructive action (such as create, share, or explore).

Contextual

A FAB should be relevant to the screen on which it appears.

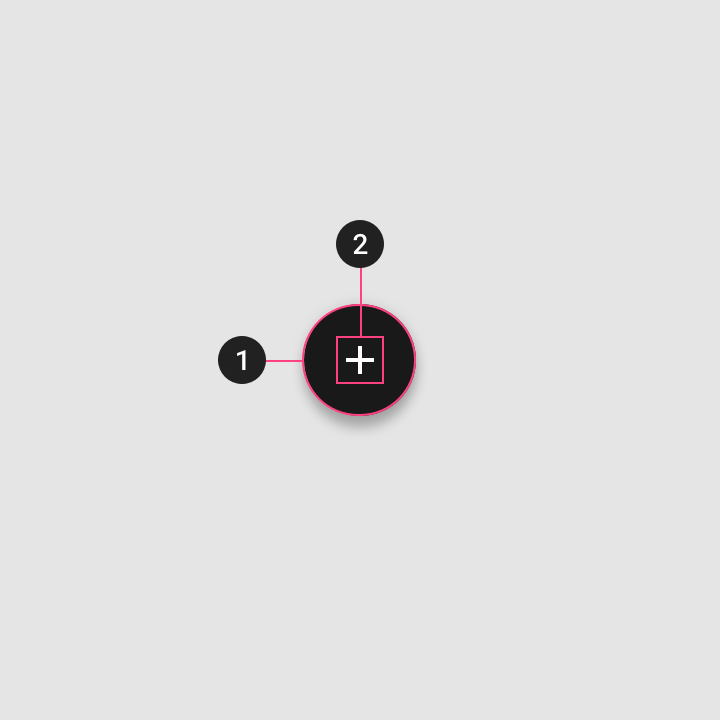

Anatomy

  1. Container

  2. Icon

Container

The FAB is typically displayed in a circular container. An app’s color scheme determines its color fill, which should contrast with the area behind the...

Read More

The FAB is typically displayed in a circular container. An app’s color scheme determines its color fill, which should contrast with the area behind the FAB.

FAB containers come in two sizes:

  1. Default (56 x 56dp)
  2. Mini (40 x 40dp)

A mini FAB should be used on smaller screens. When a screen width is 460dp or less, the container of a default FAB (56dp) should transform into the mini size (40dp).

Mini FABs can also be used to create visual continuity with other screen elements.

This mini FAB creates visual continuity by having a related size, shape, and placement to the folder icons below it.

Do.

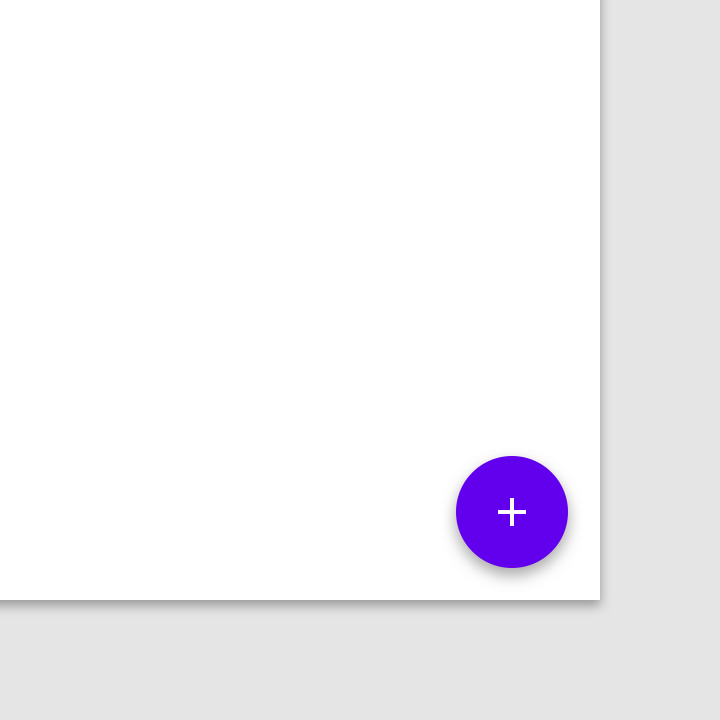

FAB containers adopt a color from an app’s palette.

Don’t.

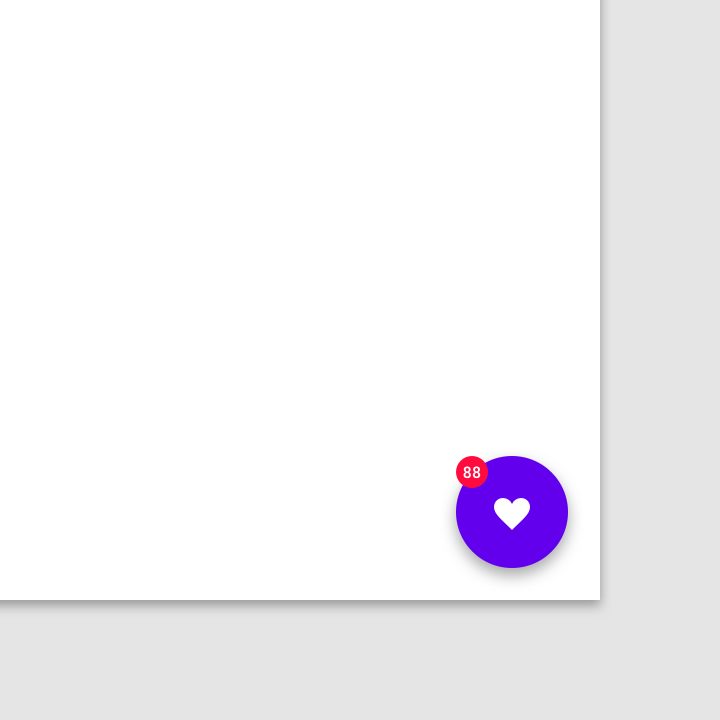

Don’t layer badges or other elements in front of a FAB.

Icon

A FAB’s icon should clearly illustrate its action. A FAB shouldn’t contain notifications or actions found elsewhere on a screen.

Read More

A FAB’s icon should clearly illustrate its action. A FAB shouldn’t contain notifications or actions found elsewhere on a screen.

Don’t.

Don’t use ambiguous iconography.

Don’t.

Don’t place text in a regular FAB.


Placement

FABs can attach to top app bars and the edge of some components.

Do.

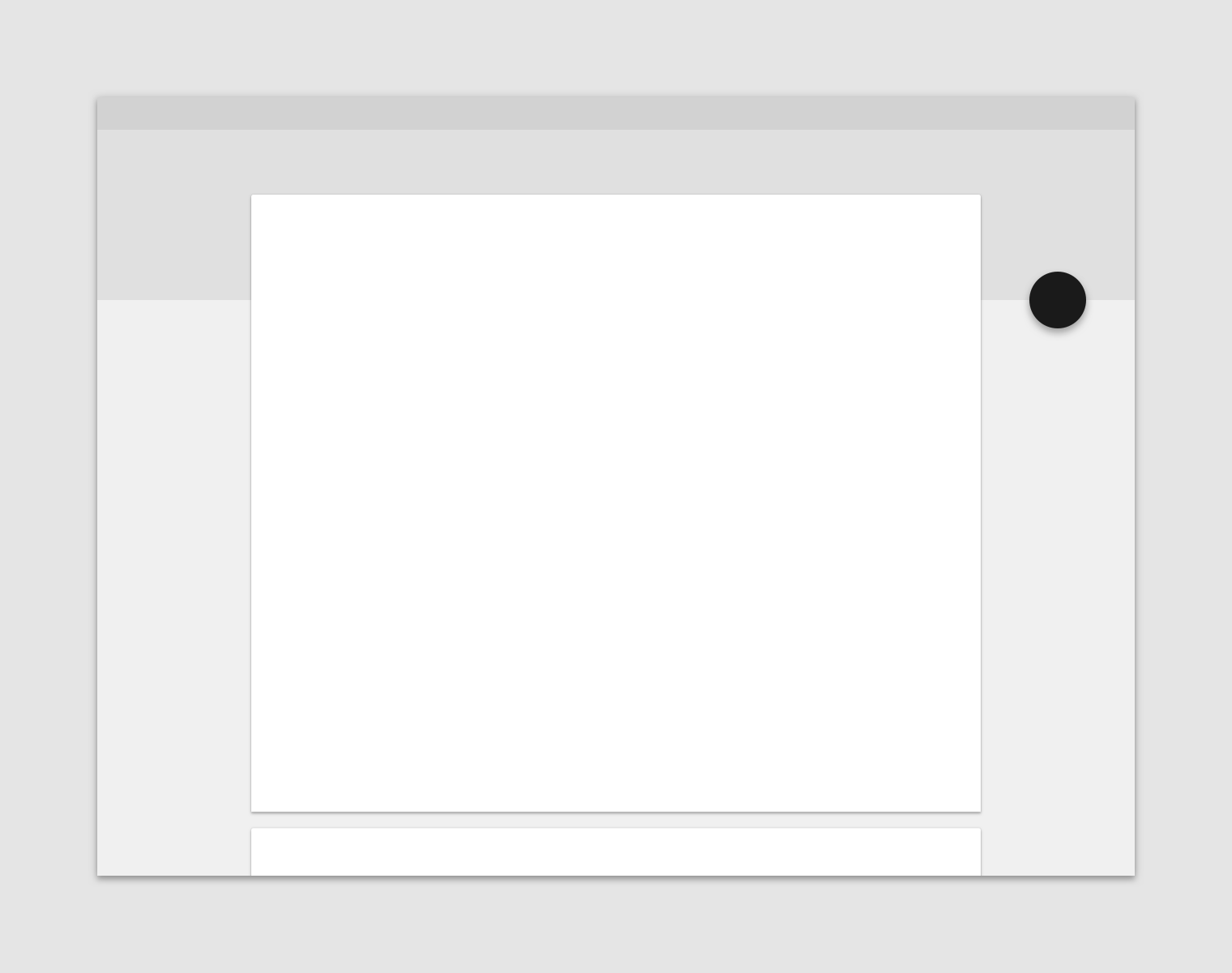

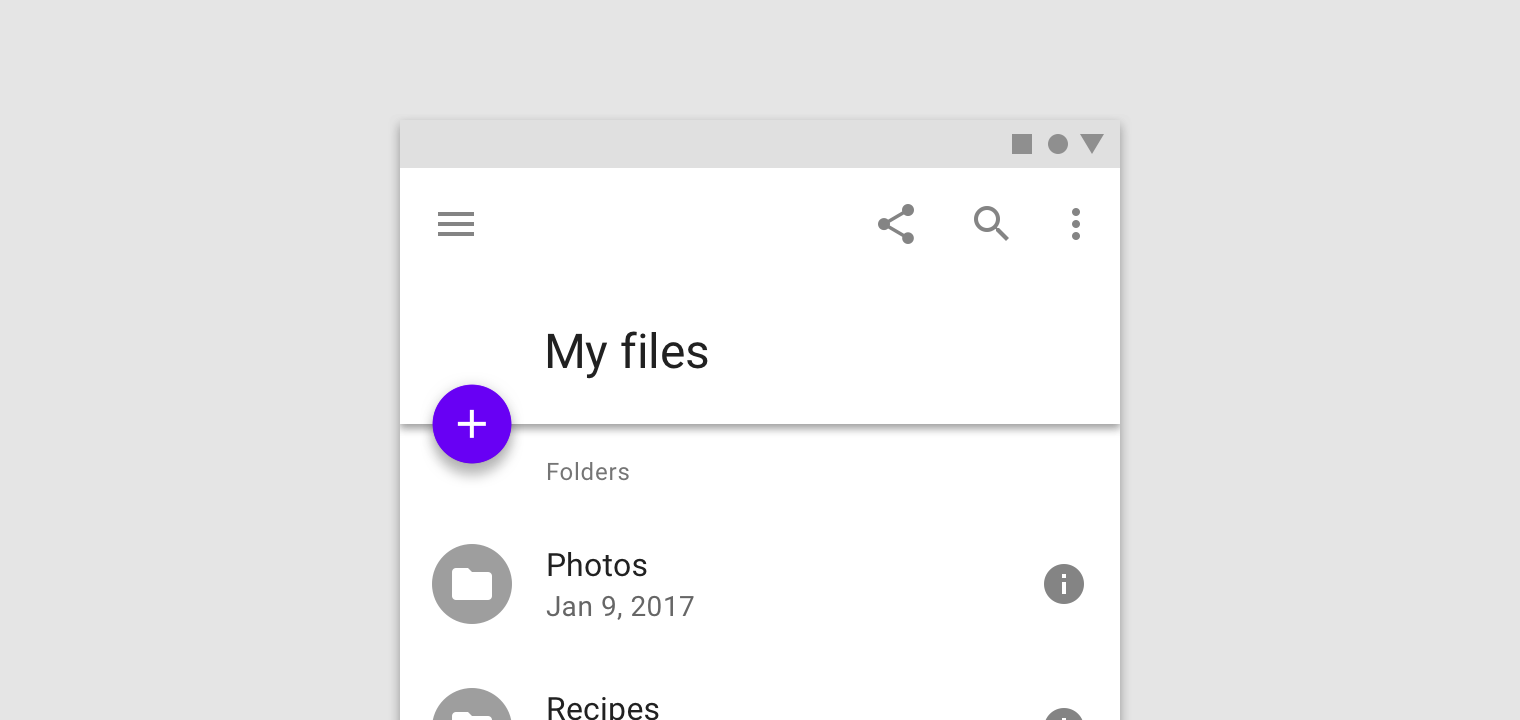

A floating action button (FAB) can attach to a top app bar.

Do.

A FAB can be attached to the edge of a component.

Don’t.

Individual components, such as cards, cannot each have their own FAB.


Behavior

Actions

A floating action button (FAB) can trigger an action either on the current screen, or it can perform an action that creates a new screen....

Read More

A floating action button (FAB) can trigger an action either on the current screen, or it can perform an action that creates a new screen.

A FAB promotes an important, constructive action such as:

  • Create
  • Favorite
  • Share
  • Start a process

Avoid using a FAB for minor or destructive actions, such as:

  • Archive or trash
  • Alerts or errors
  • Limited tasks like cutting text

Controls better suited to a toolbar (like controls to adjust volume or font color)

Do.

Use FABs for primary, positive actions.

Don’t.

Do not use FABs for minor, overflow, unclear, or destructive actions.

Motion

When a FAB animates on screen, it expands outward from a central point. The icon within it may be animated as well. While FABs should...

Read More

Appearing on screen

When a FAB animates on screen, it expands outward from a central point. The icon within it may be animated as well.

While FABs should be relevant to screen content, they aren’t attached to the surface on which content appears. FABs move separately from other UI elements because of their relative importance.

Screen transitions

FABs can morph to launch related actions. When a screen changes its layout, the FAB should disappear and reappear during the transition.

Reappearance

The FAB should only reappear if it’s relevant to the new screen. It should reappear in the same position, if possible.

Throughout this user flow the FAB location remains consistent.

Tabbed screens

When tabs are present, the FAB should briefly disappear, then reappear when the new content moves into place. This expresses that the FAB is not...

Read More

When tabs are present, the FAB should briefly disappear, then reappear when the new content moves into place. This expresses that the FAB is not connected to any particular tab.

Do.

When switching between tabs, FABs disappear and then reappear.

Don’t.

When switching between tabs, FABs don’t move in unison with screen content.


Types of transitions

Speed dial

When pressed, a FAB can display three to six related actions in the form of a speed dial. This transition can occur in one of...

Read More

When pressed, a FAB can display three to six related actions in the form of a speed dial. This transition can occur in one of the following ways:

  • Upon press, the FAB can emit related actions
  • Upon press, the FAB can transform into a menu containing related actions (Android only)

If more than six actions are needed, something other than a FAB should be used to present them.

Emit related actions

Upon press, the FAB remains visible and emits a stack of related actions. If the FAB is tapped is pressed in this state, it should either initiate its default action or close the speed dial actions.

A FAB displays a stack of related actions.

Don’t.

A speed dial should include at least three options.

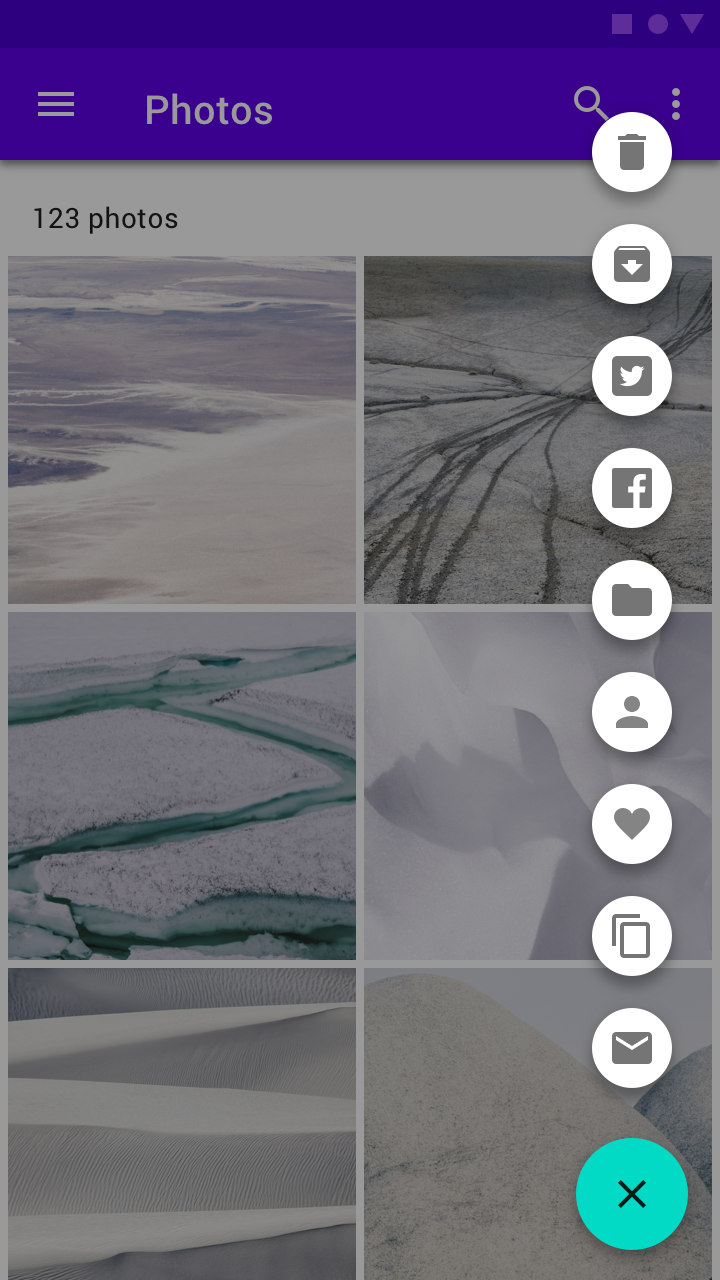

Don’t.

A speed dial should include no more than six options.

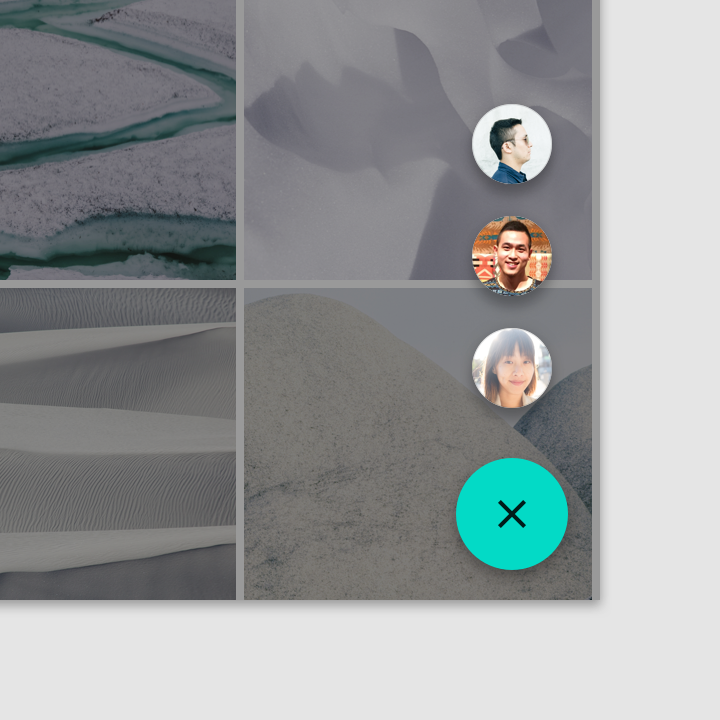

Do.

A FAB can contain a list of contacts.

Do.

Related actions can have text labels.

Don’t.

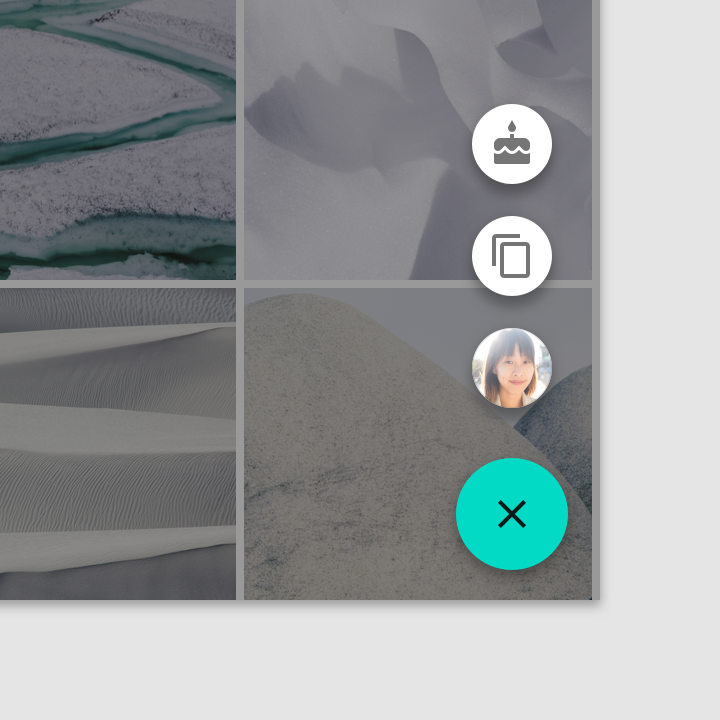

A FAB shouldn’t transform into unrelated actions.

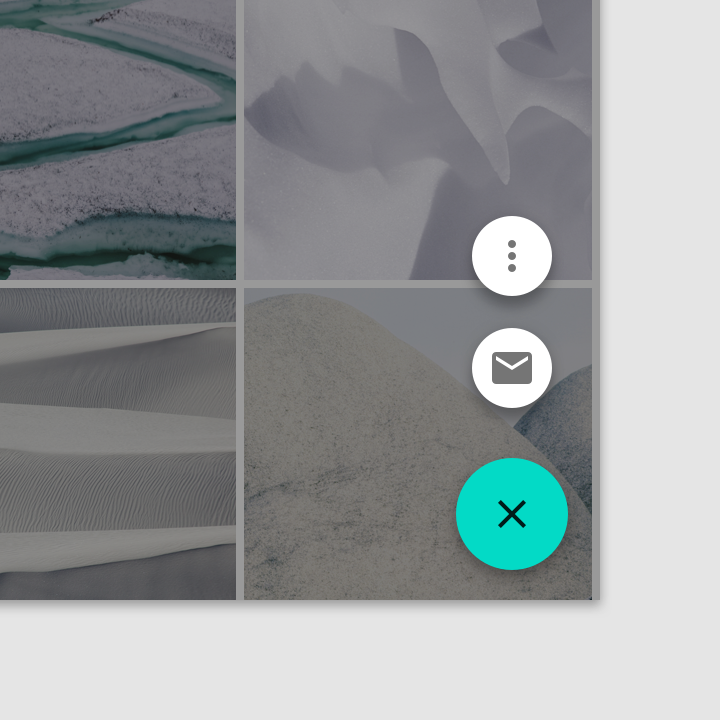

Don’t.

Speed dial options shouldn’t include an overflow menu.

Transform into a menu with the related actions

Upon press on Android, the FAB can transform into a menu containing related actions. A scrim indicates that functionality outside of the action menu is temporarily disabled. The menu remains on-screen until an action, or the scrim, is tapped.

A FAB transforming into an action menu

Don’t.

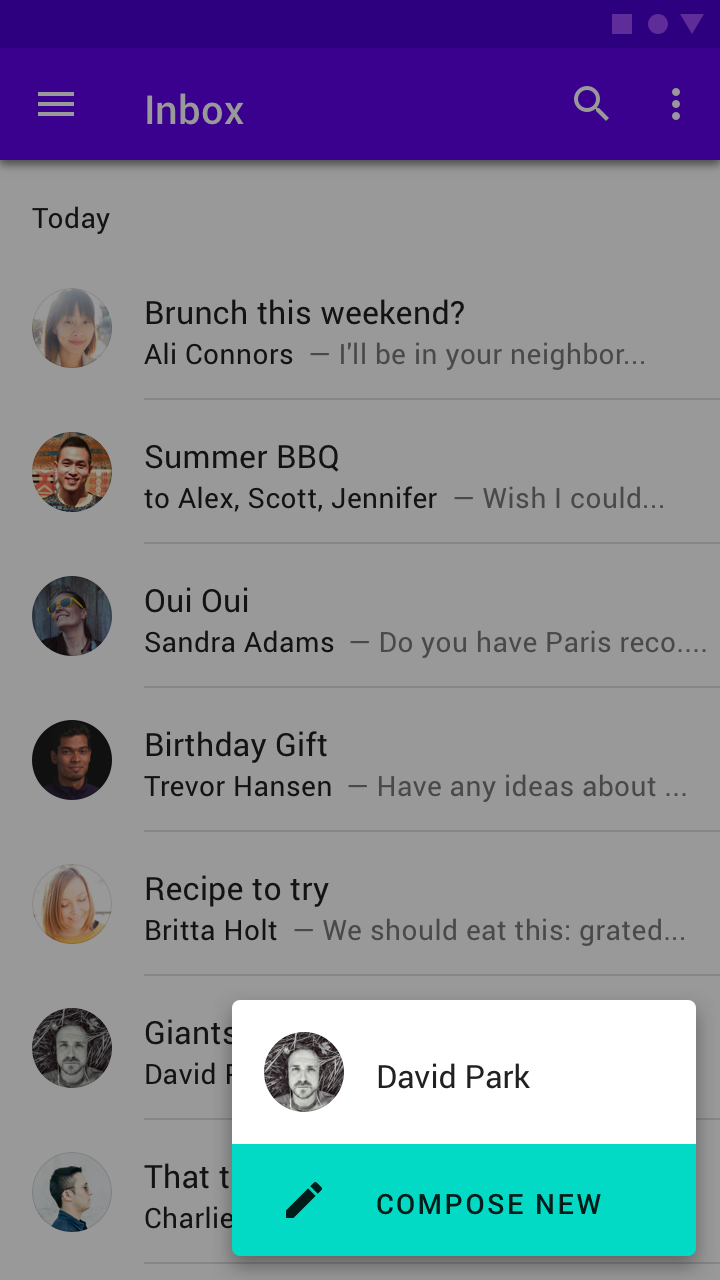

Don’t use an action menu with fewer than three options.

Don’t.

An action menu shouldn’t include more than six options, as action menus don’t support scrolling.

Morph

The FAB can transform into another surface in an app. Morphing should be reversible and transform the new surface back into the FAB.

Read More

The FAB can transform into another surface in an app. Morphing should be reversible and transform the new surface back into the FAB.

A FAB can morph into a surface that is part of the app structure.

Full screen

The FAB can transform into a new surface that spans the entire screen. This type of transformation is typically for creating new content.

Read More

The FAB can transform into a new surface that spans the entire screen. This type of transformation is typically for creating new content.

A FAB can transform into a new surface that spans the entire screen.


Extended FAB

The extended FAB is wider, and it includes a text label.

Extended FAB

Anatomy

The width of a extended FAB’s container can be fixed or fluid. The icon of an extended FAB should intuitively represent its action. The text...

Read More


  1. Container

  2. Icon (optional)

  3. Text label

Container

The width of a extended FAB’s container can be fixed or fluid.

  • A fixed width container is defined by the cumulative width of the icon, text label, and padding.
  • A fluid width container is defined by its relationship to something else on screen, such as screen width or the layout grid.

This fixed extended FAB’s width is defined by the cumulative width of the icon, text label, and container padding.

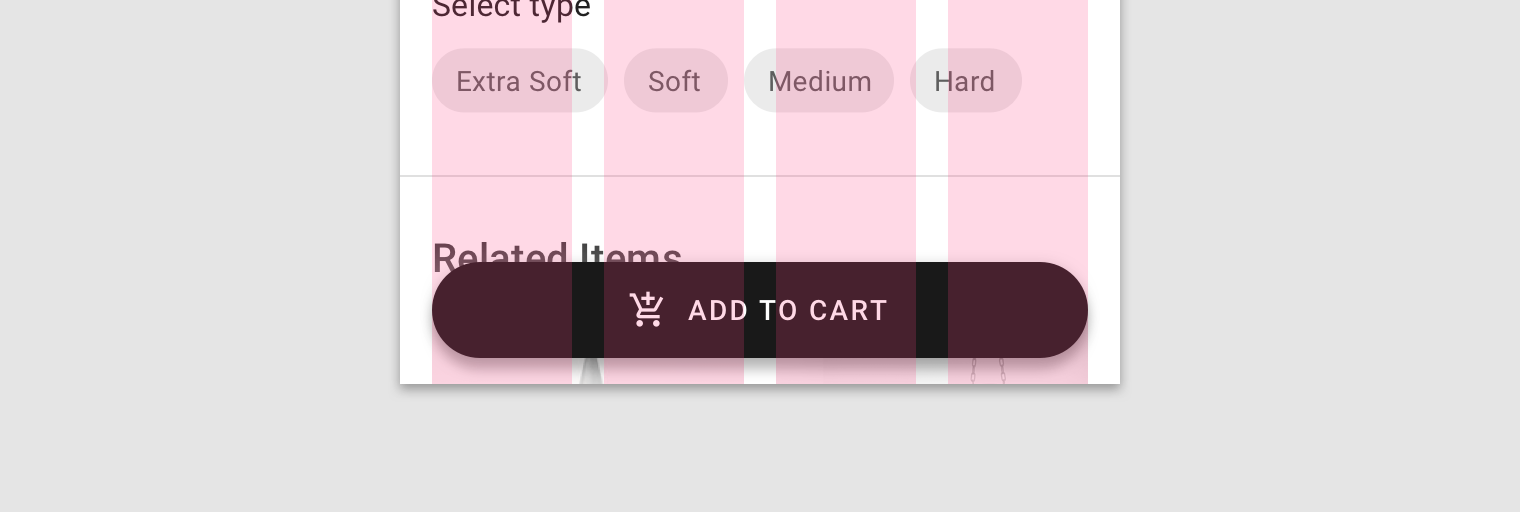

This extended FAB’s container width is defined by the layout grid columns.

Icon

The icon of an extended FAB should intuitively represent its action.

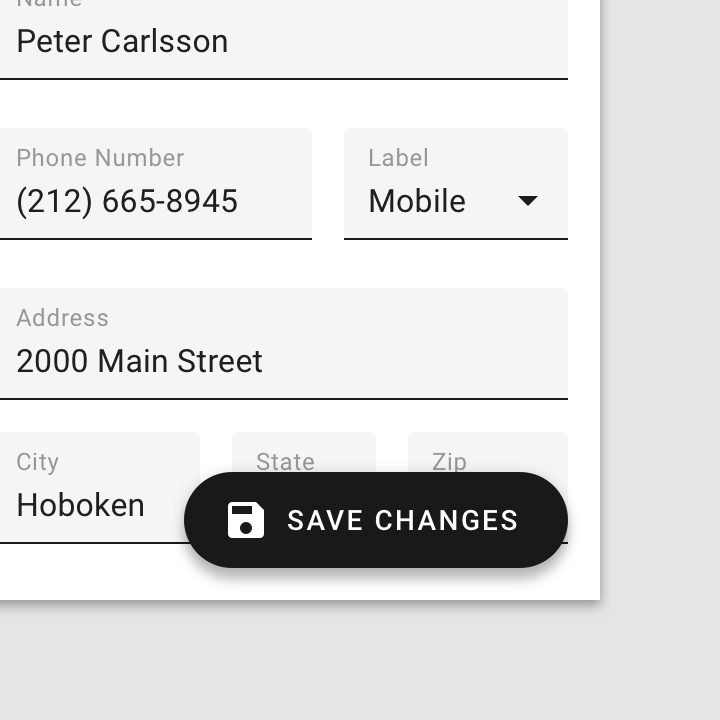

Icons should be placed to the left of text labels for left-to-right languages.

Icons should be placed to the right for right-to-left languages.

Do.

Unlike standard FABs, extended FABs don’t require an icon.

Don’t.

An extended FAB can’t have an icon without a text label.

Text label

The text label of an extended FAB should describe its action.

Caution.

Only truncate text if shorter text isn’t an option.

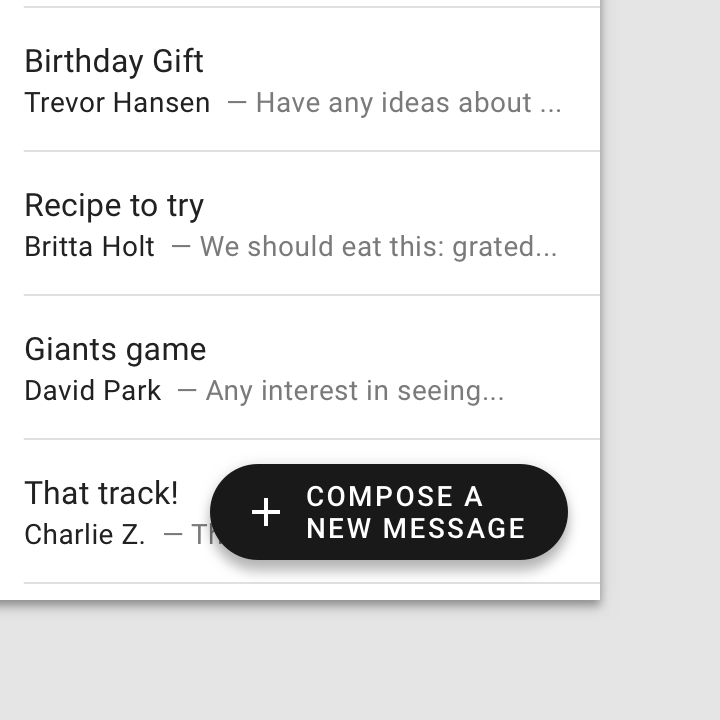

Don’t.

Avoid wrapping text.

Placement

The extended FAB can be positioned in the center, left, or right side of a screen. For UIs larger than 840dp, such as desktop, the...

Read More

The extended FAB can be positioned in the center, left, or right side of a screen.

Desktop and tablet

For UIs larger than 840dp, such as desktop, the extended FAB should be placed at the top left of the screen, or at the bottom right of the screen.

On desktop, the extended FAB placed at the top left

On desktop, the extended FAB placed at the bottom right

Mobile

On mobile, the extended FAB should be placed at the bottom right or bottom center.

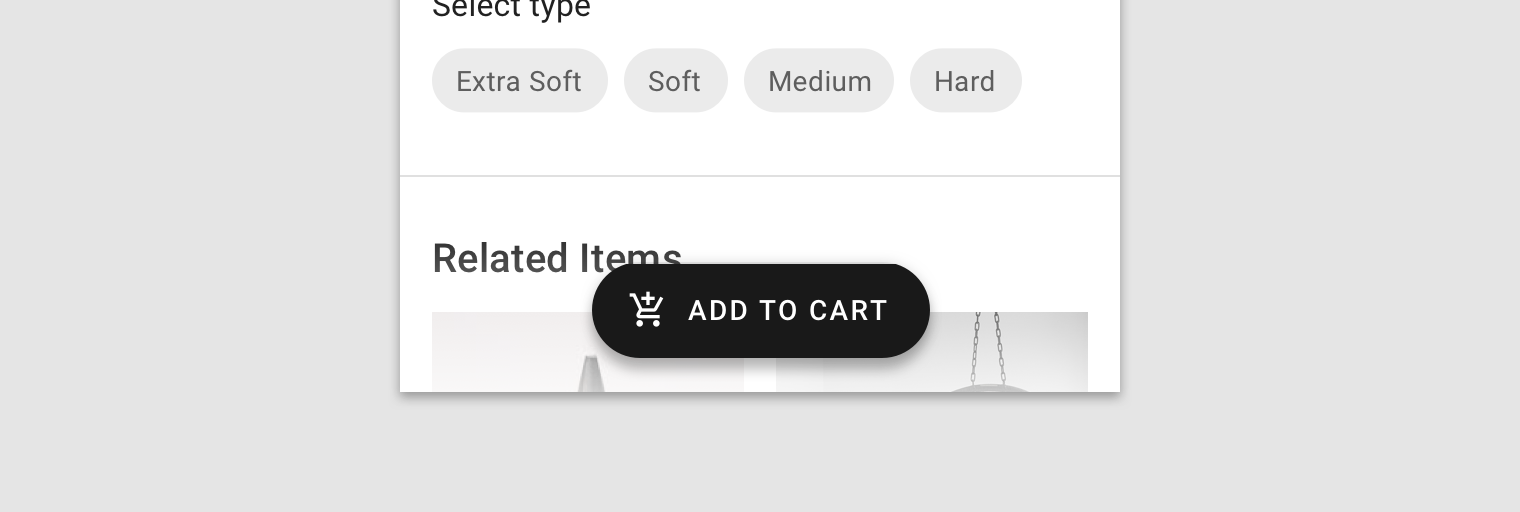

On mobile, the extended FAB placed at the bottom center

On mobile, the extended FAB placed at the bottom right

Caution.

Avoid using an extended FAB above a bottom app bar, as the combination takes up a lot of screen space. If they are paired, the extended FAB should collapse on scroll.

Behavior

Extended FABs have speed dial options, and can transform into standard FABs if space is limited

Read More

Speed dial

The extended FAB can also display a speed dial of 3-6 related actions when tapped. On hover, these related actions expand to display labels.

During the speed dial transition, the extended FAB becomes a standard FAB.

Extended FAB speed dial

Transformation to a standard FAB

If space becomes limited, the extended FAB can transform into a standard FAB. For example, if an app viewport is resized below 840dp, or a navigation drawer opens up.

Extended FAB transforming into a standard FAB

An extended FAB can transform into a standard FAB when a screen is scrolled.

The FAB should not return to an extended FAB until the user scrolls back to the top of the page.

Extended FAB transforming into a standard FAB after the user scrolls to the top of the page


Theming

Reply Material Theme

This email app’s floating action button has been customized using Material Theming. Areas of customization include color and shape. Reply is an email app that...

Read More

This email app’s floating action button has been customized using Material Theming. Areas of customization include color and shape.

Reply’s customized FAB

Color

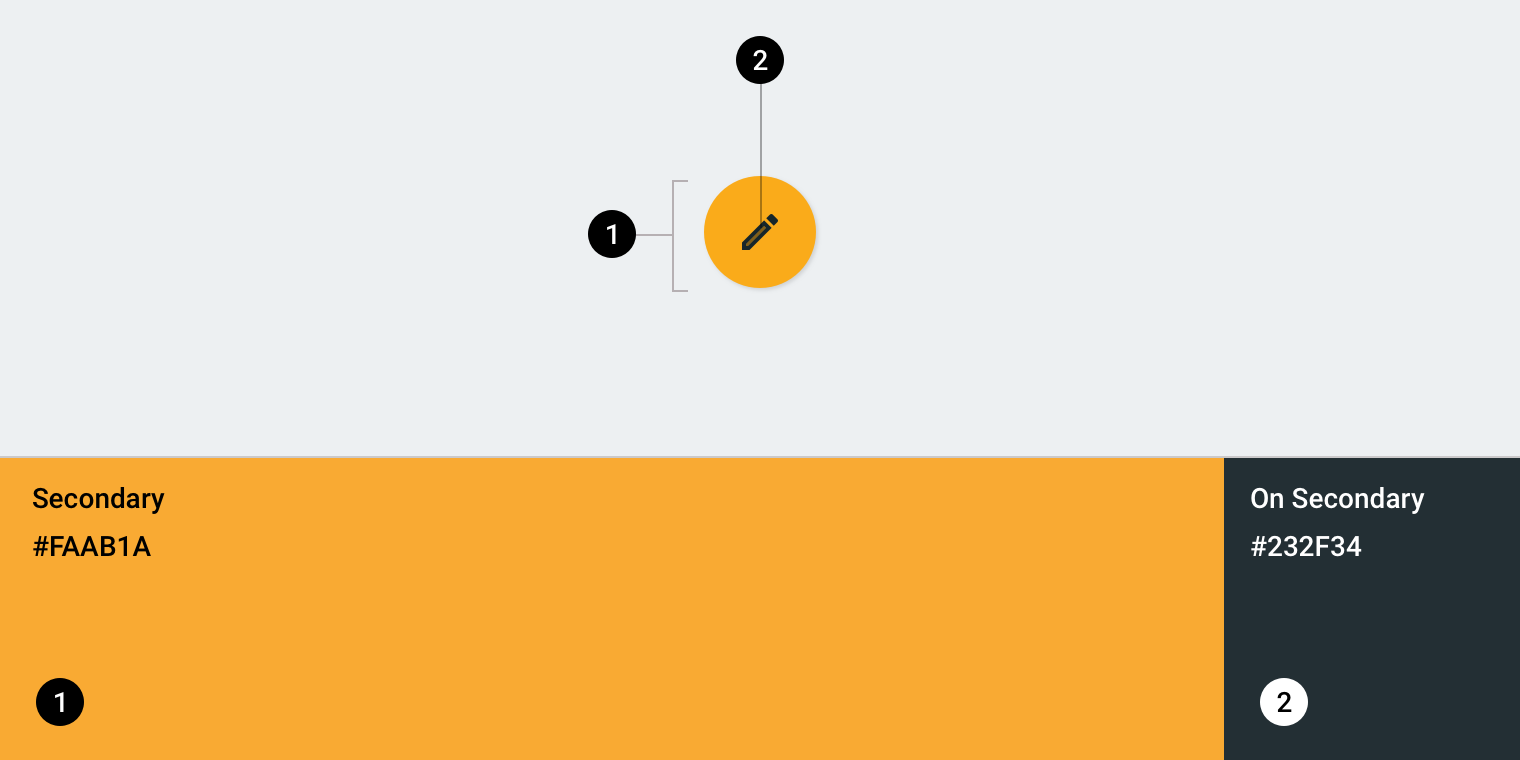

Reply’s FAB uses custom color on two elements: the container and icon.

Element

Category

Attribute

Value

Container

Secondary

Color

Opacity

#FAAB1A

100%

Icon

On Secondary

Color

Opacity

#232F34

100%

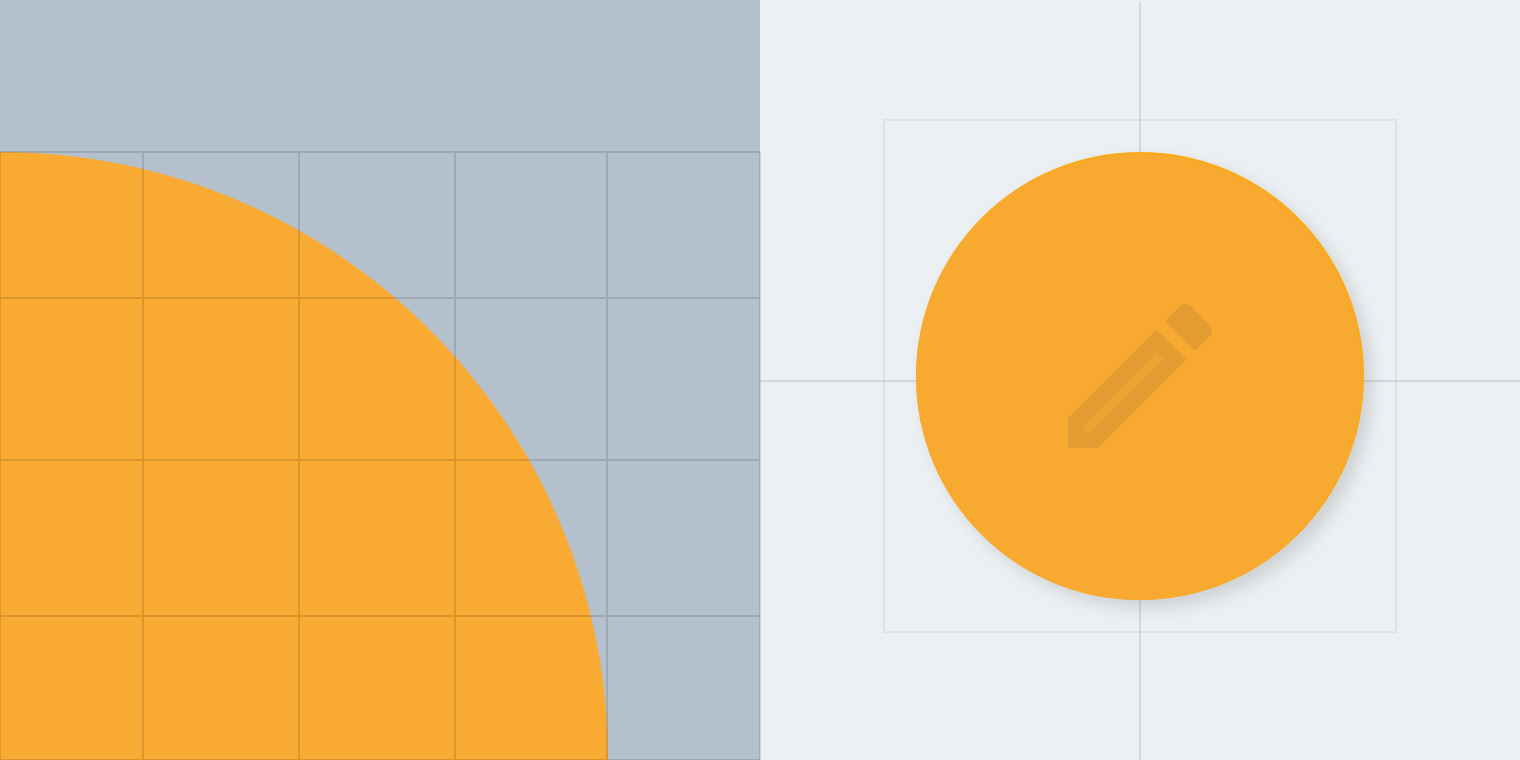

Shape

Reply’s FAB uses a custom shape on the container.

Element

Attribute

Value

Container

Top left corner

Top right corner

Bottom right corner

Bottom left corner

Rounded 28dp

Rounded 28dp

Rounded 28dp

Rounded 28dp

Reply’s extended FAB has customized color, typography, and shape.

Reply’s customized FAB

Color

Reply’s extended FAB uses custom color on two elements: the container, icon, and text.

Element

Category

Attribute

Value

Container

Secondary

Color

Opacity

#FAAB1A

100%

Icon

On Secondary

Color

Opacity

#232F34

100%

Text

On Secondary

Color

Opacity

#232F34

100%

Typography

Reply’s extended FAB uses custom typography on its button text.

Element

Category

Attribute

Value

Text

Button

Typeface

Font

Size

Case

Work Sans

ExtraBold

15

All caps

Shape

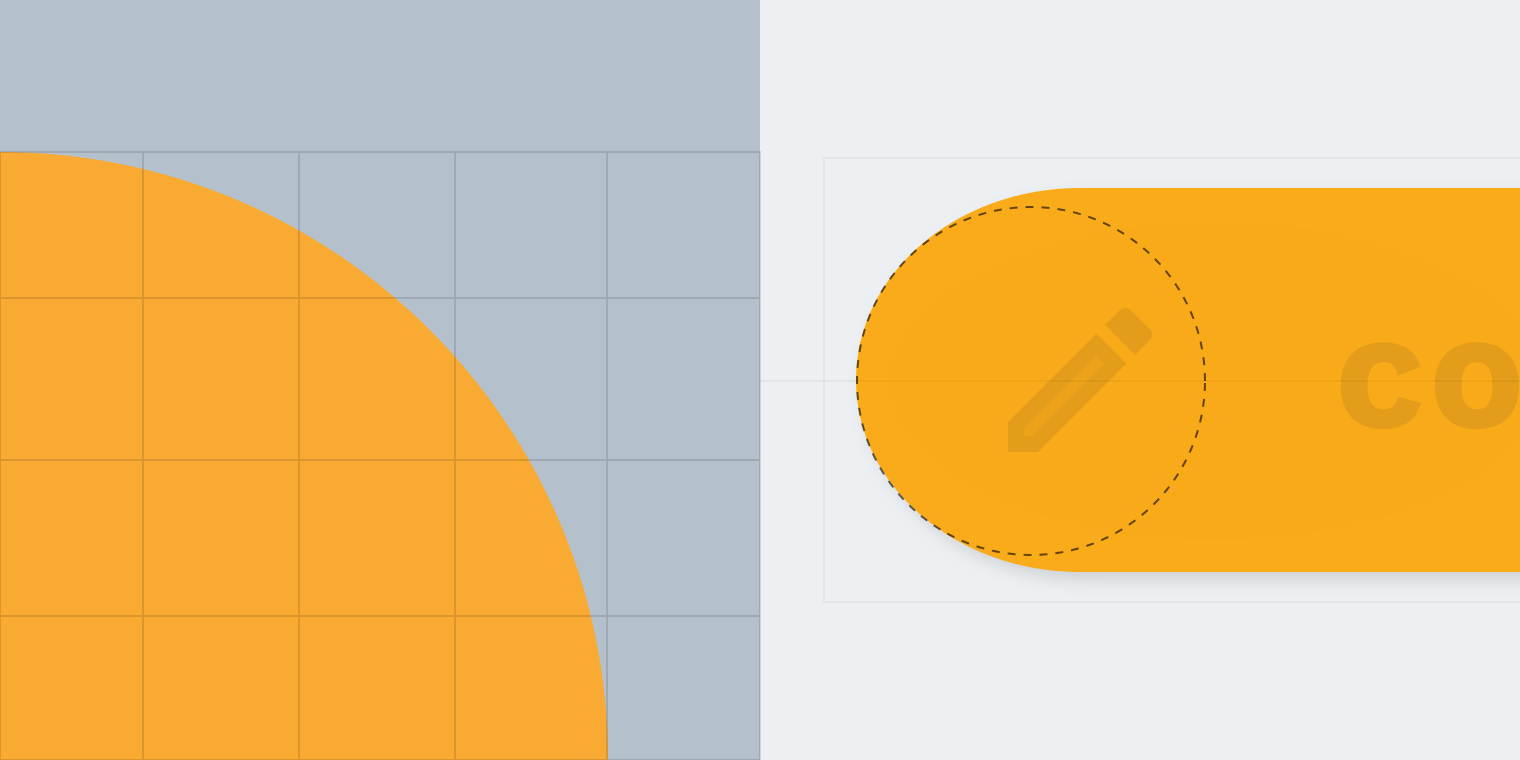

Reply’s extended FAB uses a custom shape on its container.

Element

Attribute

Value

Container

Top left corner

Top right corner

Bottom right corner

Bottom left corner

Rounded 28dp

Rounded 28dp

Rounded 28dp

Rounded 28dp

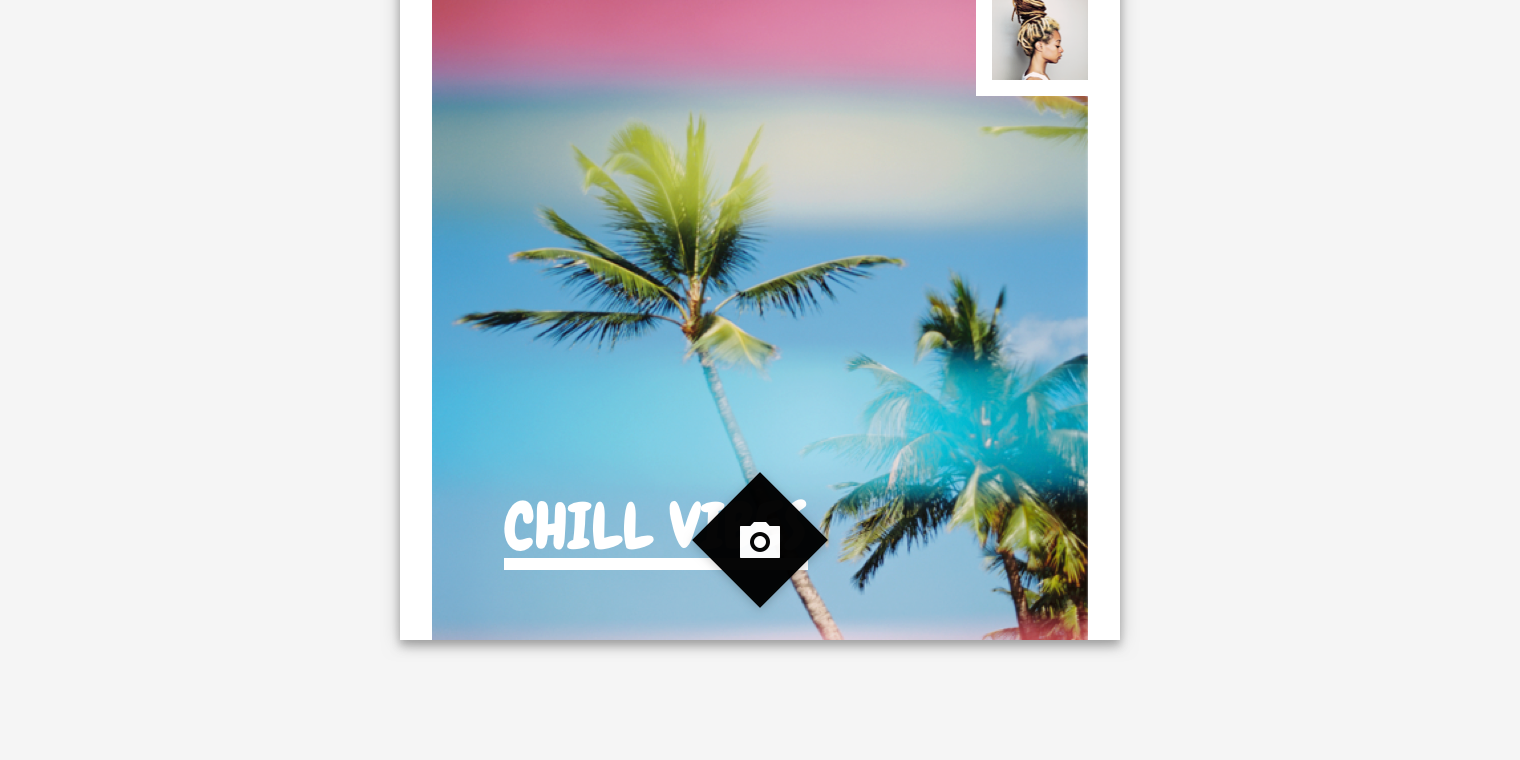

Posivibes Material Theme

This social media app’s floating action button has been customized using Material Theming. Areas of customization include color and shape. The Material Design color system...

Read More

This social media app’s floating action button has been customized using Material Theming. Areas of customization include color and shape.

Posivibe’s customized FAB

Color

Posivibe’s FAB uses custom color on two elements: the container and icon.

Element

Category

Attribute

Value

Container

Secondary

Color

Opacity

#000000

100%

Icon

On Secondary

Color

Opacity

#FFFFFF

100%

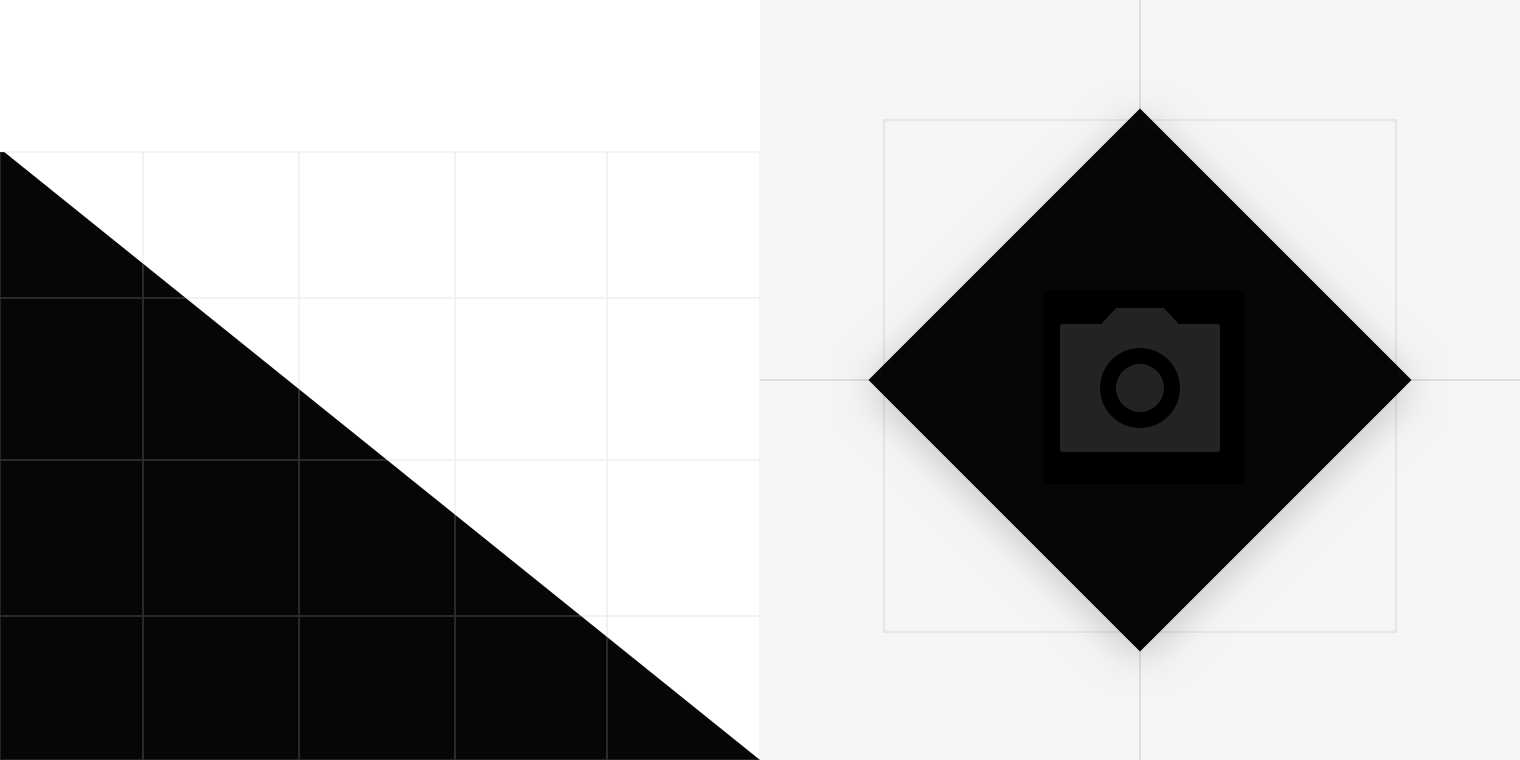

Shape

Posivibe’s FAB uses a custom shape on its container.

Element

Attribute

Value

Container

Top left corner

Top right corner

Bottom right corner

Bottom left corner

Cut 34dp

Cut 34dp

Cut 34dp

Cut 34dp

Shrine Material Theme

This retail app’s extended floating action button has been customized using Material Theming. Areas of customization include color, typography, and shape. The Material Design color...

Read More

This retail app’s extended floating action button has been customized using Material Theming. Areas of customization include color, typography, and shape.

Shrine’s customized FAB

Color

Shrine’s extended FAB uses custom color on two elements: the container and text.

Element

Category

Attribute

Value

Container

Primary

Color

Opacity

#FEDBD0

100%

Text

On Primary

Color

Opacity

#442C2E

100%

Typography

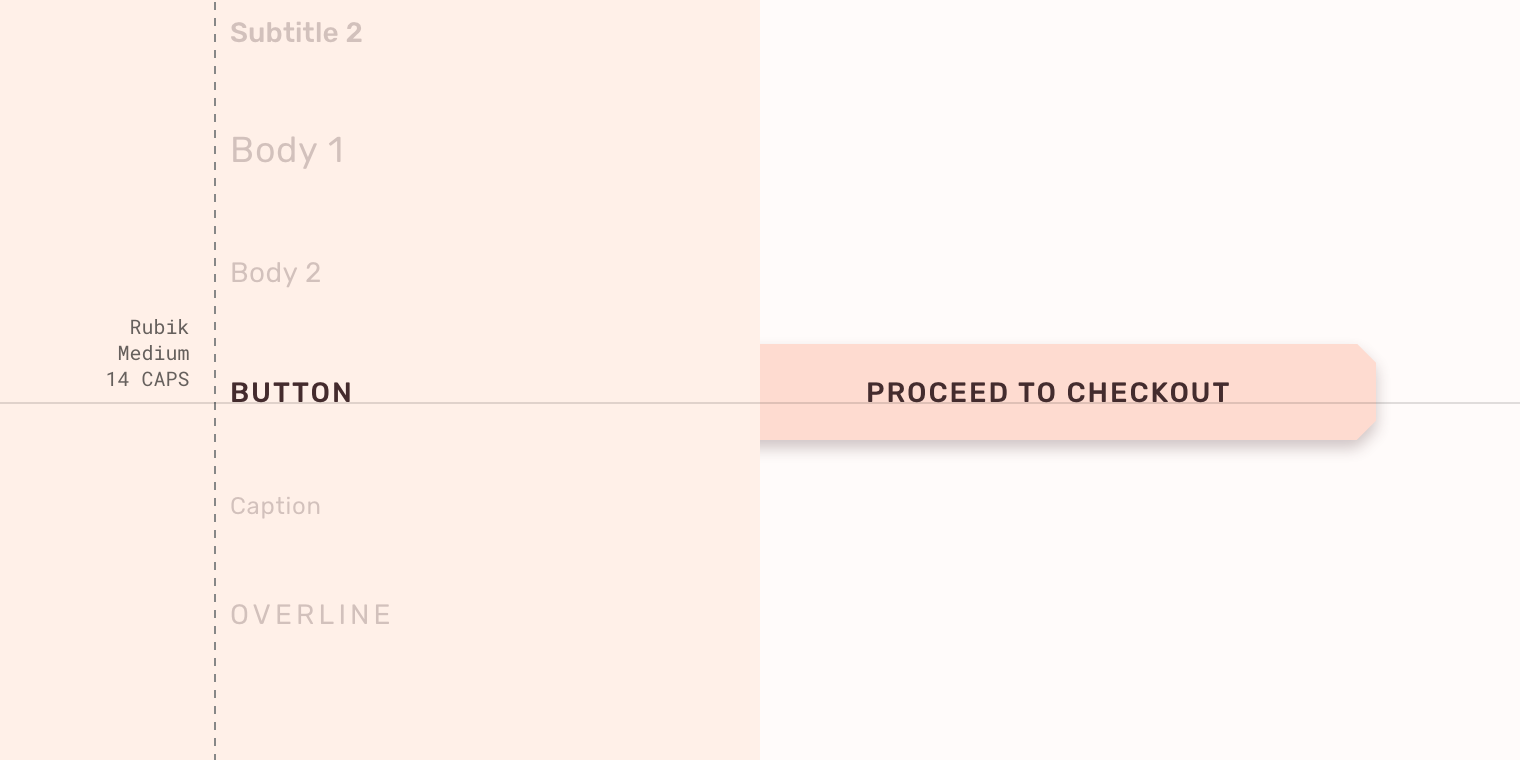

Shrine’s extended FAB uses custom typography on its button text.

Element

Category

Attribute

Value

Text

Button

Typeface

Font

Size

Case

Rubik

Medium

14

All caps

Shape

Shrine’s extended FAB uses a custom shape on its container.

Element

Attribute

Value

Container

Top left corner

Top right corner

Bottom right corner

Bottom left corner

Cut 8dp

Cut 8dp

Cut 8dp

Cut 8dp


Specs

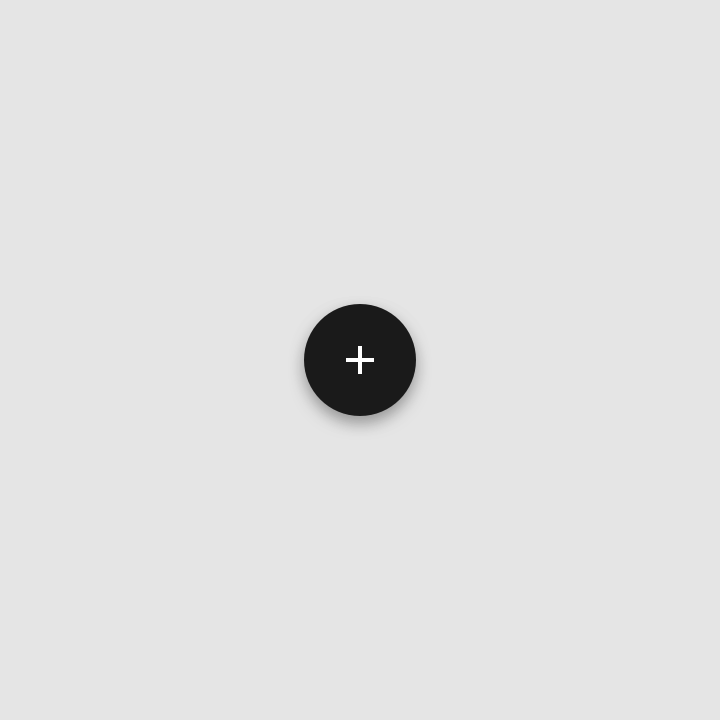

Floating action button

#000000ff R0 G0 B0 A1.00 Elevation 6dp All corners Rounded: 28dp All measurements are displayed in device-independent pixels (dps) #000000ff R0 G0 B0 A1.00 Elevation...

Read More

Regular

  • Measurement 56
  • Measurement 16
  • Measurement 16
  • Measurement C
  • Measurement 24

Mini FAB

  • Measurement 40
  • Measurement 8
  • Measurement 8
  • Measurement C
  • Measurement 24

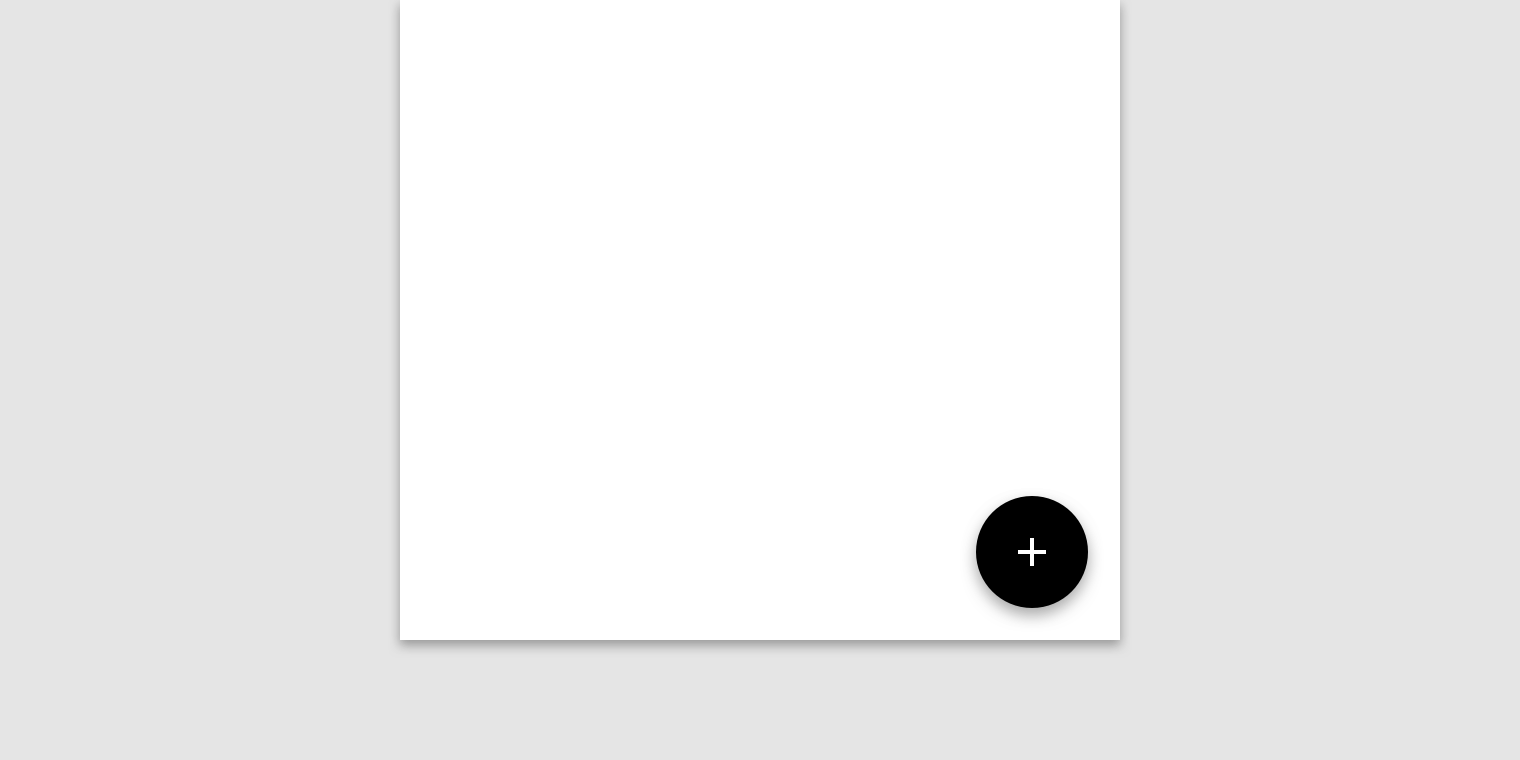

Placement

  • Measurement 16
  • Measurement 16

Extended floating action button

14dp #ffffff #000000ff R0 G0 B0 A1.00 Elevation 6dp All corners Rounded: 32dp All measurements are displayed in device-independent pixels (dps) Elevation 6dp All corners...

Read More
  • Measurement 48
  • Measurement 12
  • Measurement 12
  • Measurement 20
  • Measurement C
  • Measurement 24

Placement

  • Measurement 8

Implementation

Floating action buttons and extended floating action buttons implementation support for each platform is indicated below.

Floating Action Buttons

Status: Code Available Status: Code Available Status: Code Available Status: Code Available

Read More

Android Material Component

Status: Code Available

IOS Material Component

Status: Code Available

Flutter Material Component

Status: Code Available

Web Material Component

Status: Code Available

Extended Floating Action Buttons

Status: Planned Status: Code Available Status: Code Available Status: Under Development

Read More

IOS Material Component

Status: Code Available

Flutter Material Component

Status: Code Available

Web Material Component

Status: Under Development
