Object Detection: Live Camera

A device’s live camera can be used to detect objects in an environment using machine learning.


Usage

The live feed of a camera can be used to identify objects in the physical world. Using the “streaming” mode of ML Kit’s Object Detection & Tracking API, a camera feed can detect objects and use them as input to perform a visual search (a search query that uses an image as input) with your app’s own image classification model.

Searching with a live camera can help users learn more about objects around them, whether it’s an artifact at a museum or an item for purchase.

These guidelines cover the detection of a single object at a time.

Visual search in a live camera can help users identify objects around them, such as a plant species.

Principles

Design for this feature is based on the following principles: Instead of typing a search term, the device camera is used as a “remote control”...

Read More

Design for this feature is based on the following principles:

Navigate with a device camera

Instead of typing a search term, the device camera is used as a “remote control” to search for visual content.

To educate users about how to search with their camera, provide onboarding and persistent instructions.

A brief, animated onboarding experience can help users understand how to move and position their device camera to search.

Keep the camera clear and legible

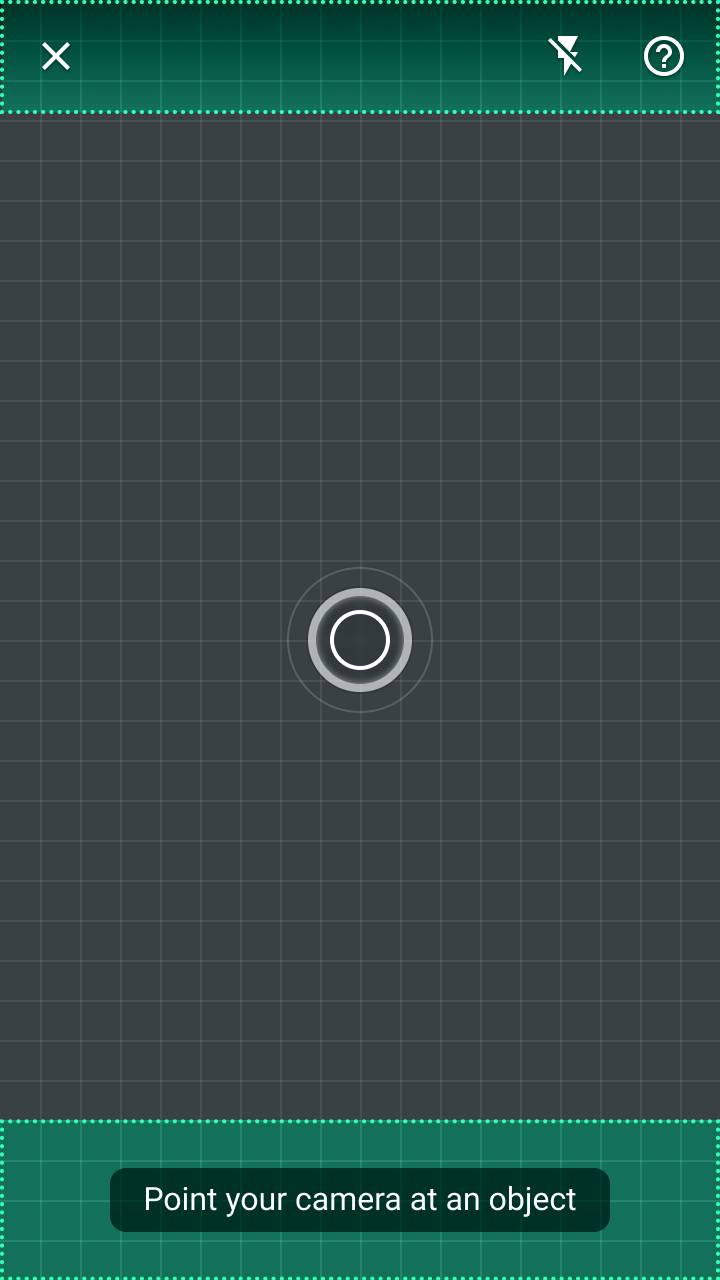

To maximize the camera’s viewable area, align the app’s UI components to the top and bottom edges of the screen, ensuring that text and icons remain legible when placed in front of the camera’s live feed.

Any non-actionable elements displayed in front of the live camera feed should be translucent to minimize obstructing the camera.

Most elements are intentionally placed along the top and bottom edges of the screen to maximize viewing the camera’s feed.

Provide feedback

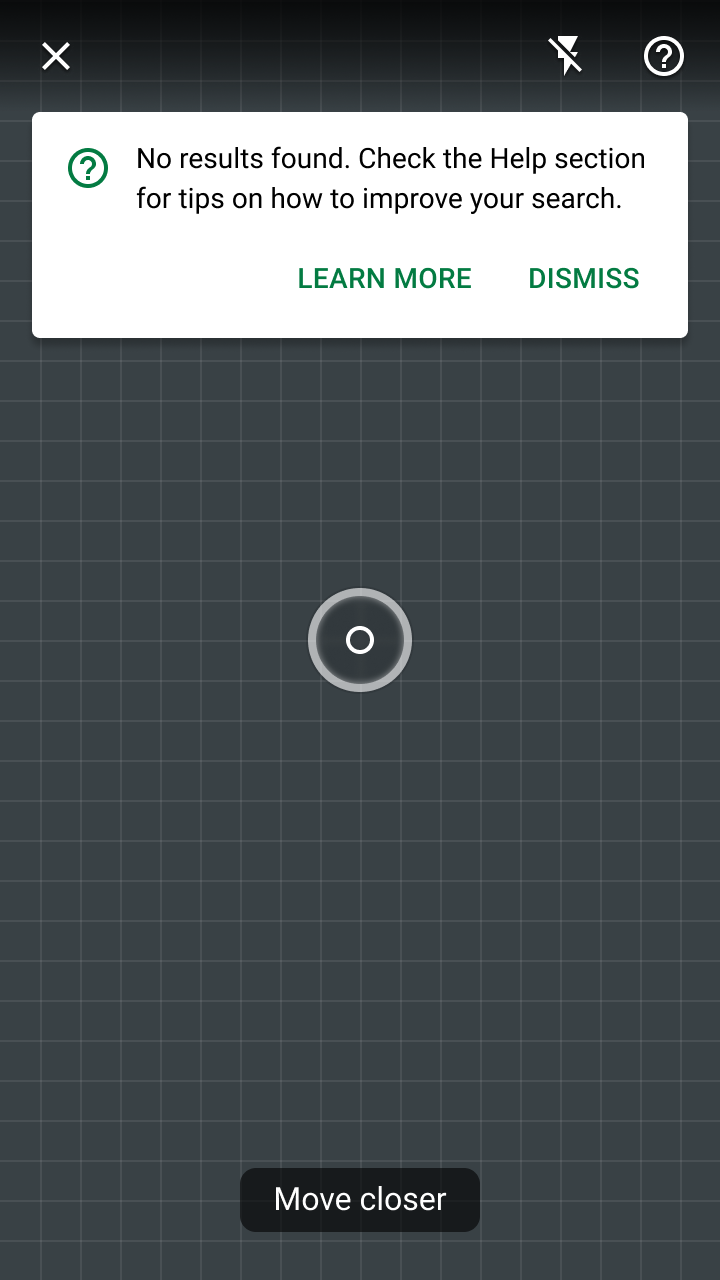

Using a camera as a search tool introduces unique usage requirements. Image quality needs to be adequate, and users need to be aware of how to fix image issues caused by lighting or too much distance from an object.

Error states should:

  • Indicate errors using multiple design cues (such as components and motion)
  • Include explanations of how users can improve their search

Banners provide a prominent way to let users know something went wrong with their search, and space to link to a Help section for more information.


Components

The live camera object detection feature uses both existing Material Design components and new elements specific to camera interaction. For code samples and demos of new elements (such as the reticle), check out the ML Kit Material Design showcase apps’ source code for Android and iOS.

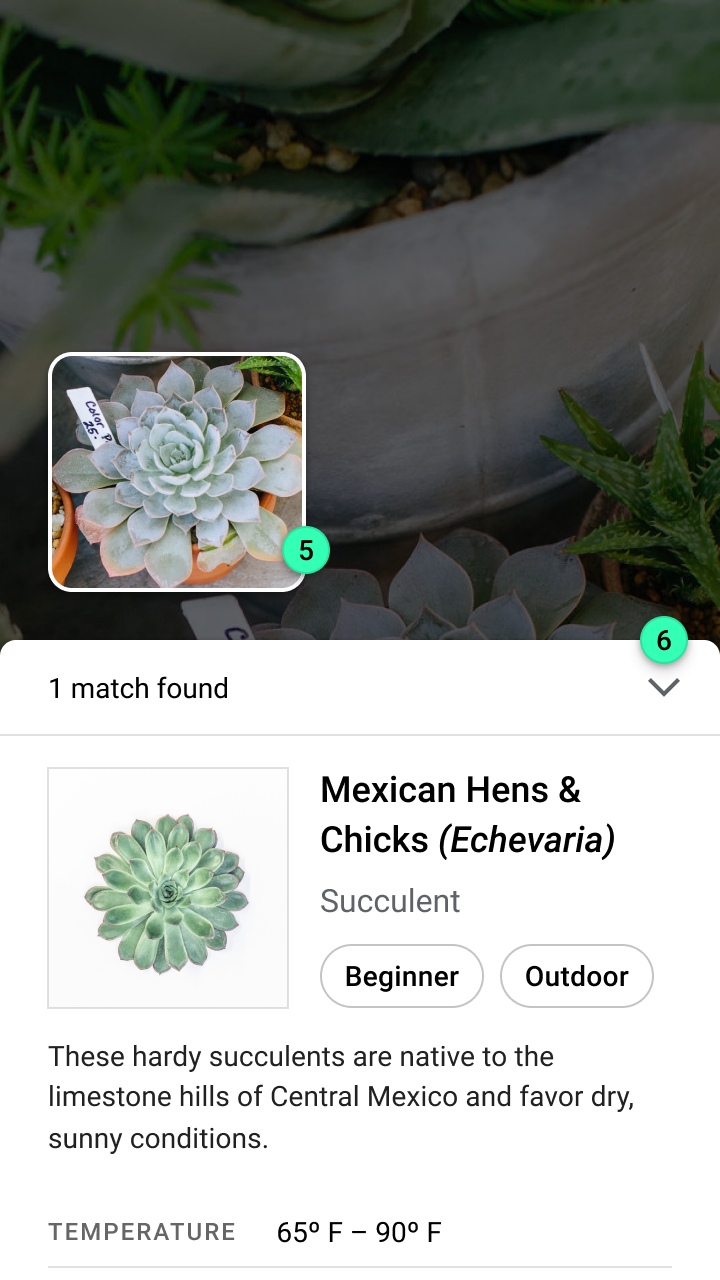

Key elements across the stages of a live camera visual search experience:

1. Top app bar
2. Reticle
3. Object marker
4. Tooltip
5. Detected image
6. Modal bottom sheet




Top App Bar

The top app bar displays information and actions relating to the current view. Related Link arrow_downward The top app bar provides persistent access to the...

Read More

The top app bar provides persistent access to the following actions:

  • A button to exit the search experience
  • A toggle to improve brightness (using the camera’s flash)
  • A Help section for troubleshooting search issues

Do.

Use a gradient scrim or solid color for the top app bar’s container to ensure its actions are legible over a camera feed.

Reticle

The reticle is a visual indicator that provides a target for users to focus on when detecting objects with a camera (its name is inspired...

Read More

The reticle is a visual indicator that provides a target for users to focus on when detecting objects with a camera (its name is inspired by camera viewfinders). It uses a pulsing animation to inform the user when the camera is actively looking for objects.

When the live camera is pointed at an object, the reticle transforms into a determinate progress indicator to indicate that a visual search has begun.

The reticle should have different designs and animation effects to communicate key app states, such as when the camera is looking for objects or when an error has occurred.

States of the reticle:

1. Sensing uses a pulsing animation to indicate the app is looking for objects
2. Starting a search happens after a preset delay (set by the developer), expressed with a determinate progress indicator
3. The need to move closer to an object is expressed through the reticle’s center circle shrinking in size until the minimum detected size is reached
4. Any detected errors change the reticle’s border from a continuous stroke to dotted stroke


Object marker

ML Kit’s Object Detection & Tracking API contains an option to detect a “prominent object.” This option detects and tracks the single largest object near...

Read More

ML Kit’s Object Detection & Tracking API contains an option to detect a “prominent object.” This option detects and tracks the single largest object near the center of the camera. Once detected, you should mark the object with a continuous rectangular border.

If your app requires a minimum image size for detected objects, the object marker should change to show a partial rectangular border (displaying only the border’s corners). This expresses that an object has been detected but cannot be searched until the user moves closer.

A partial border and tooltip message can inform users that an object has been detected and that they must move closer to begin their search.

Tooltip

Tooltips display informative text when users hover over, focus on, or tap an element. Related Link arrow_downward Tooltips display informative text to users. They express...

Read More

Tooltips display informative text to users. They express both states (such as with a message that says “Searching…”) and prompt the user to the next step (such as a message that says, “Point your camera at a plant”).

Do.

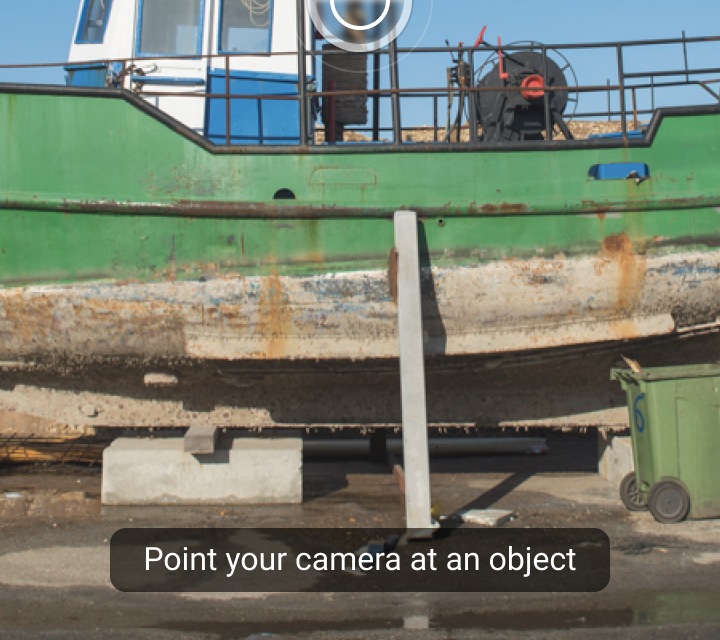

Write short tooltips using terms appropriate for your audience.

Don’t.

Don’t write tooltips with action verbs, such as “Tap to search,” as tooltips are not actionable.

Don’t.

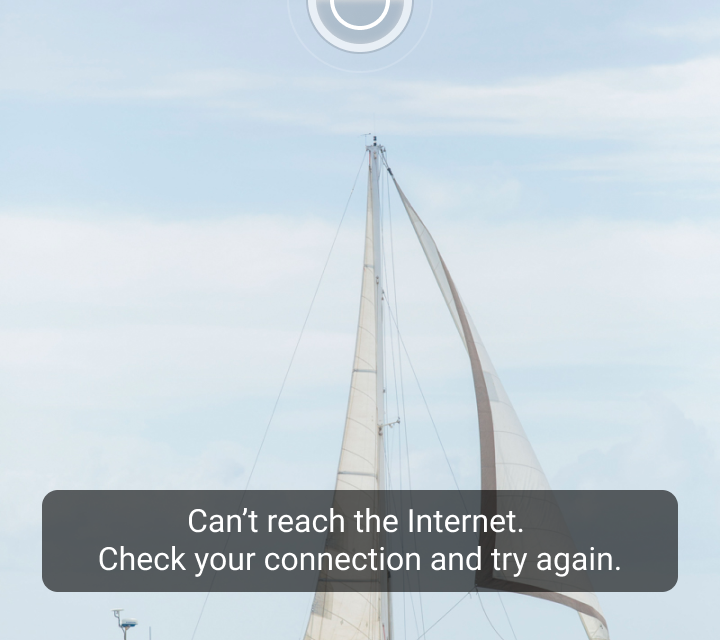

Don’t place error messages in a tooltip. Errors should be placed in a banner for increased emphasis and to provide space for displaying actions.

Detected image

Upon detecting an object, ML Kit’s Object Detection & Tracking API creates a cropped version of the image, which is used to run a visual...

Read More

Upon detecting an object, ML Kit’s Object Detection & Tracking API creates a cropped version of the image, which is used to run a visual search using your image classification model.

The cropped image is displayed to:

  • Confirm the object detected
  • Compare to images of search results
  • Explain any errors related to the image (such as if it’s low quality or contains multiple objects)

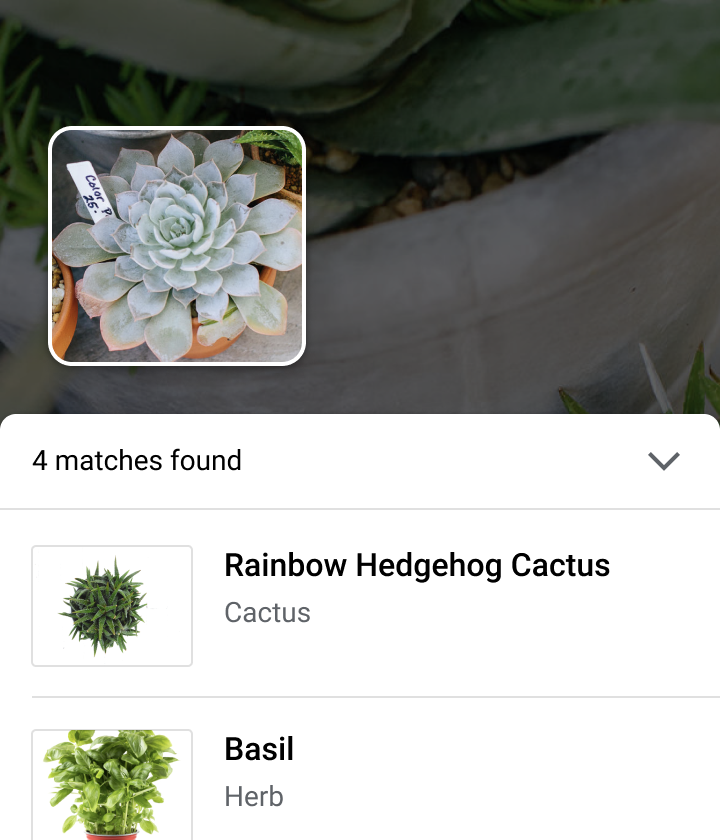

Placing a thumbnail of the detected object image near search results can help users identify the best match.

Modal bottom sheet

Bottom sheets are surfaces containing supplementary content that are anchored to the bottom of the screen. Related Link arrow_downward Modal bottom sheets provide access to...

Read More

Modal bottom sheets provide access to visual search results. Their layout and content depend on your app’s use case, the number of results, and the confidence level of those results.

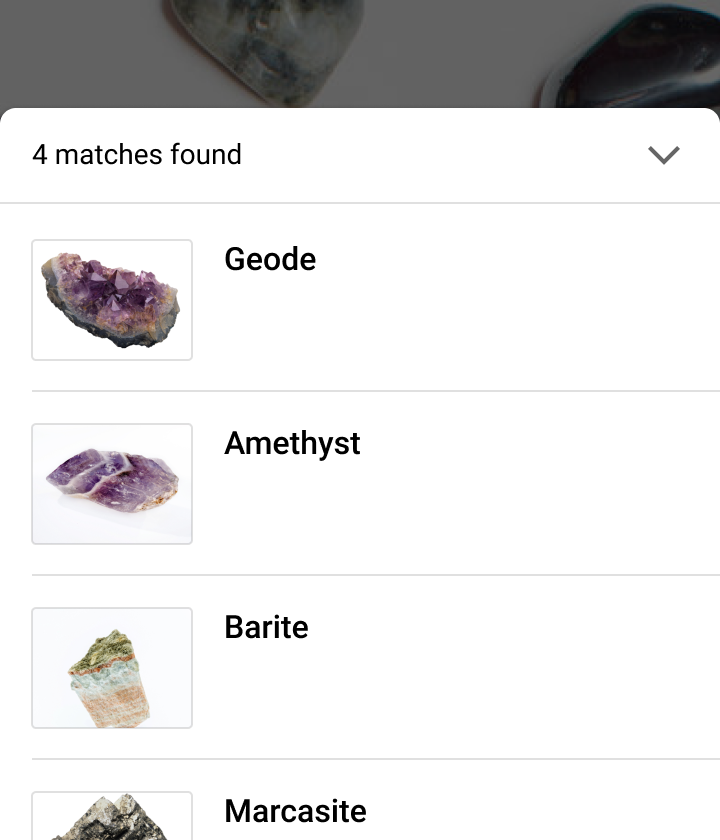

In a modal bottom sheet, lists or image grids can display multiple visual search results. The sheet can be opened to the full height of the screen to view additional results.

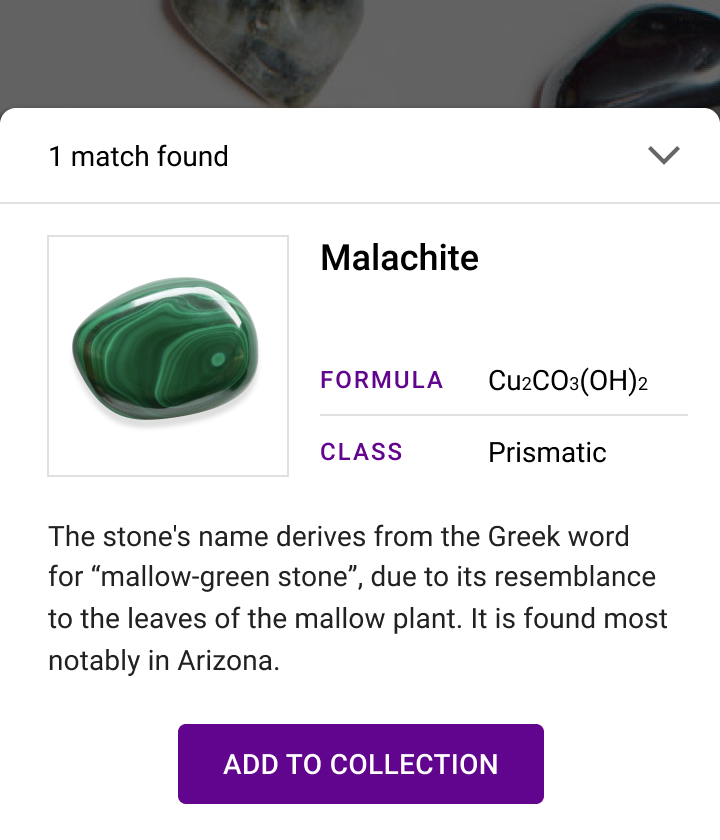

A modal bottom sheet can display a single result, adapting its layout to the content.


Experience

Live camera visual search happens in three phases:

  1. Sense: Use the camera to look for input
  2. Recognize: Detect and identify an object
  3. Communicate: If a matching object is found, communicate that to the user

Sense

AI-powered systems can adapt over time. Prepare users for change—and help them understand how to train the system. Related Link arrow_downward Object detection begins when...

Read More

Object detection begins when the visual search feature is opened. “Sensing” refers to the camera looking for objects in the live camera feed. During this phase, the app should:

  • Describe how the feature works
  • Communicate the app’s actions
  • Guide how the user controls the camera and suggest adjustments

Describe how the feature works

Provide users with instructions for using the camera as a “remote control” to search for objects in the environment, describing the experience through onboarding and help content.

Do.

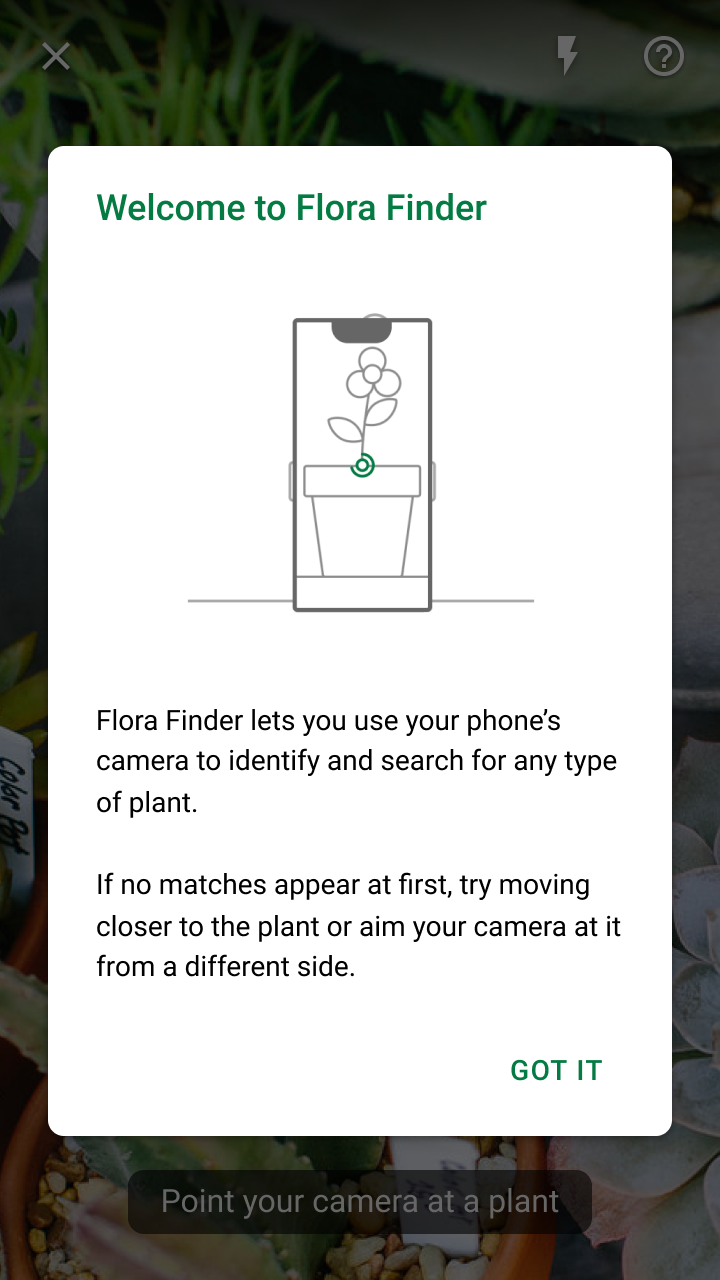

Explain the interaction with a one-screen onboarding experience. Animation is recommended to demonstrate to a user how to move their device.

Don’t.

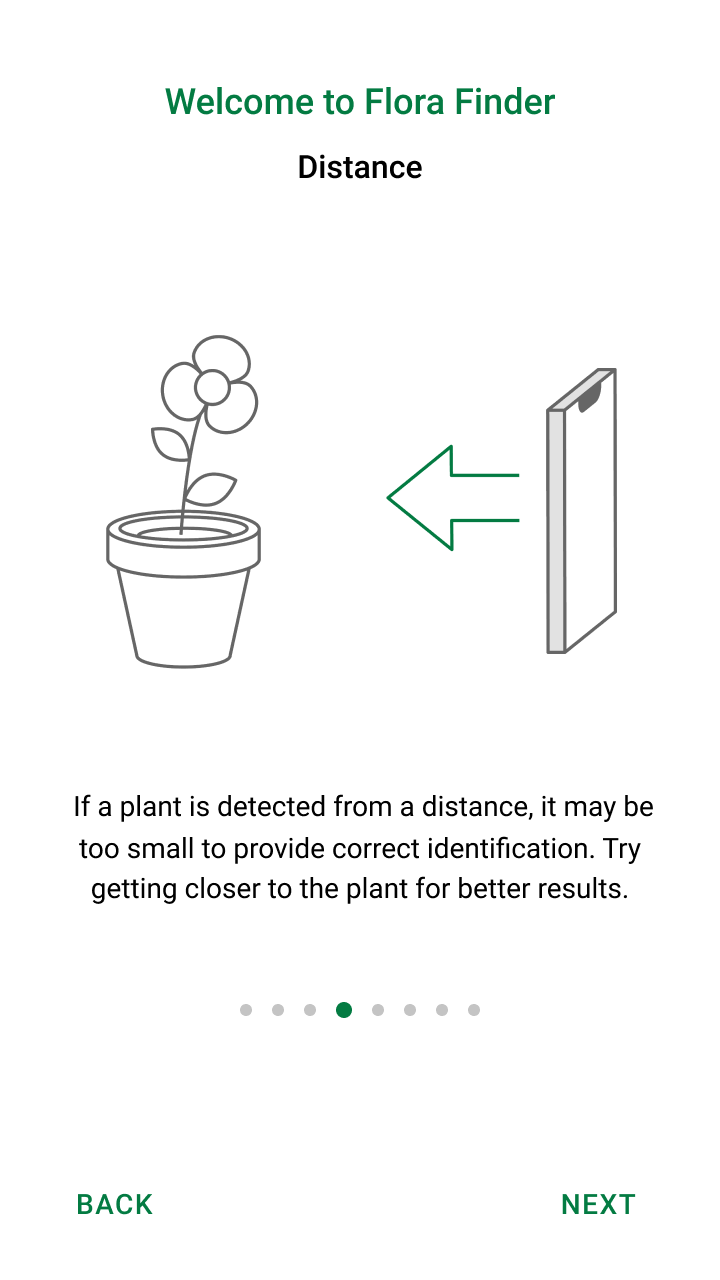

Don’t require a lengthy onboarding process that describes every possible error state. Wait to provide further information until the user encounters an issue.

Do.

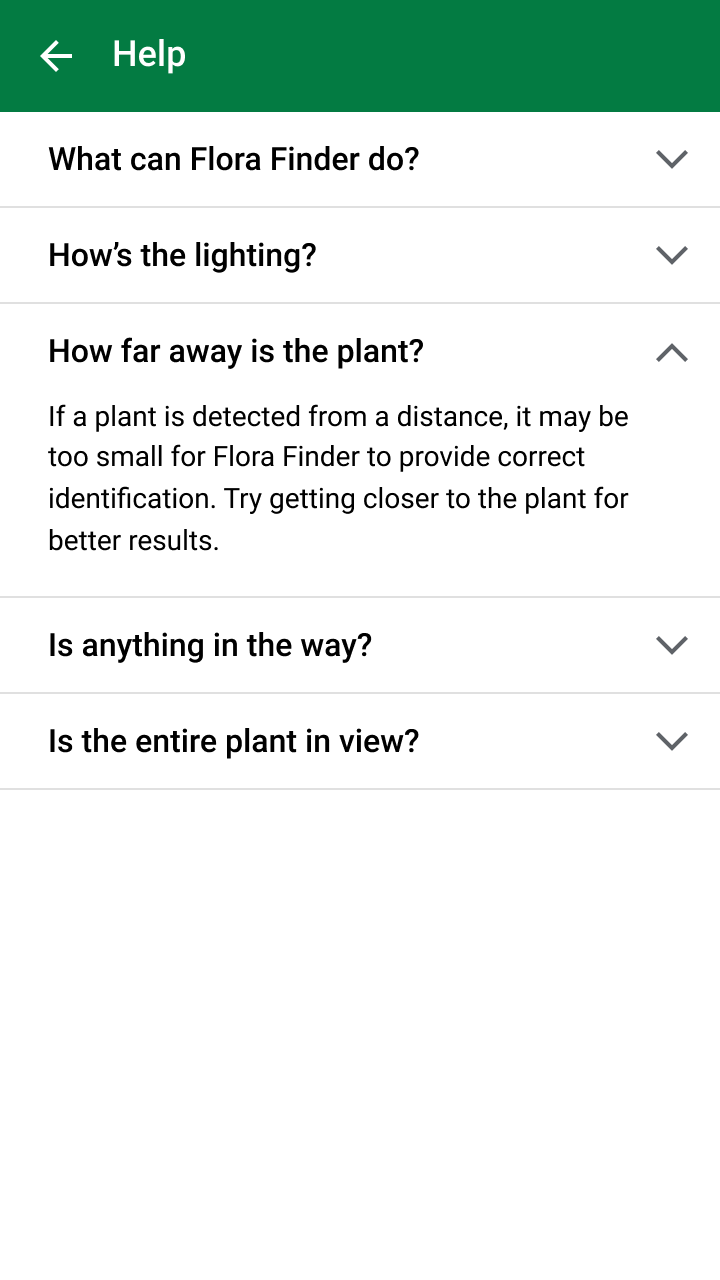

Have a dedicated Help section with information that includes the kinds of objects that can be detected, how to get the best results, and how images are used.

Communicate the app’s actions

While the camera searches, the reticle pulses to indicate the camera is “looking” and a tooltip prompts the user to point the camera at objects.

Do.

Give the user cues, such as an animated reticle and tooltip, to indicate how this UI differs from using the camera to take a photo.

Guide adjustments

Sometimes environmental conditions make it difficult to detect an object, such as locations that:

  • Are too bright or dark to identify an object against its background
  • Have overlapping objects that are difficult to distinguish from one another

If significant time has passed before an object has been detected, stop the reticle animation and direct the user to help documentation.

If a detection timeout is triggered, let users know something is wrong: stop the reticle animation and emphasize Help content.

Recognize

When an object has been detected by the camera, the app should: To indicate when the camera has found an object, stop the reticle’s animation...

Read More

When an object has been detected by the camera, the app should:

  • Mark the detected object
  • Display a prompt for the user to start a search
  • Display search progress

Identify the detected object

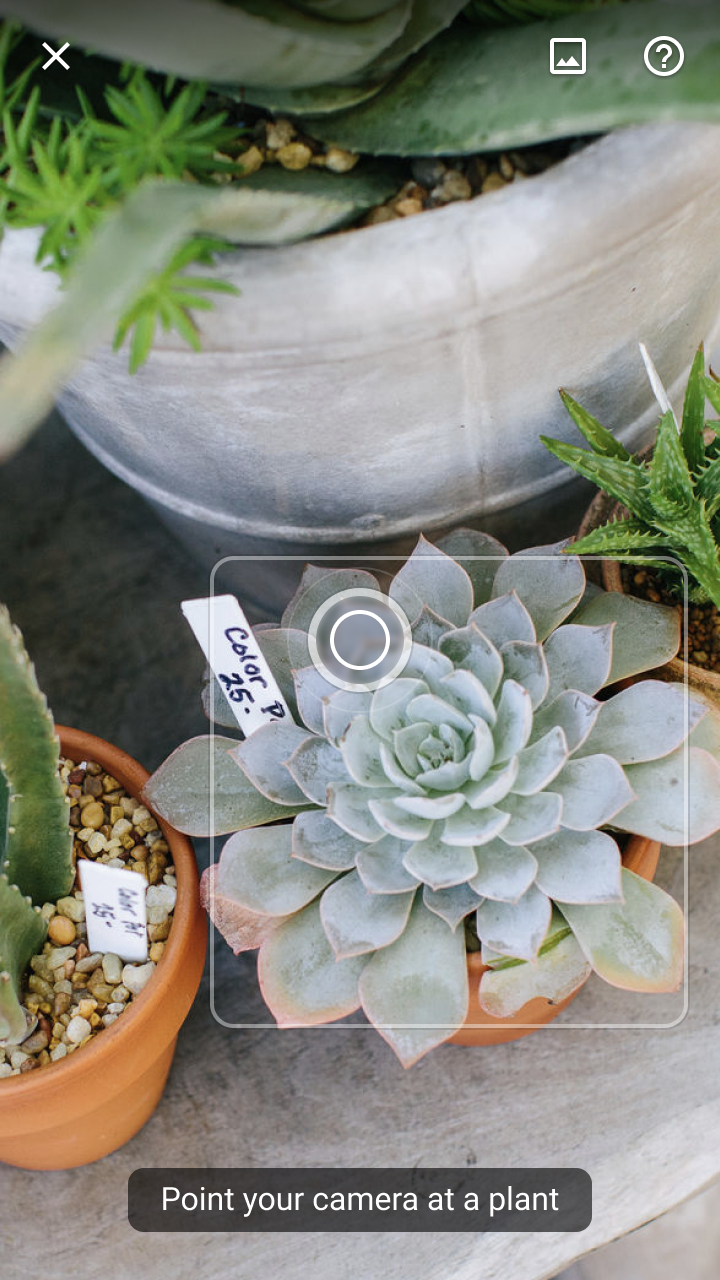

To indicate when the camera has found an object, stop the reticle’s animation and mark the detected object with a border.

A rectangular border appears around a detected object to indicate that an object has been recognized.

Prompt to search

Instruct the user to keep the detected object in the center of the camera. Before starting the search, add a short time delay, accompanied by a determinate progress indicator in the reticle. This gives the user time to either:

  • Confirm intent to search (users keep the device camera still)
  • Cancel the search (users move the camera away from the object)

You can customize the length of the delay.

A delay allows users to cancel a search if needed.

Display search progress

Once a search begins, object detection stops and the live camera feed pauses. This prevents new searches (and allows the user to shift their device to a more comfortable position).

Search progress is indicated by an indeterminate progress indicator and tooltip message.

Multiple design cues (motion, scrim, and text) are used to indicate the search has begun and users should wait for results to load.

Make corrections

During the recognition stage, two issues can affect search result quality:

Small image size: If a detected object is too far from the camera, it won’t produce a high-quality image (determined by what you’ve set as your minimum image size).

To indicate that detection isn’t finished, display a partial border around the object (instead of a complete border) and show a tooltip message to prompt the user to move closer.

A partial border and tooltip message can inform users that an object has been detected and that they must move closer to begin their search.

Network connection: A stable network connection is required if your image classification model is in the cloud. If the internet connection fails, display a banner indicating that they need an internet connection to proceed.

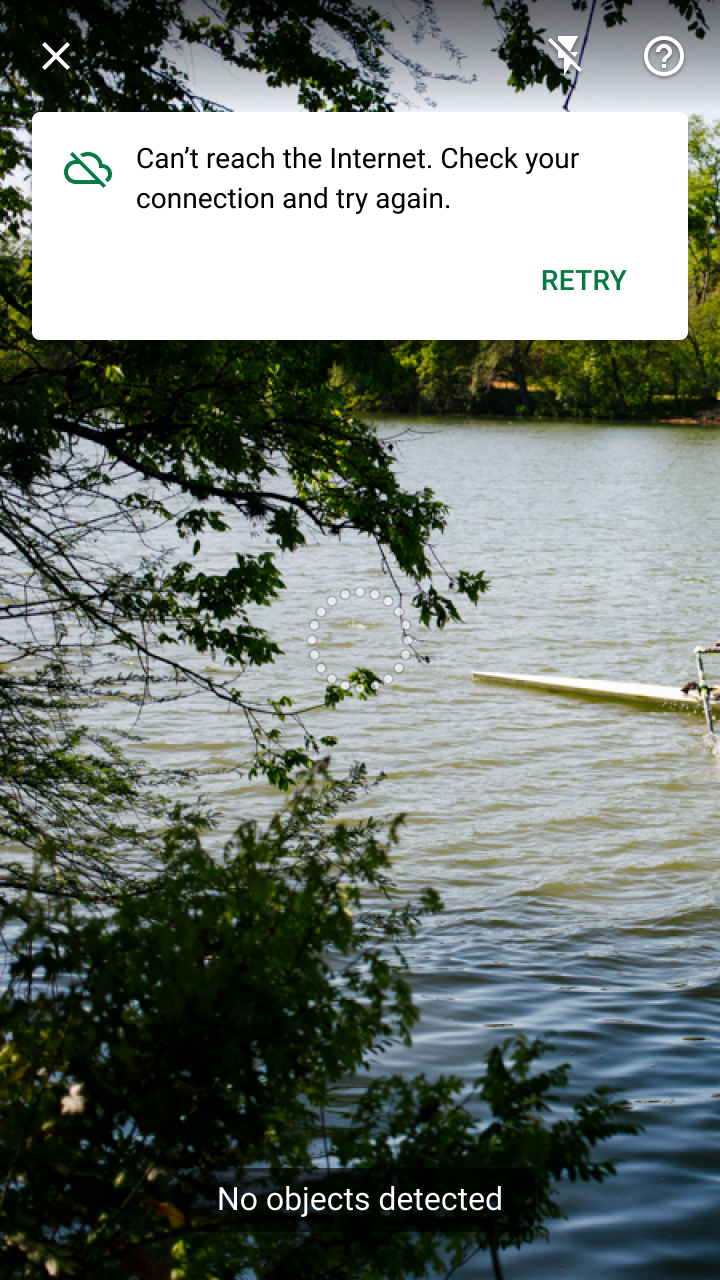

Network issues can be communicated to users with a banner, along with an action to retry the query if the issue has been fixed.

Communicate

Explaining predictions, recommendations, and other AI output to users is critical for building trust. Related Link arrow_downward Results from a visual search are displayed in...

Read More

Results from a visual search are displayed in a modal bottom sheet. During this phase, the app should:

  • Display the results
  • Display the detected object
  • Provide fast navigation

Your app should set a confidence threshold for displaying visual search results. “Confidence” refers to an ML model’s evaluation of how accurate a prediction is. For visual search, the confidence level of each result indicates how similar the model believes it is to the provided image.

Do.

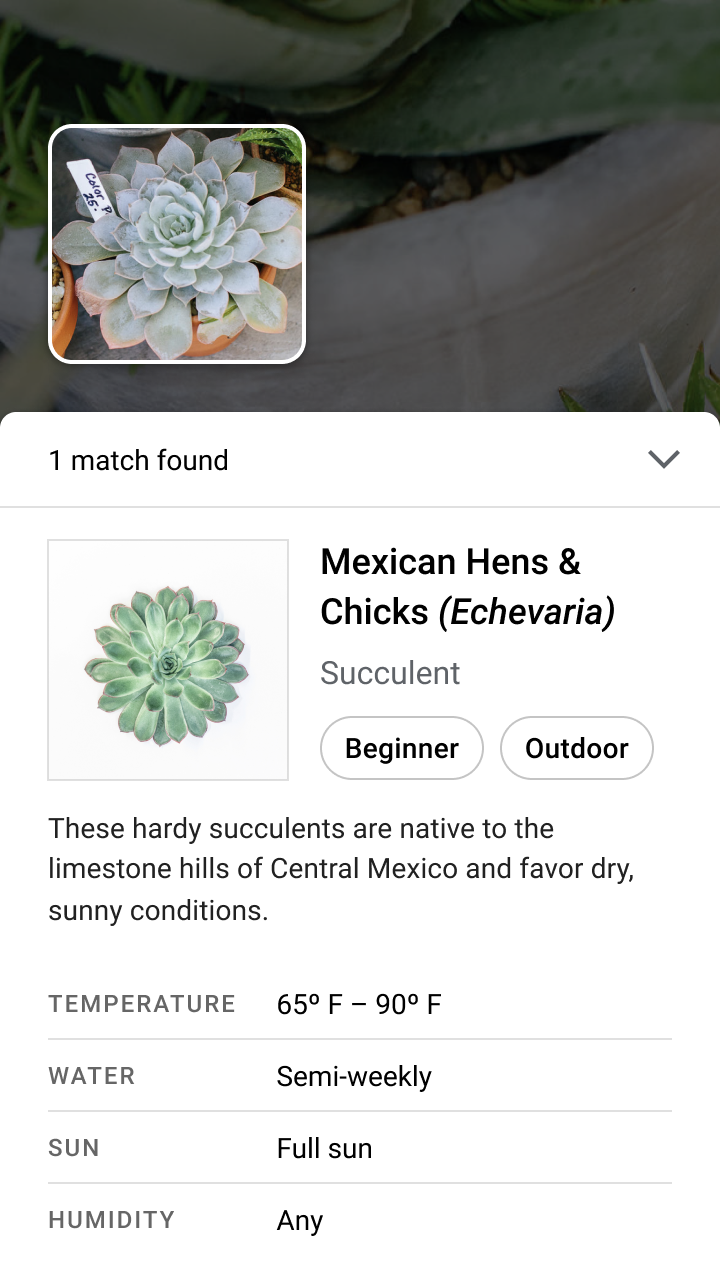

Order visual search results by your model’s confidence to ensure the most likely matching items are seen first.

Do.

Show only the highest-confidence result when an exact match is warranted by the use case.

Display the detected object

To allow comparison between the detected object and search results, display a thumbnail of the detected object above the modal bottom sheet.

Do.

Include the detected image of the object to compare to search result images.

Provide fast navigation

After viewing results, users may take different actions:

  • To return to the camera, users can tap on the scrim or the modal bottom sheet’s header.
  • To exit the camera, a user can interact with a result, navigate elsewhere in the app, or close the camera and return to the app by tapping the “X” button.

Tapping on the bottom sheet’s header or scrim returns users to the live camera view to search.

Results can bring users to other screens in the app to complete their task, such as a checkout screen to purchase an item.

Evaluating search results

In some cases, visual search results may not meet user expectations, such as in the following scenarios:

No results found

A search can return without matches for several reasons, including:

  • An object isn’t a part of, or similar to, the known set of objects
  • An object was detected from an unrecognized angle
  • An image can be low quality, making key details of the object hard to recognize

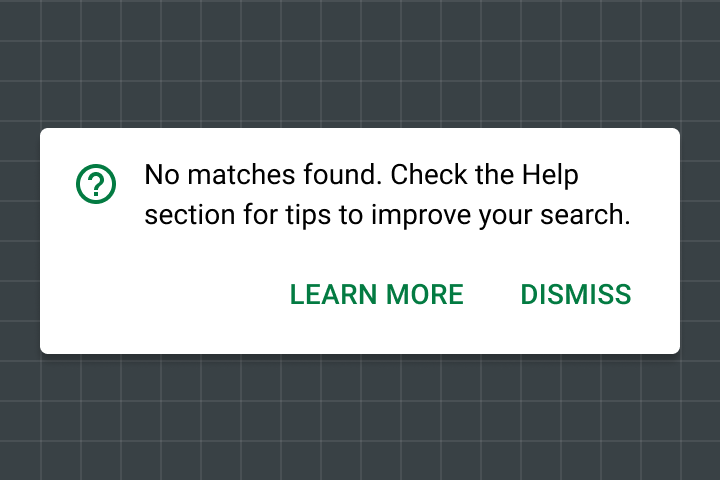

Display a banner to explain if there are no results and guide users to a Help section for information on how to improve their search.

A banner provides room for explanation and a link to Help content if no search results are found.

Poor results

If a search returns results with only low-confidence scores, you can ask the user to search again (with tips on improving their search).

Do.

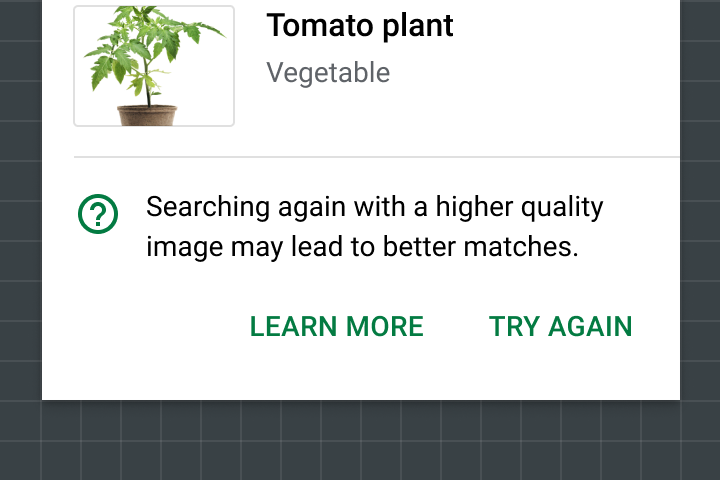

Link to Help content when all results have low confidence.


Theming

Shrine Material theme

Shrine is a lifestyle and fashion brand that demonstrates how Material Design can be used in e-commerce. Related Link arrow_downward Live camera visual search is...

Read More

Live camera visual search is used in the Shrine app’s purchase flow.

Angled shapes used in Shrine’s brand are applied to key elements such as the reticle.

Shrine’s color and typography styles are applied to visual search results to be consistent with the rest of the app.

Reticle

Shrine’s reticle uses a diamond shape to reflect Shrine’s shape style (which uses angled cuts).

1. Shrine’s geometric logo
2. A button with 4dp cut corners
3. A reticle with a diamond shape

Tooltip

Shrine’s tooltip is emphasized by using custom colors, typography, and placement.

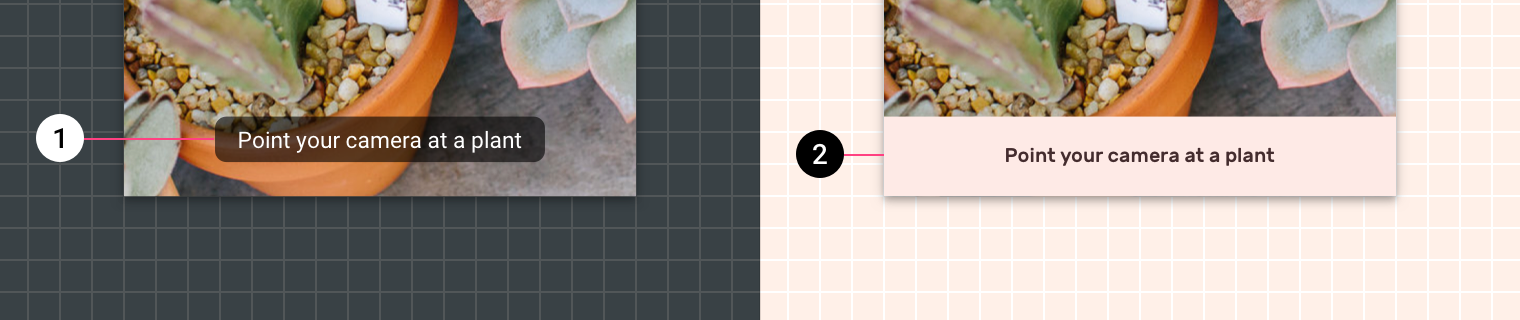

1. Tooltips are typically low-emphasis components whose width is based on their text.
2. Shrine’s tooltip uses custom colors, typography, and extends its container to the edges of the screen.
