Object Detection: Static Image

Using machine learning, objects can be detected from a provided image.


Usage

Photographs can be used to detect and identify objects in the physical world by performing a visual search (a search query that uses an image as input). Using machine learning models, visual search results can tell users more information about an item – whether it’s a species of plant or an item to purchase.

ML Kit’s Object Detection & Tracking API’s “static” mode allows you to detect up to five objects in a provided image and display matching results using your own image classification model.

Searching for objects in an image allows users to browse results for multiple items.

Principles

Design for this feature is based on the following principles: Align the camera UI components to the top and bottom edges of the screen, ensuring...

Read More

Design for this feature is based on the following principles:

Keep images clear and legible

Align the camera UI components to the top and bottom edges of the screen, ensuring that text and icons remain legible when placed in front of an image.

Any non-actionable elements displayed in front of the live camera feed should be translucent to minimize obstructing the camera.

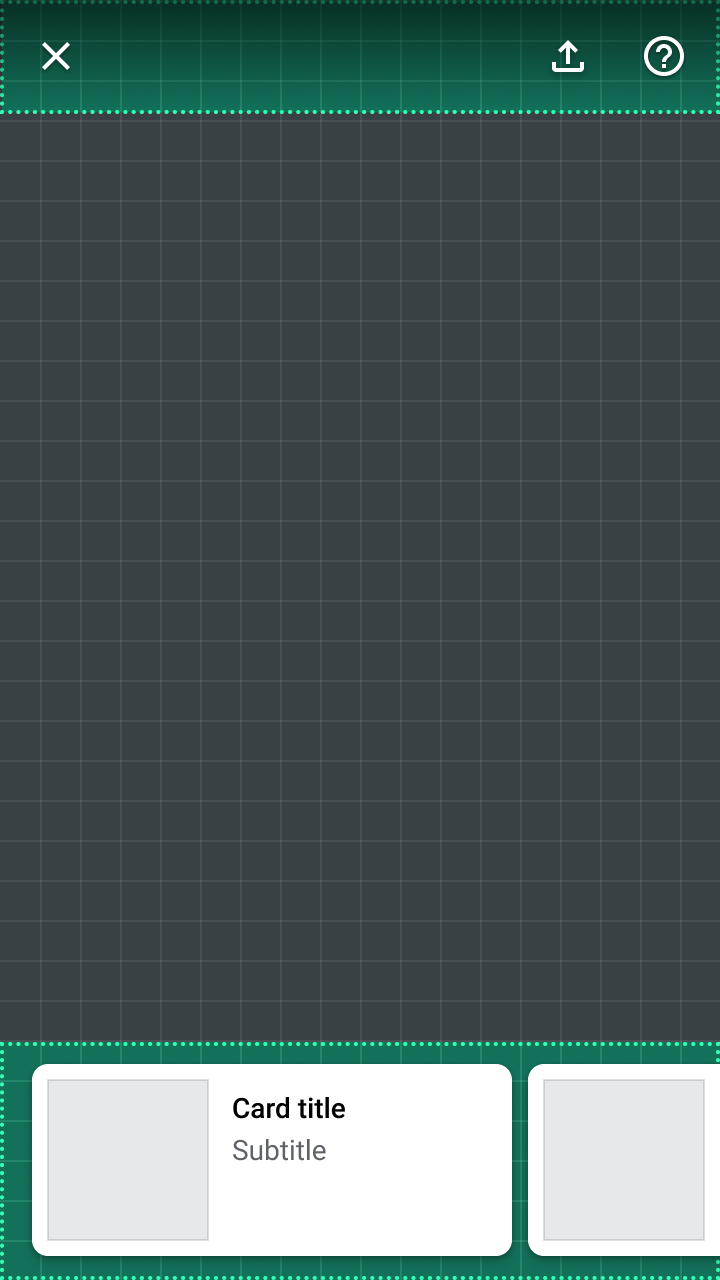

Most components are placed along the top and bottom edges of the screen to maximize viewing the image.

Provide feedback

Using an image to search for objects introduces unique usage requirements. Overlapping or cropped objects can make it hard to identify an object.

Error states should be communicated with multiple design cues (such as components and motion) and include explanations of how users can improve their search.

Banners provide a prominent way to let users know something went wrong with their search, and room to link to a Help section for more information.


Components

The static image object detection features uses existing Material Design components and new elements specific to interacting with an image. For code samples and demos of new elements (such as object markers), check out the source code for the ML Kit Material Design showcase app on Android.

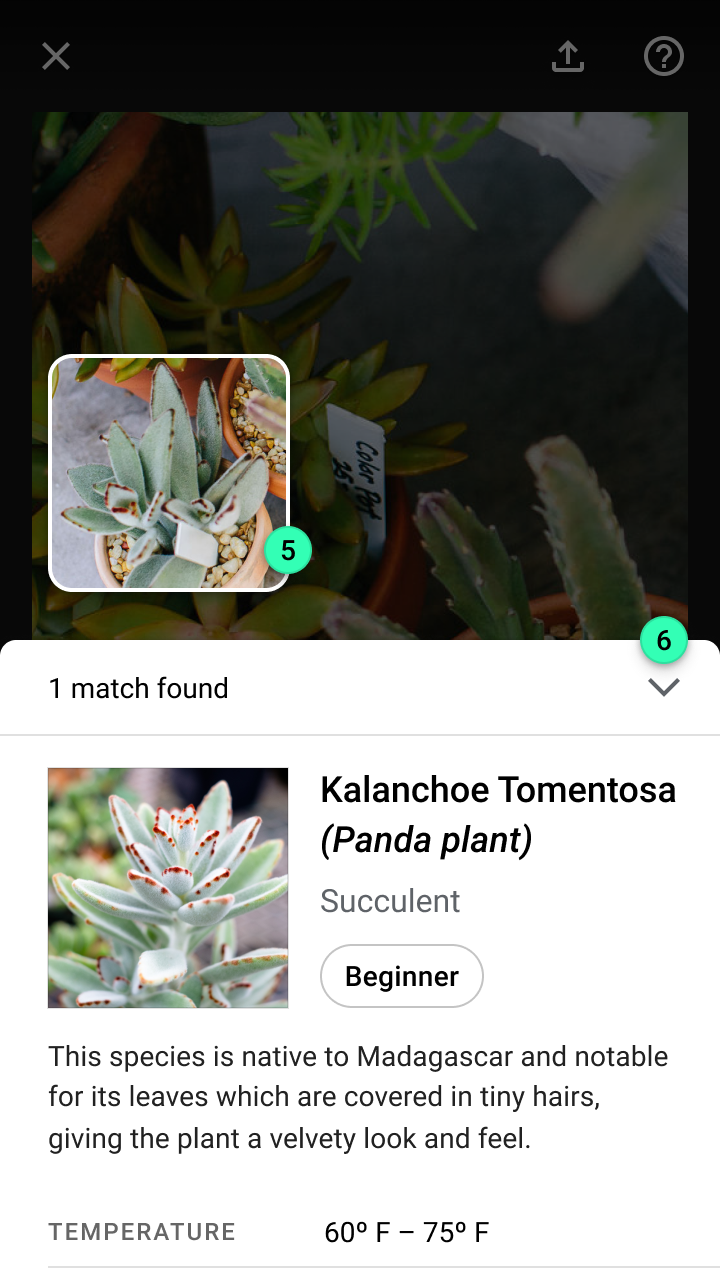

Key elements across the stages of a static image visual search experience:

1. Top app bar
2. Object marker
3. Tooltip
4. Cards
5. Detected image
6. Modal bottom sheet




Top app bar

The top app bar displays information and actions relating to the current view. Related Link arrow_downward The top app bar provides persistent access to the...

Read More

The top app bar provides persistent access to the following actions:

  • A button to exit the search experience
  • A button to submit a photo to search
  • A Help section for troubleshooting search issues

Do.

Use a gradient scrim or solid color for the top app bar’s container to ensure its actions are legible over a camera feed.

Object markers

Object markers are circular, elevated indicators placed in front of the center of a detected object. Each marker is paired with a card at the...

Read More

Object markers are circular, elevated indicators placed in front of the center of a detected object. Each marker is paired with a card at the bottom of the screen, which displays a preview of each object’s results. When the card is scrolled into view, the corresponding object marker increases in size.

Tapping an object marker (or its results card) opens a modal bottom sheet displaying an object’s full visual search results.

Object markers animate into view on top of the image to draw a user’s attention.

Tooltip

Tooltips display informative text when users hover over, focus on, or tap an element. Related Link arrow_downward Tooltips display informative text to users. For example,...

Read More

Tooltips display informative text to users. For example, they express both states (such as with a message that says “Searching…”) and prompt the user to the next step (such as a message that says, “Tap on a dot or card for results”).

Do.

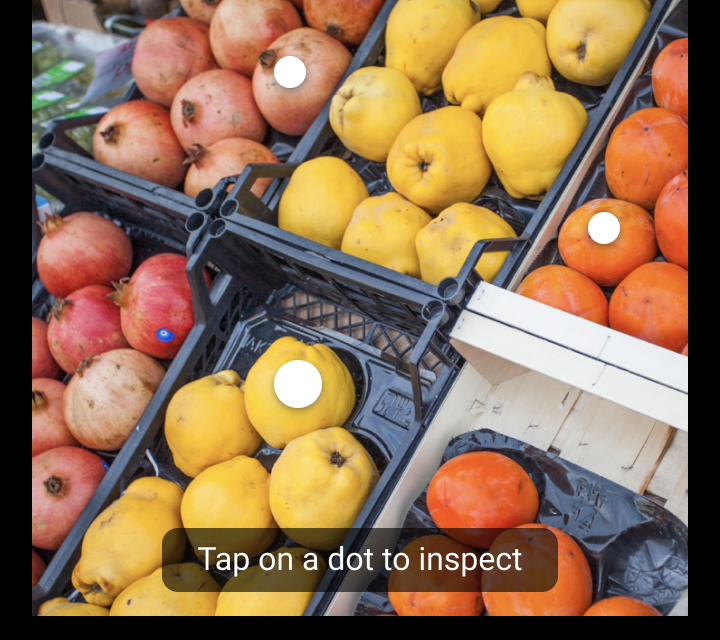

Write short messages using terms appropriate for your audience.

Don’t.

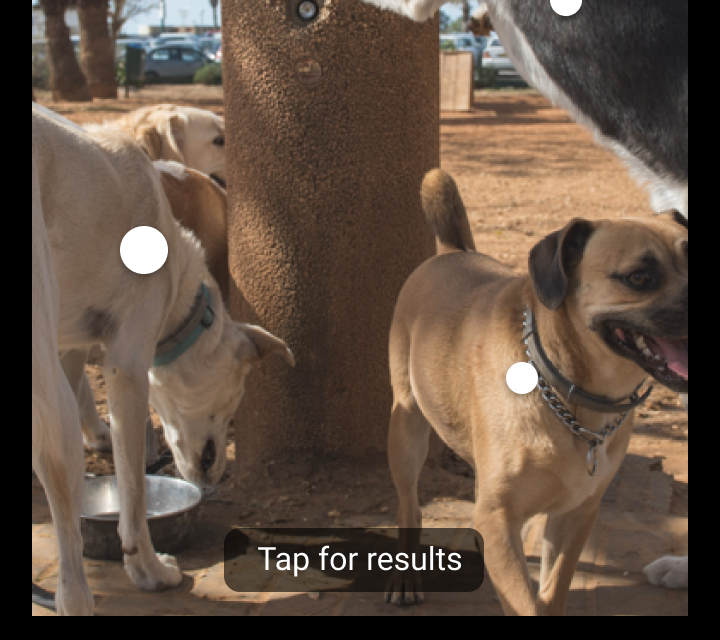

Don’t write tooltips with action verbs, such as “Tap to search,” as tooltips aren’t actionable.

Don’t.

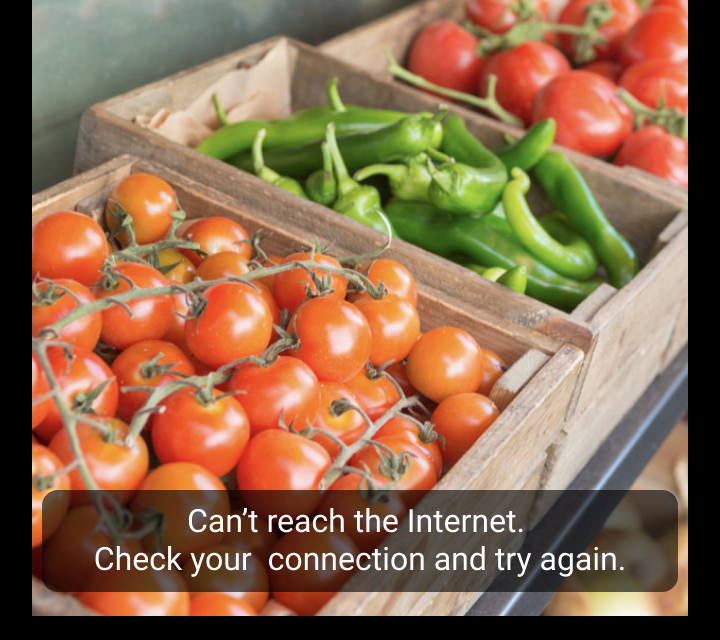

Don’t place error messages in a tooltip. Errors should be placed in a banner for increased emphasis and to provide space for displaying actions.

Cards

Cards contain content and links about a single subject. Related Link arrow_downward Cards provide a preview of an object’s visual search results. They are arranged...

Read More

Cards provide a preview of an object’s visual search results. They are arranged in a horizontally scrolling carousel, organized based on the horizontal position of each object.

Each card is paired with an object marker. When the card is scrolled into view, its related object marker increases in size. Tapping a card (or its object marker) opens a modal bottom sheet, which displays an object’s full visual search results.

Cards provide a preview of visual search results and can be tapped to open a modal bottom sheet that contains all results. Horizontally scrolling cards emphasize the corresponding object marker.

Modal bottom sheet

Bottom sheets are surfaces containing supplementary content that are anchored to the bottom of the screen. Related Link arrow_downward Modal bottom sheets provide access to...

Read More

Modal bottom sheets provide access to visual search results. Their layout and content depend on your app’s use case, the number of results, and result confidence.

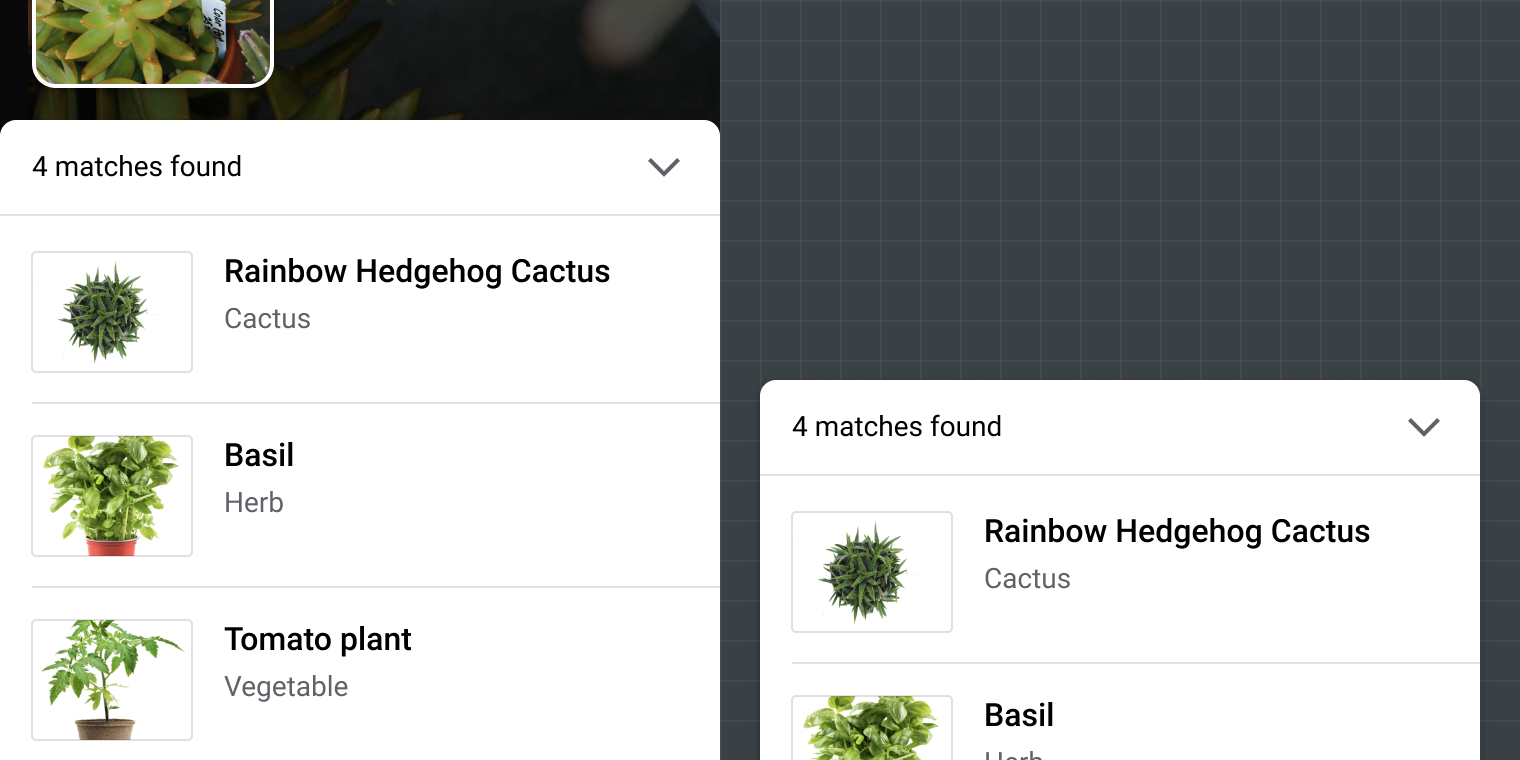

Lists or image grids can be used in a modal bottom sheet to display multiple visual search results. To display additional results, the sheet can be opened to the full height of the screen.

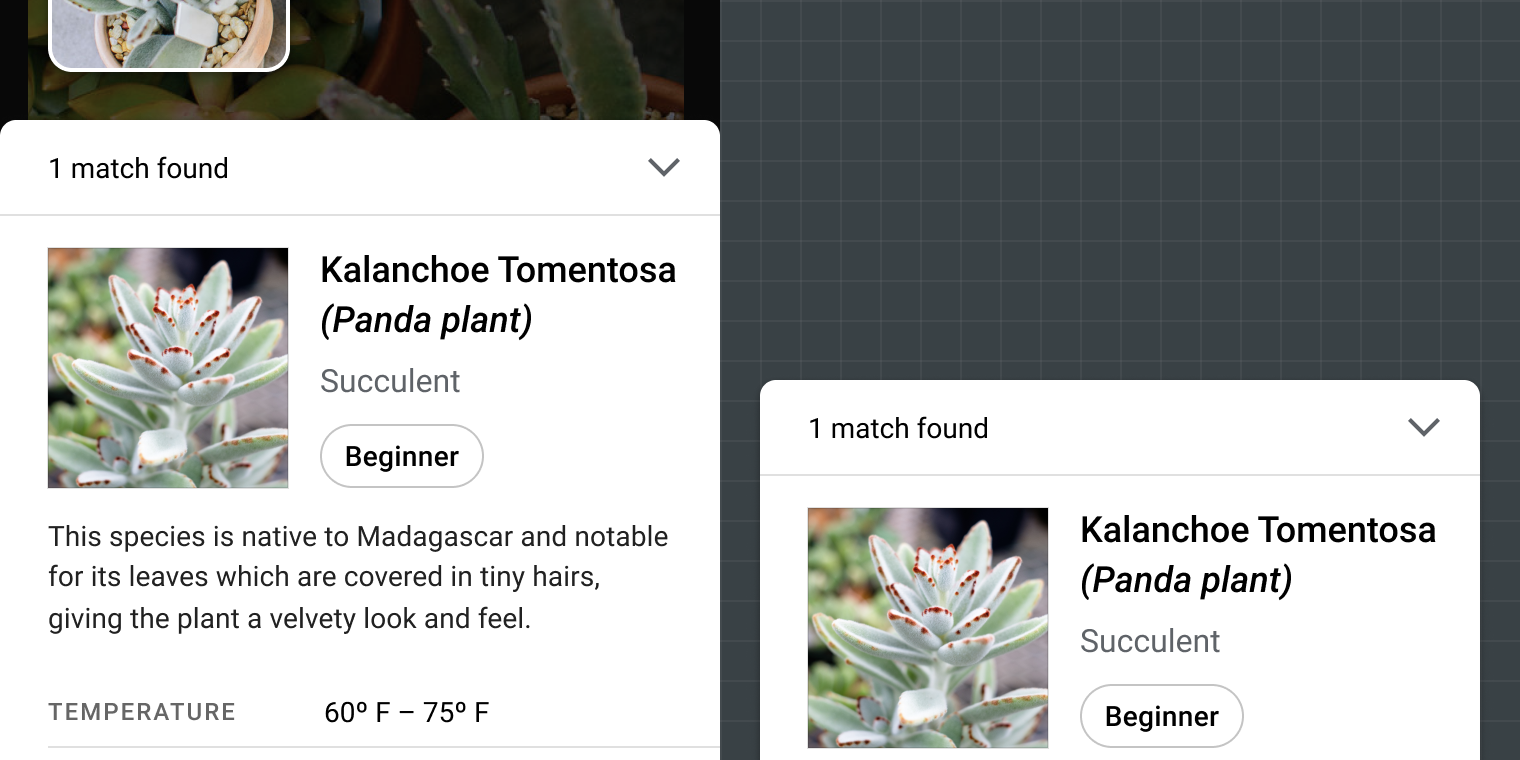

A modal bottom sheet can display a single result and adapt its layout to suit the content.


Experience

Visual object search from an image happens in three phases:

  1. Input: Select an image to search
  2. Recognize: Detect and identify objects
  3. Communicate: If matching objects are found, display results

Input

AI-powered systems can adapt over time. Prepare users for change—and help them understand how to train the system. Related Link arrow_downward Visual search begins when...

Read More

Visual search begins when a user selects an image. To increase the chances of a successful search, advise users on the types of images most suitable to search.

Do.

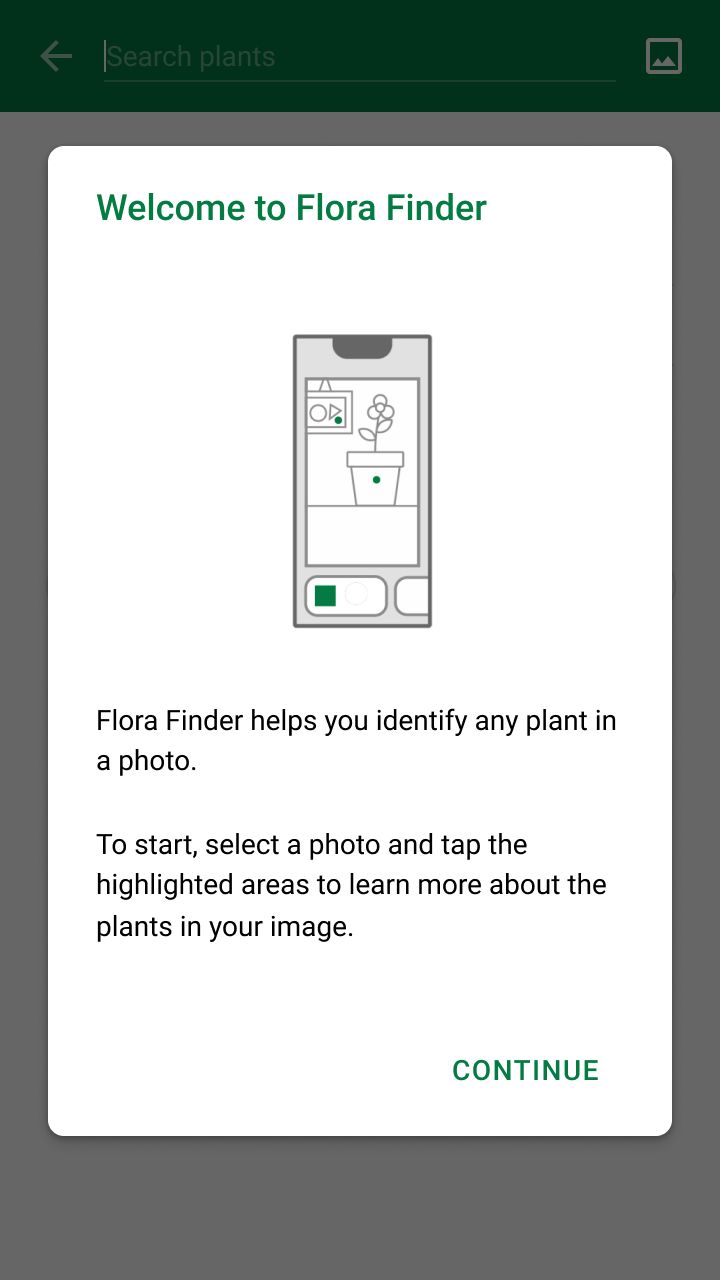

Provide a short explanation recommending images that are clear with items fully visible, and at a close range.

Do.

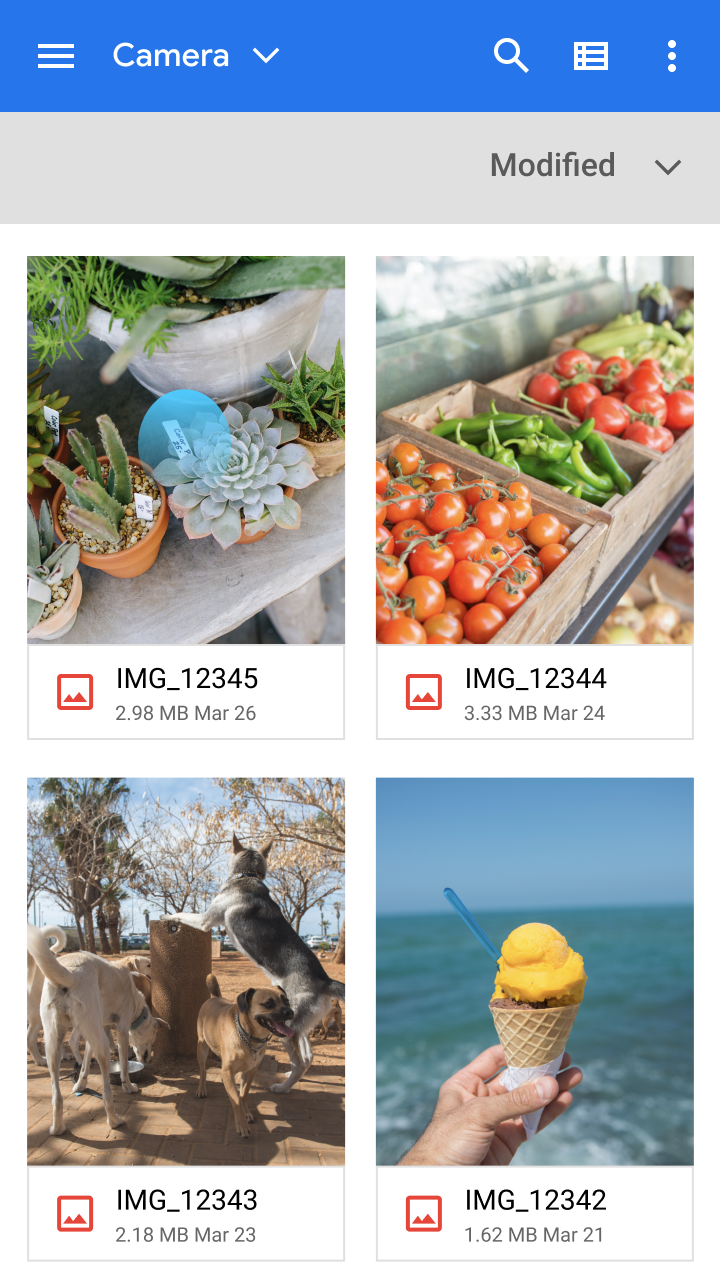

Use native Android and iOS selection screens to help users find photos in a familiar way.

Recognize

When one or more objects have been detected from an image, the app should: Objects detected by ML Kit Object Detection & Tracking API are...

Read More

When one or more objects have been detected from an image, the app should:

  • Communicate that the app is awaiting results
  • Display search progress

Objects detected by ML Kit Object Detection & Tracking API are then compared against a set of known images from your image classification model, which are used to find matching results.

Even if an image is detected from a photo, it doesn’t guarantee that matching results will be found. Thus, objects shouldn’t be marked as detected until valid search results are returned.

Do.

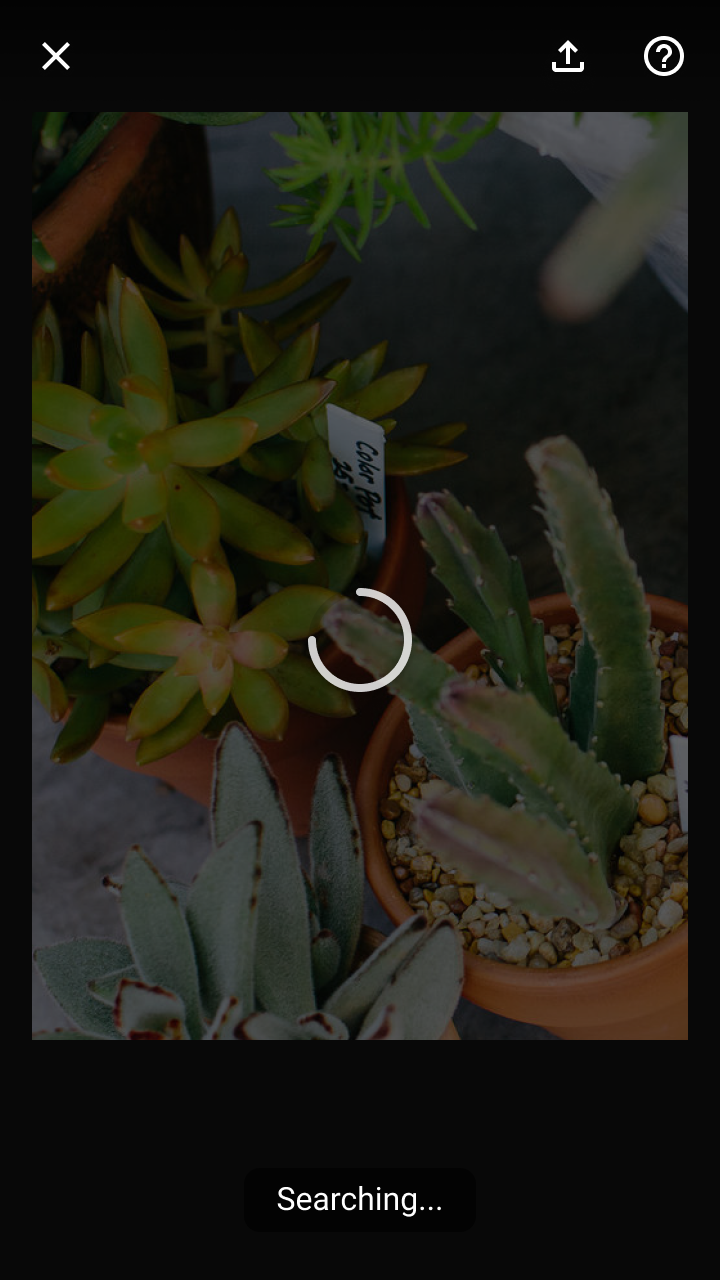

Use an indeterminate progress indicator and tooltip to inform the user that the app is analyzing the image for matching items. Display these items over the image to show the user’s selection and that the search has begun.

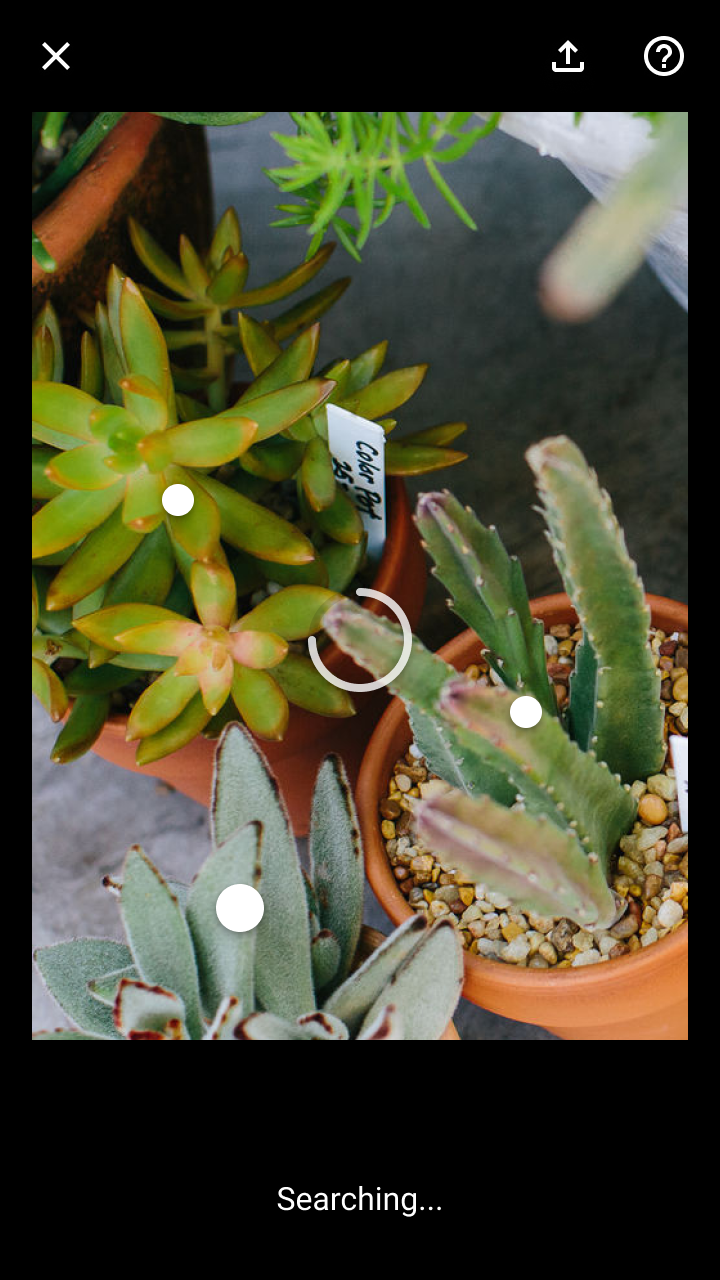

Don’t.

Don’t place object markers on detected objects until search results are available.

Guide adjustments

The following factors can affect whether or not objects are detected and identified (this list is not exhaustive):

  • Poor image quality
  • Small object size in image
  • Low contrast between an object and its background
  • An object is shown from an unrecognizable angle
  • The network connection needed to complete the search is lost

Do.

Use a banner to indicate if no matching objects were identified. Provide options to visit a dedicated Help section or retry with another image.

Communicate

Explaining predictions, recommendations, and other AI output to users is critical for building trust. Related Link arrow_downward Results for detected objects are expressed to users...

Read More

Results for detected objects are expressed to users by:

  • Placing object markers in front of each detected object
  • Showing a preview each object’s result on a card (as part of a carousel of cards)

Your app should set a confidence threshold for displaying visual search results. “Confidence” refers to an ML model’s evaluation of how accurate a prediction is. For visual search, the confidence level of each result indicates how similar the model believes it is to the provided image.

If one or more objects in the image have search results, the app should identify those detected objects using object markers and a carousel of cards previewing each object’s results. Tapping on a marker or card opens a modal bottom sheet that shows an object’s results.

Do.

Use motion to indicate the relationship between dots and cards. A stagger animation calls attention to each detected item in the image and its connection to the card below.

Do.

Include the detected image of the object to compare to images of the search results.

Evaluating search results

In some cases, visual search results may not meet user expectations, such as in the following scenarios:

No results found

A search can return without matches for several reasons, including:

  • An object isn’t a part of, or similar to, the known set of objects
  • It was detected from an angle the visual search model doesn’t recognize
  • Poor image quality, making key details of the object hard to recognize

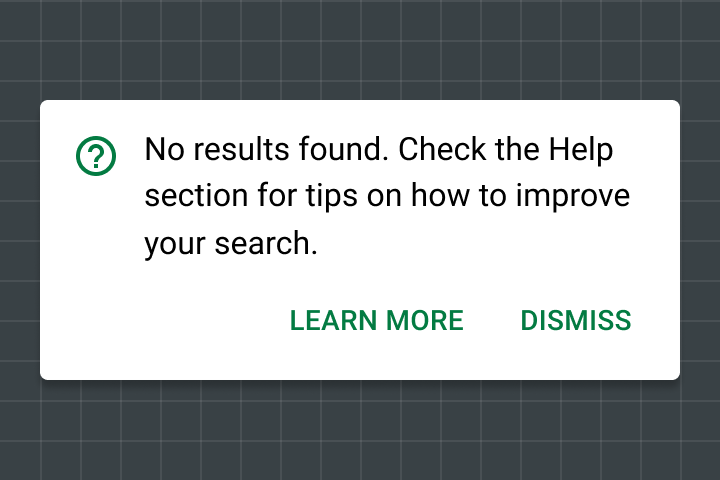

Display a banner to explain if there are no results and guide users to a Help section for information on how to improve their search.

A banner provides room for explanation and a link to help content if no search results are found.

Poor results

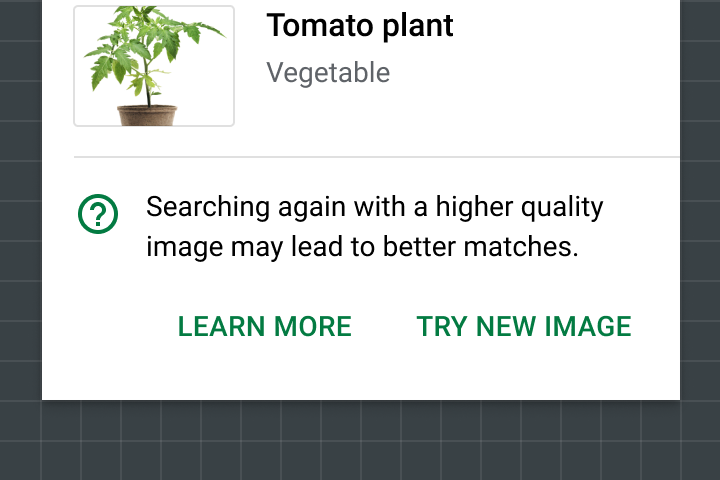

If a search returns results with only low-confidence scores, you can ask the user to search again (with tips on improving their search) instead of showing results.

Do.

Link to Help content when all results have low confidence.


Theming

Shrine Material theme

Shrine is a lifestyle and fashion brand that demonstrates how Material Design can be used in e-commerce. Related Link arrow_downward The Shrine app purchase flow...

Read More

The Shrine app purchase flow lets users perform a visual search for products using a photo.

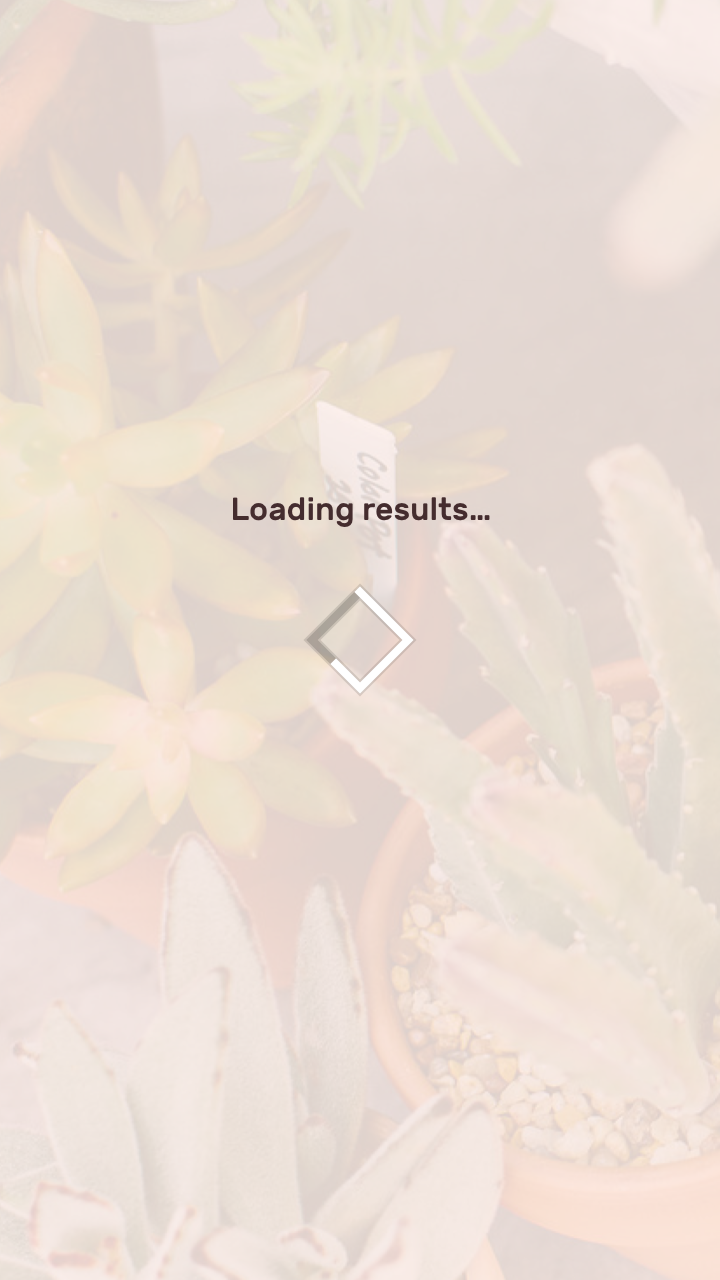

The results loading screen uses a light pink scrim and diamond-shaped loader to reflect the brand’s primary color and logo shape.

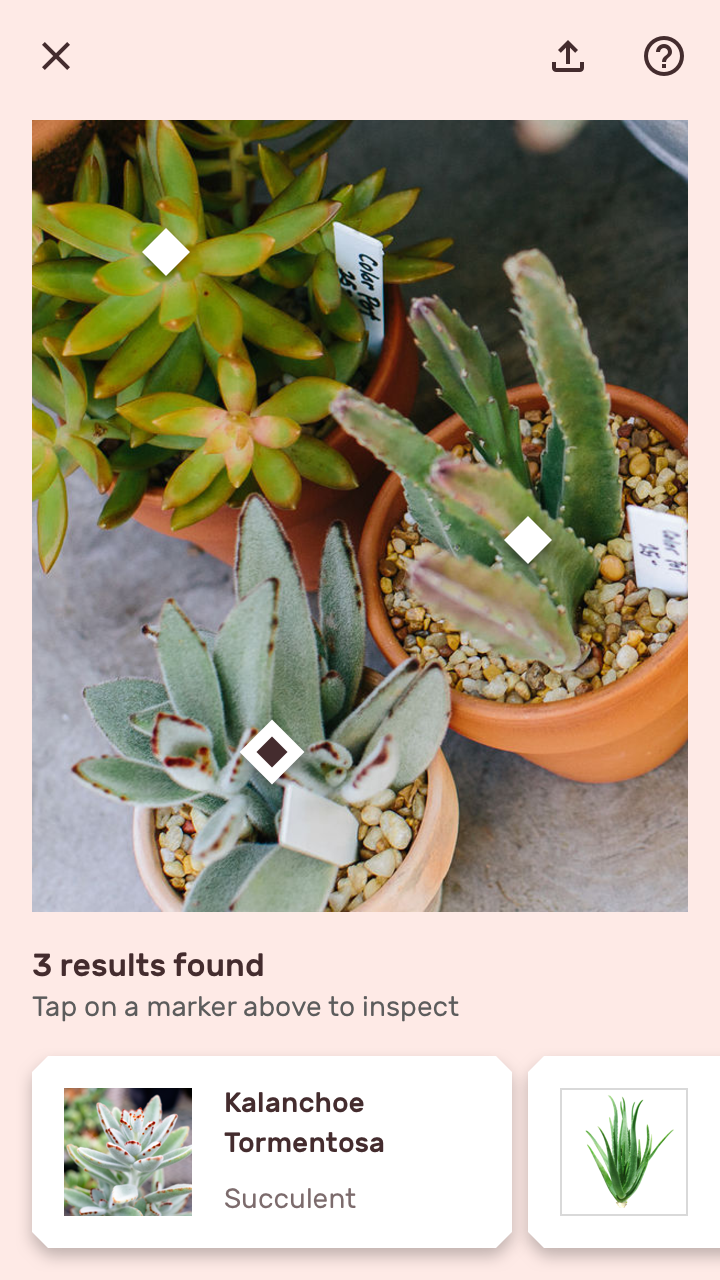

Shrine’s color and typography styles are applied to visual search results.

Object Markers

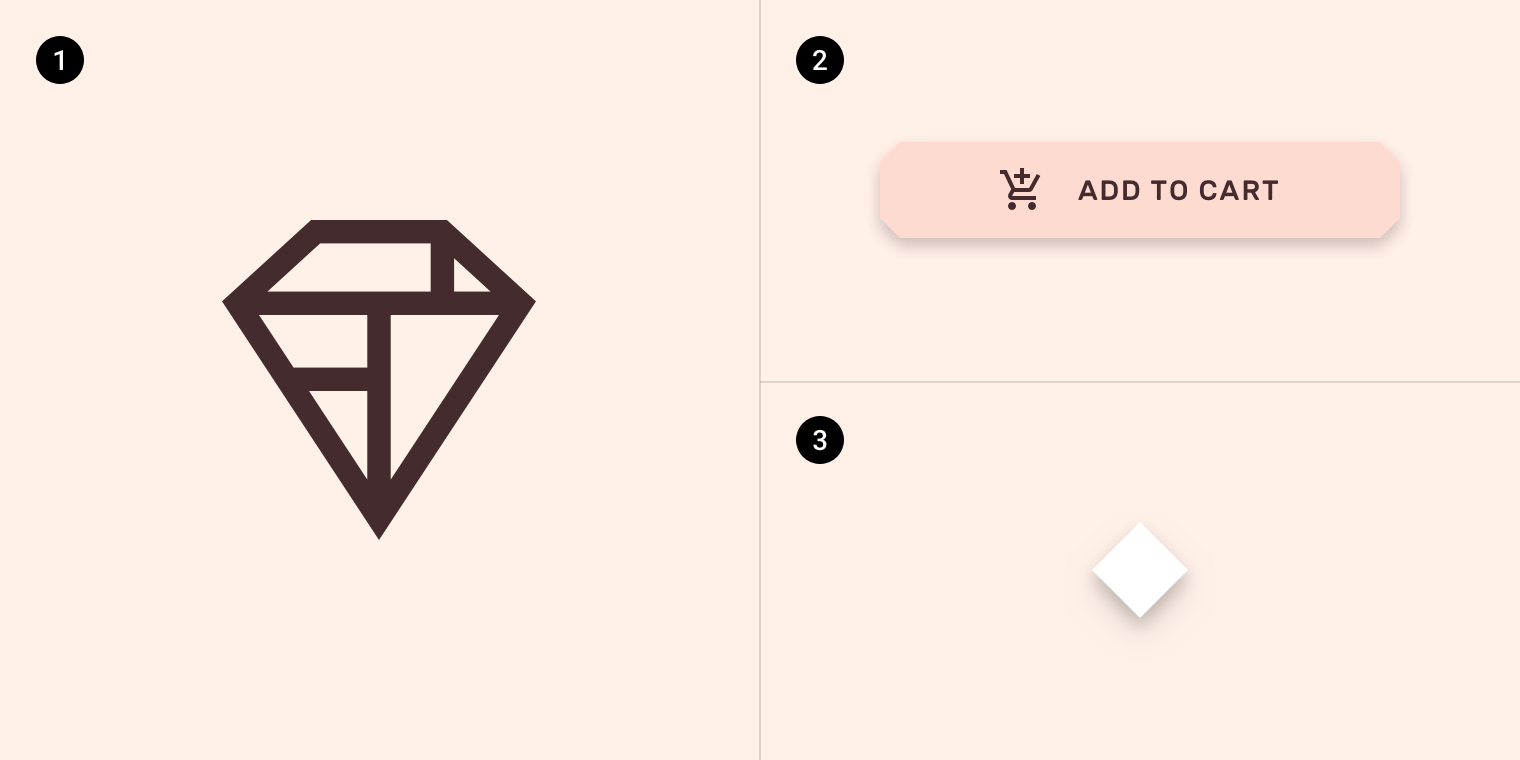

Shrine’s object markers use a diamond shape to reflect Shrine’s shape style (which uses angled cuts).

1. Shrine’s geometric logo
2. A button with 4dp cut corners
3. An object marker with diamond shape

To help users match result cards with possible detected objects, object markers typically increase in size when their corresponding result card is selected in the carousel. Instead of changing the object marker’s size to emphasize it, Shrine applies custom color and border styles.

1. Object markers can use a difference in size to inform users which object is related to the result card they are currently viewing.
2. Shrine’s object markers use a difference in color and border styles to indicate the current object. The marker’s container color changes from #FFFFFF to Shrine’s On Surface color (#442C2E) and receives a 6dp #FFFFFF border.

Cards

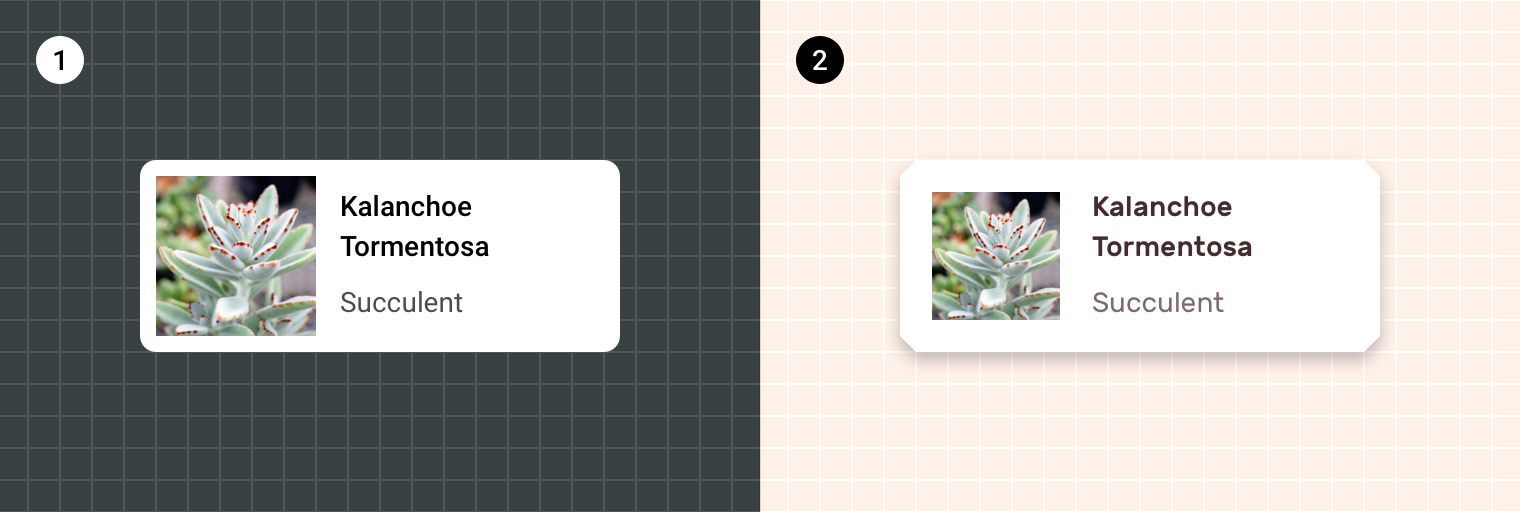

Shrine’s result cards use custom colors, typography, and shape styles.

1. By default, cards use the font Roboto for content, #000000 as their On Surface color, and have 4dp rounded corners.
2. Shrine’s cards use the font Rubik for content, Shrine Pink 900 (#442C2E) as their On Surface color, and have 8dp cut corners.
