Data visualization

Data visualization depicts information in graphical form.


Principles

Data visualization is a form of communication that portrays dense and complex information in graphical form. The resulting visuals are designed to make it easy to compare data and use it to tell a story – both of which can help users in decision making.

Data visualization can express data of varying types and sizes: from a few data points to large multivariate datasets.

Accurate

Prioritize data accuracy, clarity, and integrity, presenting information in a way that doesn’t distort it.

Helpful

Help users navigate data with context and affordances that emphasize exploration and comparison.

Scalable

Adapt visualizations for different device sizes, while anticipating user needs on data depth, complexity, and modality.


Types

Data visualization can be expressed in different forms. Charts are a common way of expressing data, as they depict different data varieties and allow data comparison.

The type of chart you use depends primarily on two things: the data you want to communicate, and what you want to convey about that data. These guidelines provide descriptions of various different types of charts and their use cases.

Types of charts

Change over time charts show data over a period of time, such as trends or comparisons across multiple categories. Common use cases include: Category comparison...

Read More

Change over time

Change over time charts show data over a period of time, such as trends or comparisons across multiple categories.

Common use cases include:

  • Stock price performance
  • Health statistics
  • Chronologies

Change over time charts include:

1. Line charts
2. Bar charts
3. Stacked bar charts
4. Candlestick charts
5. Area charts
6. Timelines
7. Horizon charts
8. Waterfall charts






Category comparison

Category comparison charts compare data between multiple distinct categories.

Use cases include:

  • Income across different countries
  • Popular venue times
  • Team allocations

Category comparison charts include:

1. Bar charts
2. Grouped bar charts
3. Bubble charts
4. Multi-line charts
5. Parallel coordinate charts
6. Bullet charts




Ranking

Ranking charts show an item’s position in an ordered list.

Use cases include:

  • Election results
  • Performance statistics

Ranking charts include:
1. Ordered bar charts
2. Ordered column charts
3. Parallel coordinate charts


Part-to-whole

Part-to-whole charts show how partial elements add up to a total.

Use cases include:

  • Consolidated revenue of product categories
  • Budgets

Part-to-whole charts include:

1. Stacked bar charts
2. Pie charts
3. Donut charts
4. Stacked area charts
5. Treemap charts
6. Sunburst charts




Correlation

Correlation charts show correlation between two or more variables.

Use cases include:

  • Income and life expectancy

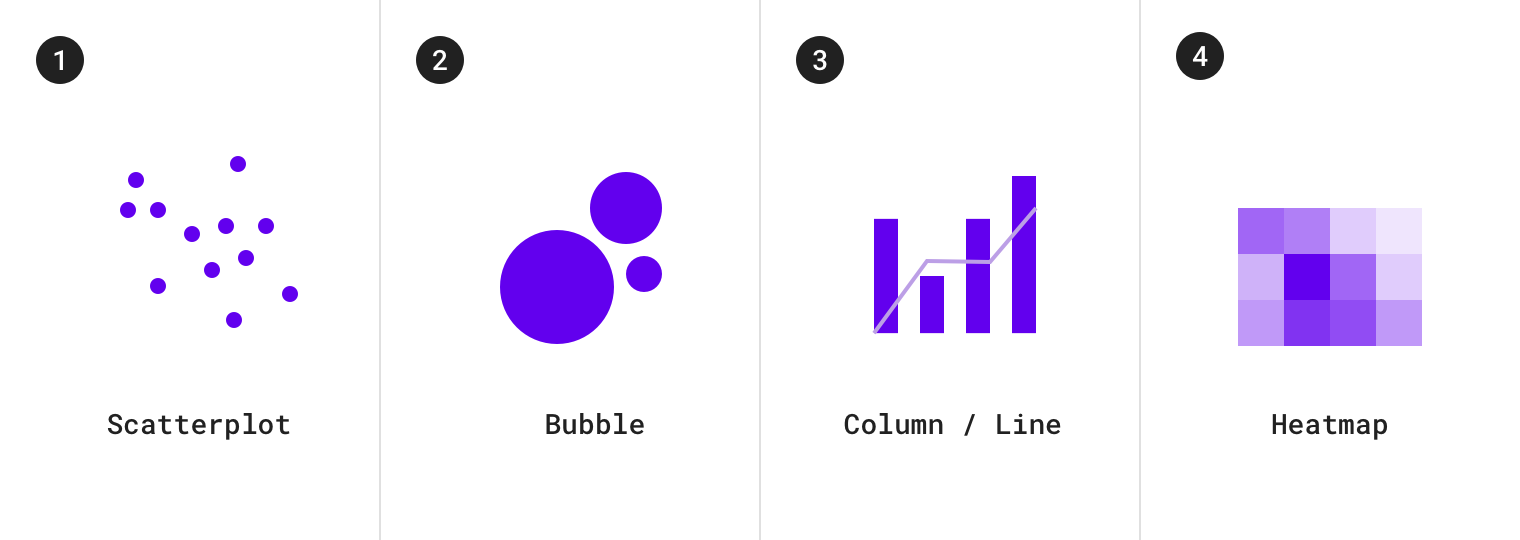

Correlation charts include:

1. Scatterplot charts
2. Bubble charts
3. Column and line charts
4. Heatmap charts

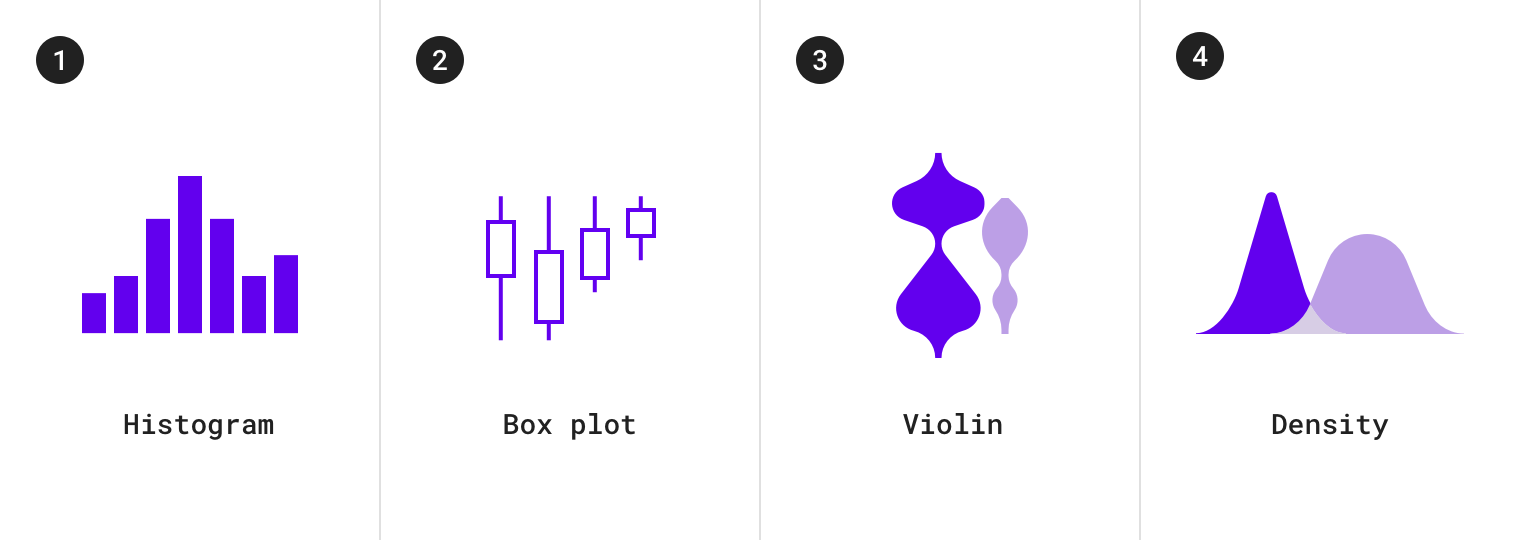

Distribution

Distribution charts show how often each values occur in a dataset.

Use cases include:

  • Population distribution
  • Income distribution

Distribution charts include:

1. Histogram charts
2. Box plot charts
3. Violin charts
4. Density charts

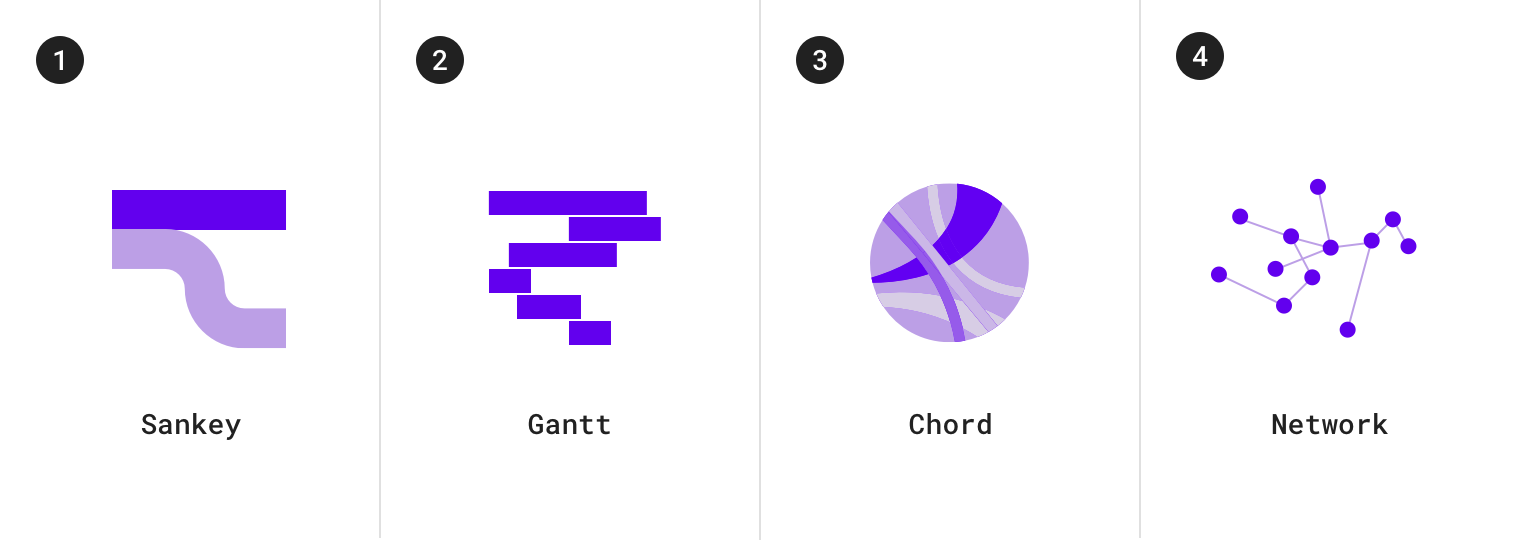

Flow

Flow charts show movement of data between multiple states.

Use cases include:

  • Fund transfers
  • Vote counts and election results

Flow charts include:

1. Sankey charts
2. Gantt charts
3. Chord charts
4. Network charts


Relationship

Relationship charts show how multiple items relate to one other.

Use cases include

  • Social networks
  • Word charts

Relationship charts include:

1. Network charts
2. Venn diagrams
3. Chord charts
4. Sunburst charts



Selecting charts

Multiple types of charts can be suitable for depicting data. The guidelines below provide insight into how to choose one chart over another.

Showing change over time

Change over time can be expressed using a time series chart, which is a chart that represents data points in chronological order. Charts that express...

Read More

Change over time can be expressed using a time series chart, which is a chart that represents data points in chronological order. Charts that express change over time include: line charts, bar charts, and area charts.

Type of chart

Usage

Baseline value *

Quantity of time series

Data type

Line chart

To express minor variations in data

Any value

Any time series (works well for charts with 8 or more time series)

Continuous

Bar chart

To express larger variations in data, how individual data points relate to a whole, comparisons, and ranking

Zero

4 or fewer

Discrete or categorical

Area chart

To summarize relationships between datasets, how individual data points relate to a whole

Zero (when there’s more than one series)

8 or fewer

Continuous

* The baseline value is the starting value on the y-axis.

Bar and pie charts

Both bar charts and pie charts can be used to show proportion, which expresses a partial value in comparison to a total value. Bar charts,...

Read More

Both bar charts and pie charts can be used to show proportion, which expresses a partial value in comparison to a total value.

  • Bar charts express quantities through a bar’s length, using a common baseline
  • Pie charts express portions of a whole, using arcs or angles within a circle

Bar charts, line charts, and stacked area charts are more effective at showing change over time than pie charts. Because all three of these charts share the same baseline of possible values, it’s easier to compare value differences based on bar length.

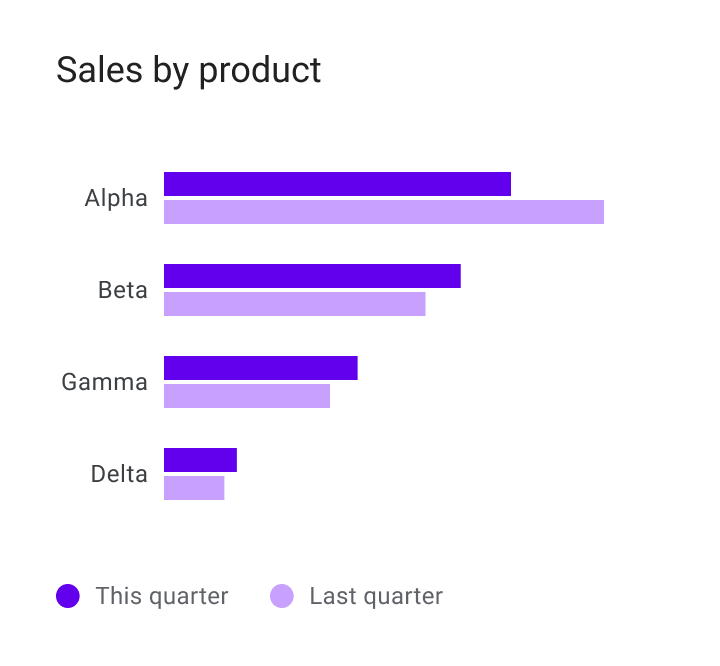

Do.

Use bar charts to show changes over time or differences between categories.

Don’t.

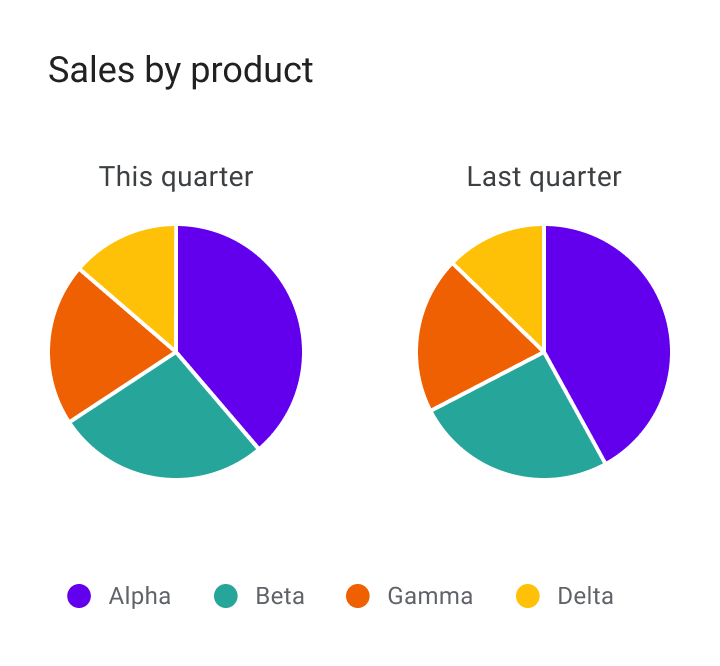

Don’t use multiple pie charts to show changes over time. It’s difficult to compare the difference in size across each slice of the pie.

Area charts

Area charts come in several varieties, including stacked area charts and overlapped area charts: Overlapping area charts are not recommended with more than two time...

Read More

Area charts come in several varieties, including stacked area charts and overlapped area charts:

  • Stacked area charts show multiple time series (over the same time period) stacked on top of one another
  • Overlapped area charts show multiple time series (over the same time period) overlapping one another

Overlapping area charts are not recommended with more than two time series, as doing so can obscure the data. Instead, use a stacked area chart to compare multiple values over a time interval (with time represented on the horizontal axis).

Do.

Use a stacked area chart to represent multiple time series and maintain a good level of legibility.

Don’t.

Don’t use overlapped area charts as it obscures data values and reduces readability.


Style

Data visualizations use custom styles and shapes to make data easier to understand at a glance, in ways that suit the user’s needs and context.

Charts can benefit from customizing the following:

  • Graphical elements
  • Typography
  • Iconography
  • Axes and labels
  • Legends and annotations

Styling different types of data

Visual encoding is the process of translating data into visual form. Unique graphical attributes can be applied to both quantitative data (such as temperature, price,...

Read More

Visual encoding is the process of translating data into visual form. Unique graphical attributes can be applied to both quantitative data (such as temperature, price, or speed) and qualitative data (such as categories, flavors, or expressions).

These attributes include:

  • Shape
  • Color
  • Size
  • Area
  • Volume
  • Length
  • Angle
  • Position
  • Direction
  • Density

Expressing multiple attributes

Multiple visual treatments can be applied to more than one aspect of a data point. For example, a bar color can represent a category, while a bar’s length can express a value (like population size).

Shape can be used to represent qualitative data. In this chart, each category is represented by a specific shape (circles, squares, and triangles), which makes it easy to compare data both within a specific range or against other categories.

Shape

Charts can use shapes to display data in a range of ways. A shape can be styled as playful and curvilinear, or precise and high-fidelity,...

Read More

Charts can use shapes to display data in a range of ways. A shape can be styled as playful and curvilinear, or precise and high-fidelity, among other ways in between.

Level of shape detail

Charts can represent data at varying levels of precision. Data intended for close exploration should be represented by shapes that are suitable for interaction (in terms of touch target size and related affordances). Whereas data that’s intended to express a general idea or trend can use shapes with less detail.

Do.

The bars in this chart have subtle rounded corners, ensuring that the top of the bar precisely measures the bar’s length.

Don’t.

Don’t use shapes that make it hard to read a chart, such as bars with imprecise top edges.

Color

Color can be used to differentiate chart data in four primary ways: Color can highlight an area of focus, when it is used sparingly. It’s...

Read More

Color can be used to differentiate chart data in four primary ways:

  • Distinguishing categories from one another
  • Representing quantity
  • Highlighting specific data
  • Expressing meaning

Color distinguishes categories

Color is used to define categories in a donut chart.

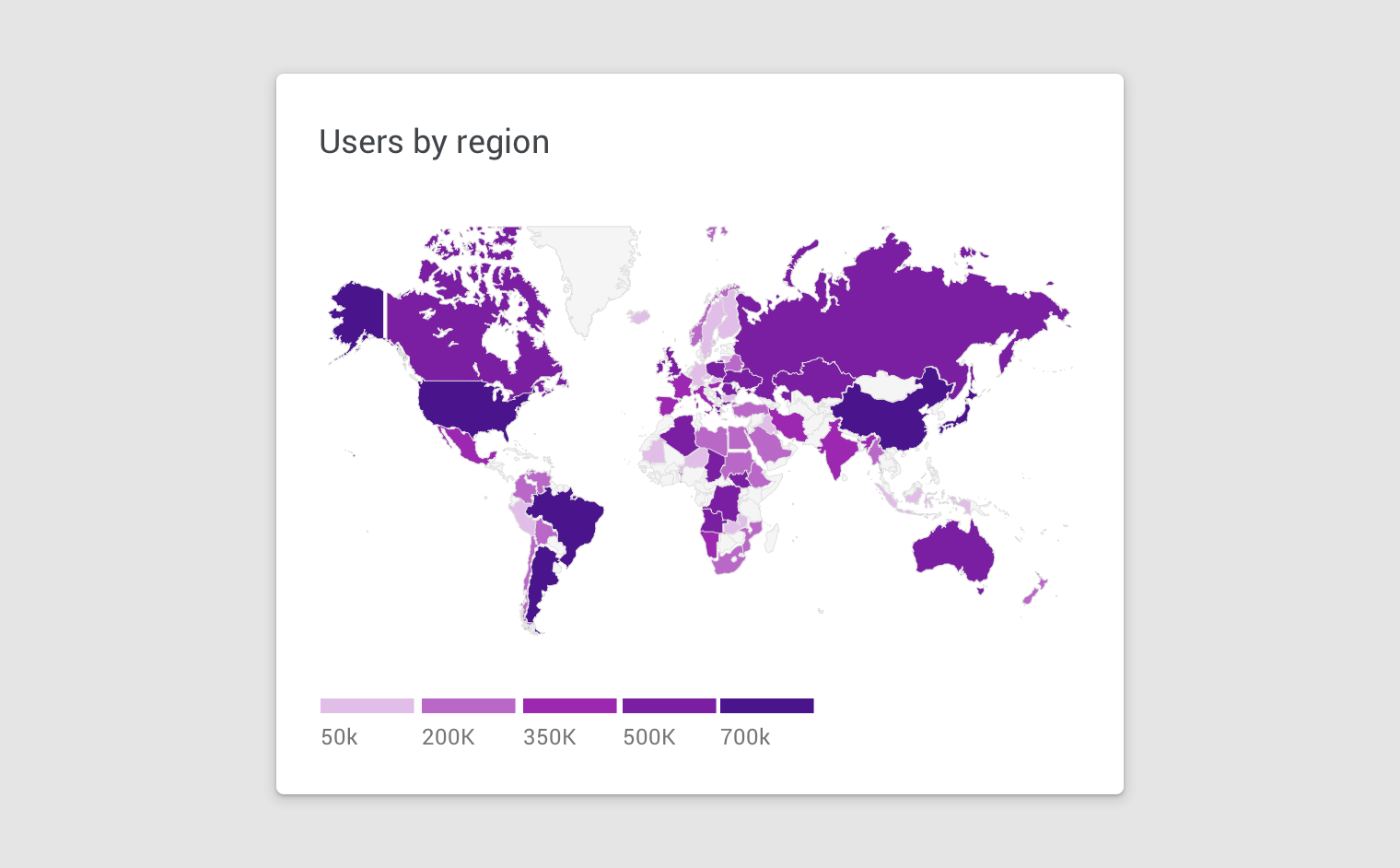

Color represents quantity

Color is used to represent data values in a map.

Color highlights data

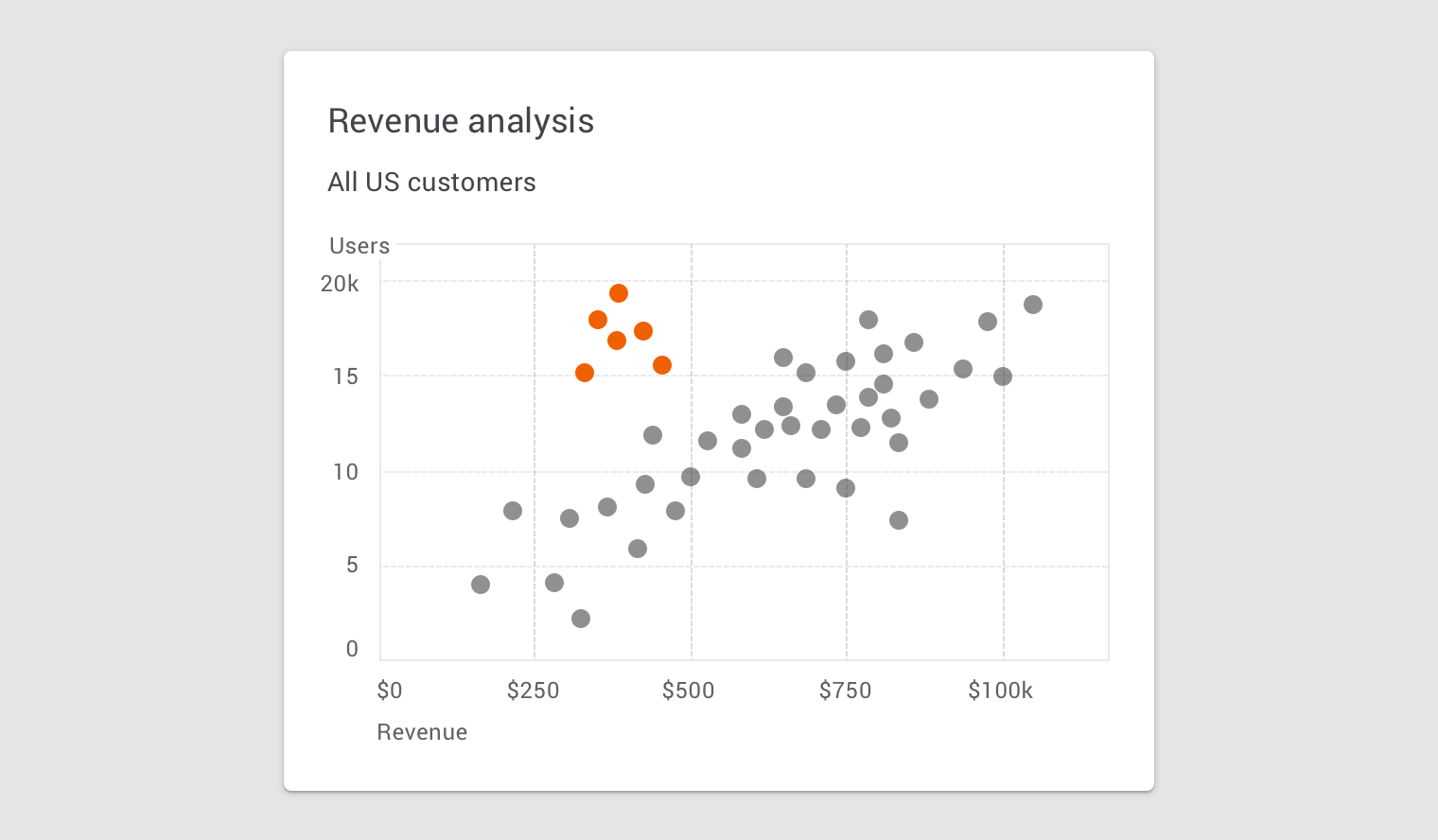

Color is used to highlight specific data in a scatterplot.

Areas of focus

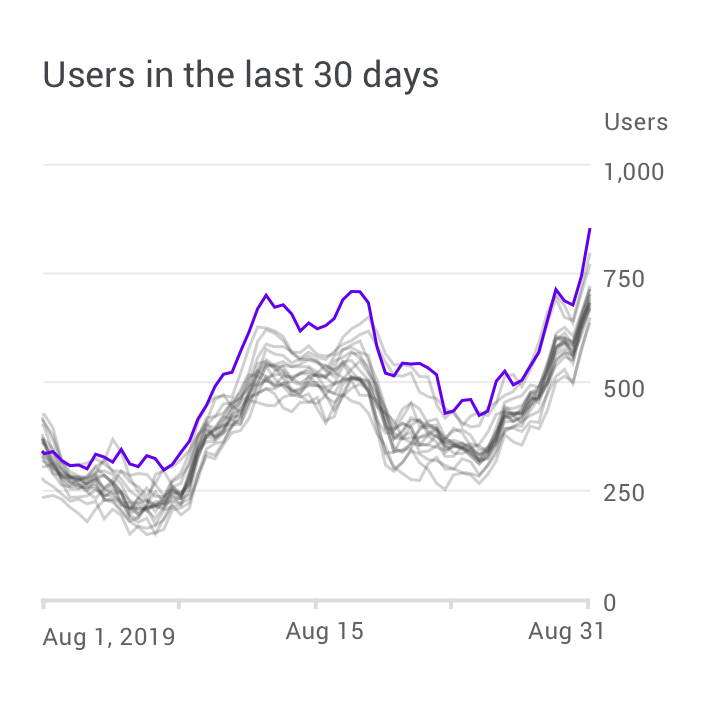

Color can highlight an area of focus, when it is used sparingly. It’s not recommended to use a substantial amount of color highlights, as they can distract and hinder user focus.

Do.

Use a combination of color highlights and neutral colors to provide contrast and emphasis.

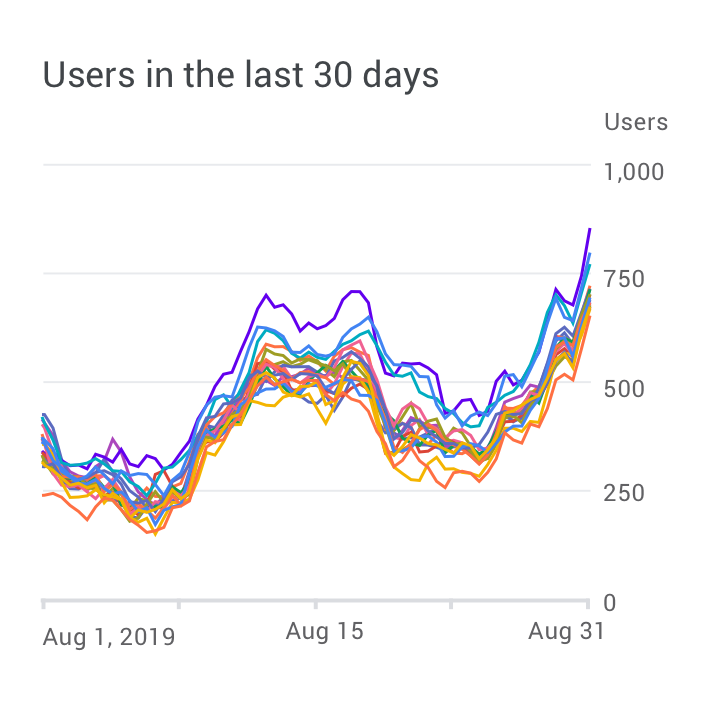

Caution.

Many colors in a single chart can hinder focus.

Color indicates meaning

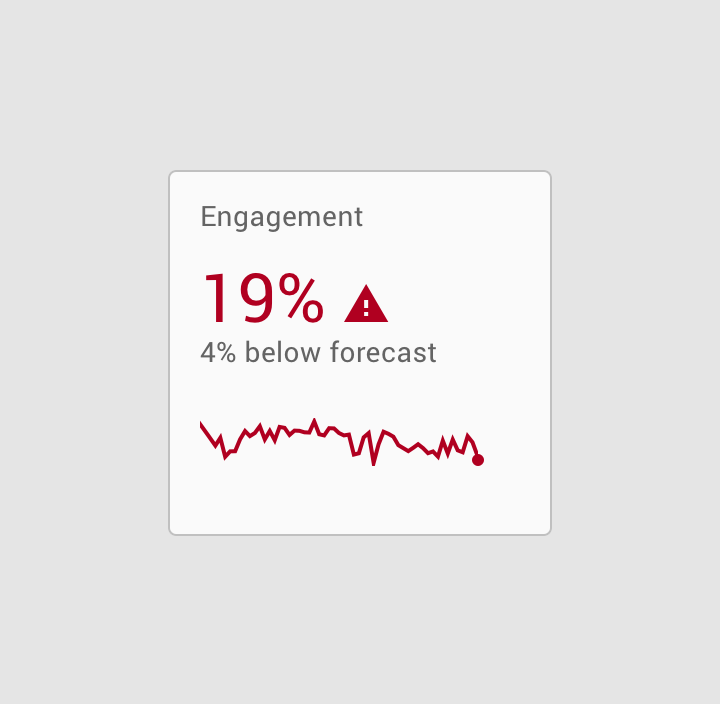

Do.

Reinforce the meaning of chart colors with other visual cues, like icons.

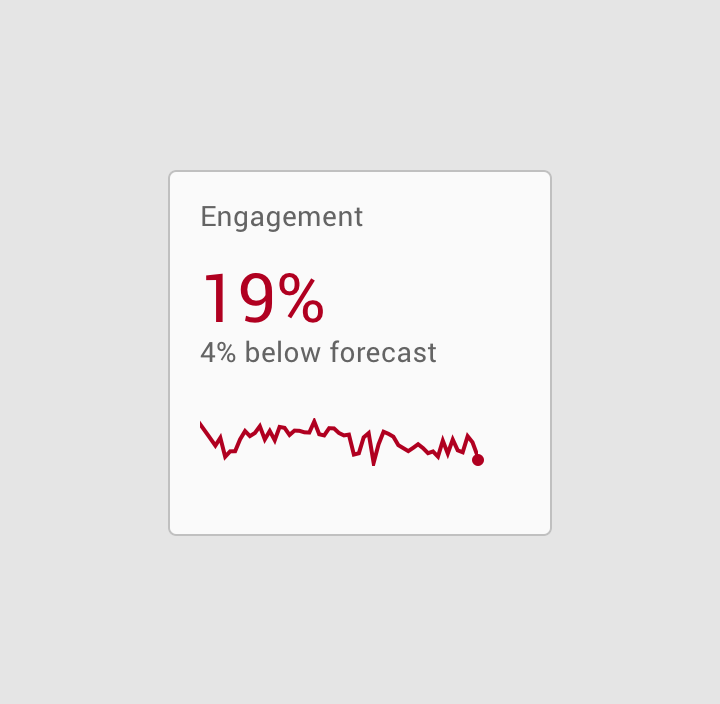

Don’t.

Don’t use color alone to indicate meaning.

Accessibility

To accommodate users who don’t see color differences, you can use other methods to accentuate data, such as high-contrast shading, shape, or texture.

Applying text labels to data also helps clarify its meaning, while eliminating the need for a legend. See more in color contrast.

Line

Chart lines can express qualities about data, such as hierarchy, highlights, and comparisons. Line styles can be styled in different ways, such as using dashes...

Read More

Chart lines can express qualities about data, such as hierarchy, highlights, and comparisons. Line styles can be styled in different ways, such as using dashes or varied opacities.

Lines can be applied to specific elements, including:

  • Annotations
  • Forecasting elements
  • Comparative tools
  • Confidence intervals
  • Anomalies

Do.

Vary a line’s texture to represent different data types.

Don’t.

Don't use different colors to show periodical variation for the same data category.

Typography

Text can be used to label different chart elements, including: The text with the highest level of hierarchy is usually the chart title, with axis...

Read More

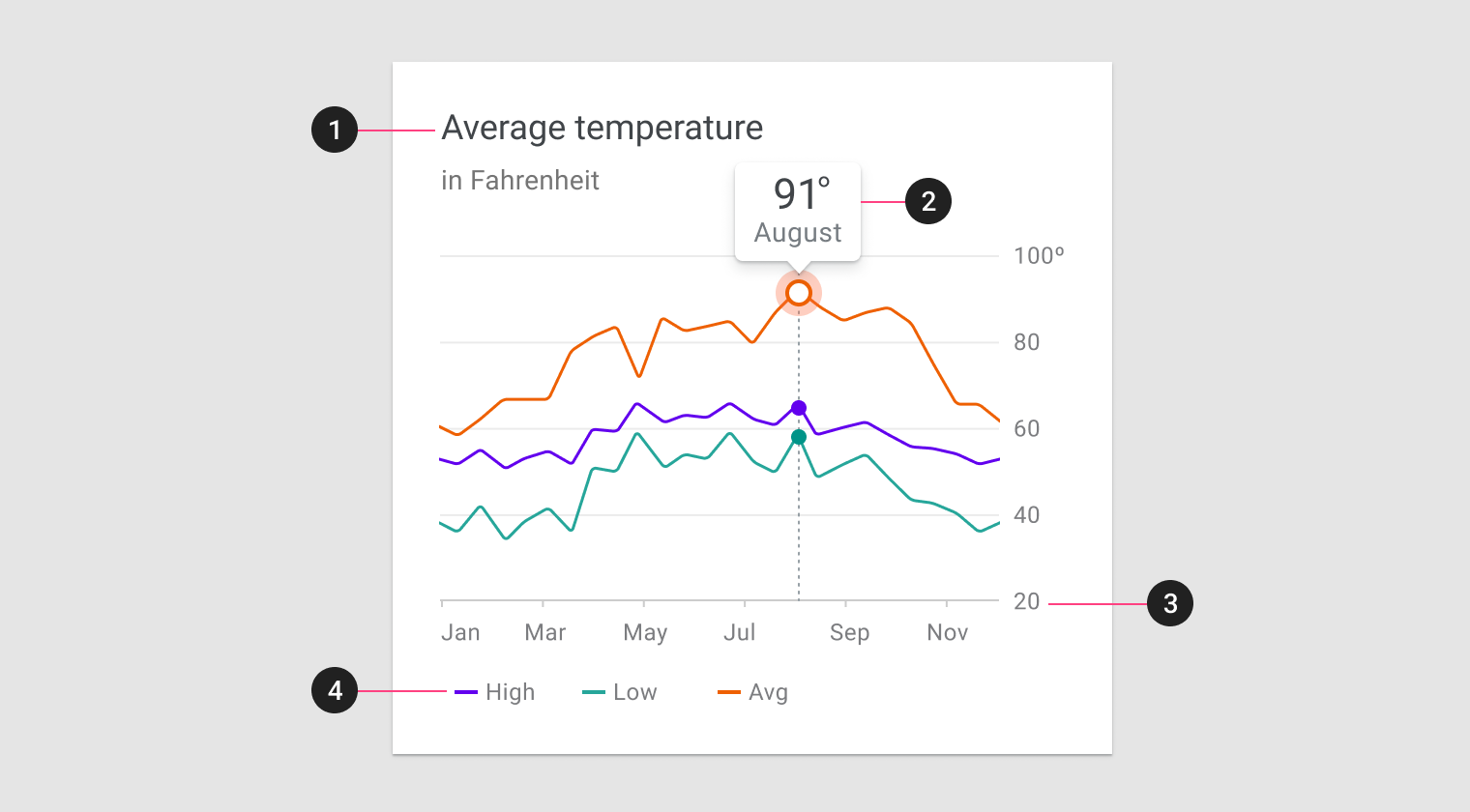

Text can be used to label different chart elements, including:

  • Chart titles
  • Data labels
  • Axis labels
  • Legend

The text with the highest level of hierarchy is usually the chart title, with axis labels and the legend having the lowest level of hierarchy.

Scale category

Typeface

Font

Size

  1. Chart title

Roboto

Regular

18pt

Chart subtitle

Roboto

Regular

14pt

  1. Data label

Roboto

Regular

22pt

Sub-label

Roboto

Regular

14pt

  1. Axis labels

Roboto

Regular

12pt

  1. Legend labels

Roboto

Regular

12pt

Text weight

Headings and varying font weights can communicate which content is more (or less) important than other content in the hierarchy. However, these treatments should be used sparingly, with a limited number of typographic styles.

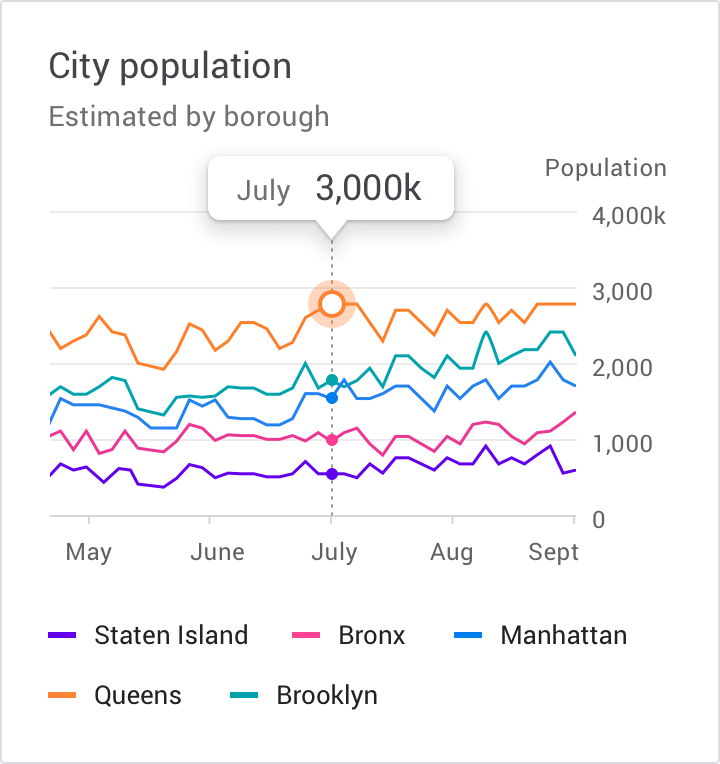

Do.

Bold used just for one or two key elements creates a balanced design.

Don’t.

Bold used on too many elements can make it harder to identify important elements.

Iconography

Iconography can represent different types of data in a chart and improve a chart’s overall usability. Iconography can be used for: When placing icons in...

Read More

Iconography can represent different types of data in a chart and improve a chart’s overall usability.

Iconography can be used for:

  • Categorical data to differentiate groups or categories
  • UI controls and actions, such as filter, zoom, save, and download
  • States, such as errors, no data, completed states, and danger

When placing icons in a chart, it’s recommended to use universally recognizable symbols, particularly when representing actions or states, such as: save, download, completed, error, and danger.

Do.

Use labels along with icons to clearly represent key information.

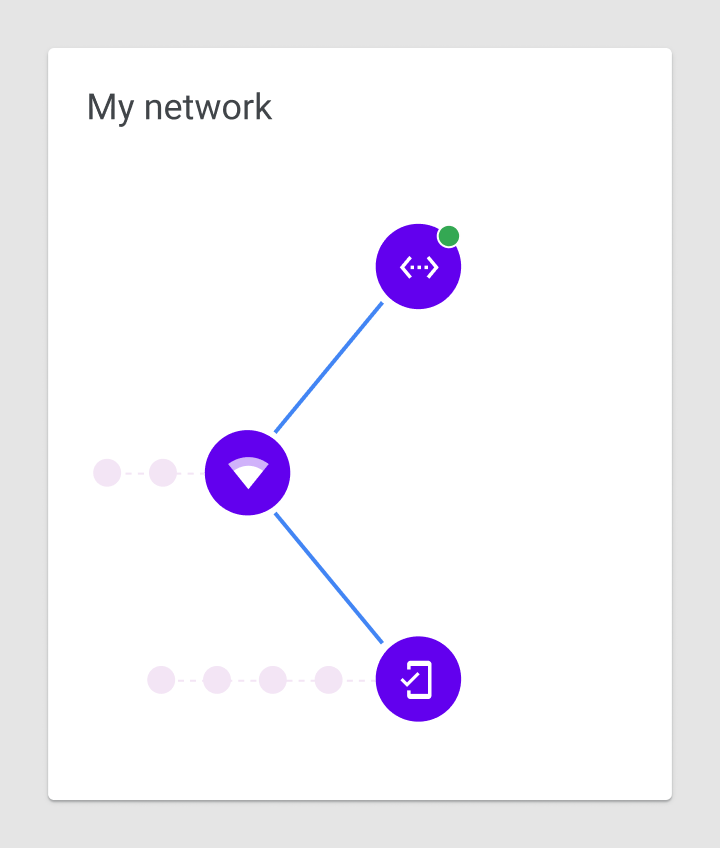

Don’t.

Avoid using solely icons and symbols to represent important information.

Icons supplement color in conveying meaning.

Labelled axis

A labelled axis, or multiple axes, indicates the scale and scope of the data displayed. For example, line charts display a range of values along...

Read More

A labelled axis, or multiple axes, indicates the scale and scope of the data displayed. For example, line charts display a range of values along both horizontal and vertical labelled axes.

Bar charts should always start at the x-axis baseline value of zero.

Consider removing axes altogether to keep the data as the focal point. You can place values directly on their corresponding chart elements.

Bar chart baseline

Bar charts should start at a baseline (the starting value on the y-axis) of zero. Starting at a baseline that isn’t zero can cause the data to be perceived incorrectly.

Do.

A bar chart starting at the zero baseline

Don’t.

Don’t start the baseline at values other than zero. This baseline starts at 20%, making the bar differences look more dramatic.

Axis labels

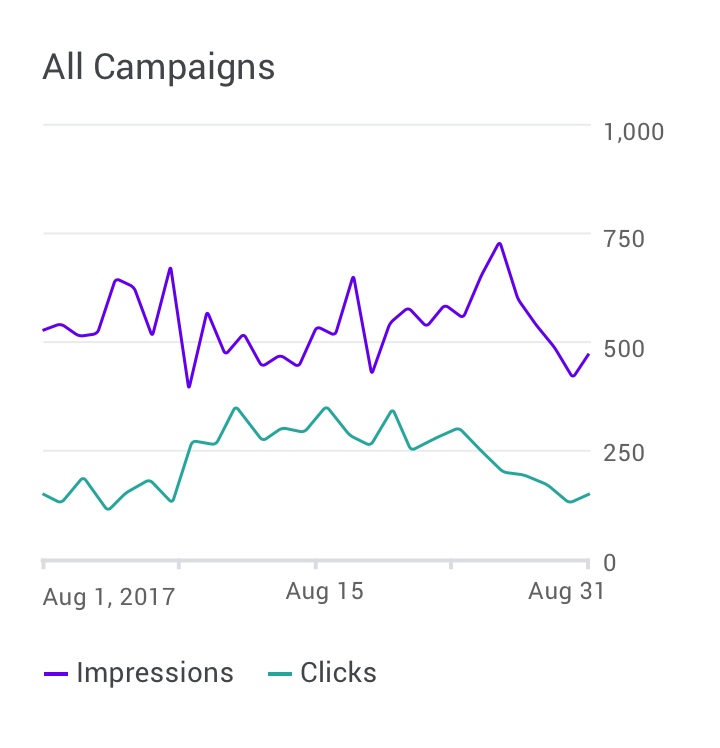

Label usage should reflect the most important data insights in a chart. Axis labels should be used as needed, and in consistent ways across a UI. Their presence should not inhibit reading the chart.

Do.

Support legibility by using a balanced number of axis labels.

Don’t.

Don’t overload the chart with numerous axis labels.

Text orientation

Text labels should be placed horizontally on the chart so that they are easy to read.

Text labels should not:

  • Be rotated
  • Stacked vertically

Do.

Orient text horizontally on bar charts, rotating the bars if needed to make space.

Caution.

Don’t rotate bar labels, as it makes them difficult to read.

Legends and annotation

Legends and annotations describe a chart’s information. Annotations should highlight data points, data outliers, and any noteworthy content. On desktop, it’s recommended to place a...

Read More

Legends and annotations describe a chart’s information. Annotations should highlight data points, data outliers, and any noteworthy content.

  1. Annotation
  2. Legend

On desktop, it’s recommended to place a legend below a chart. On mobile, place the legend above the chart to keep it visible during interactions.

Labels and legends

Chart elements can be labeled directly in simple charts. However, charts that are dense (or part of a larger group of charts) can display labels in a legend.

A line chart using direct labeling

A line chart using a legend

Small displays

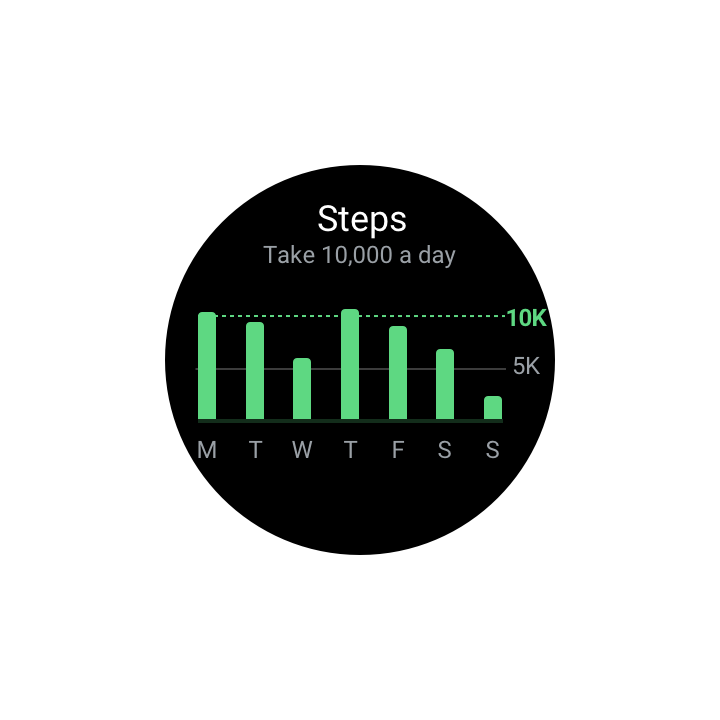

Charts displayed on wearables (or other small screens) should be a simplified version of the mobile or desktop chart.

Read More

Charts displayed on wearables (or other small screens) should be a simplified version of the mobile or desktop chart.

Do.

Annotate key points on the graph to describe the data. In this example, the highest and lowest data values are displayed.

Caution.

Don’t place key data points off-screen, as it requires the user to scroll to see them.

Threshold lines give users context about the data displayed.


Behavior

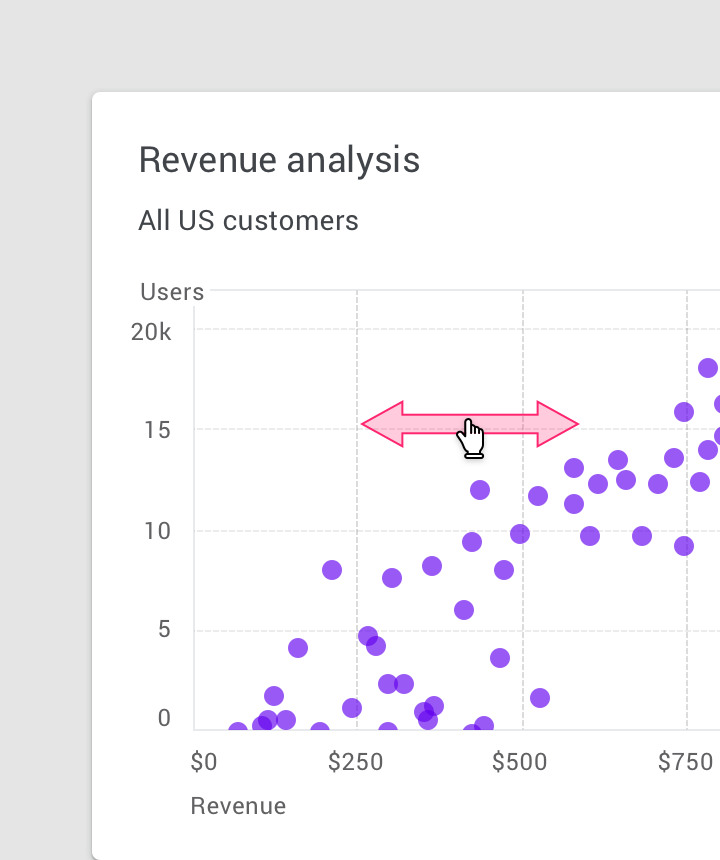

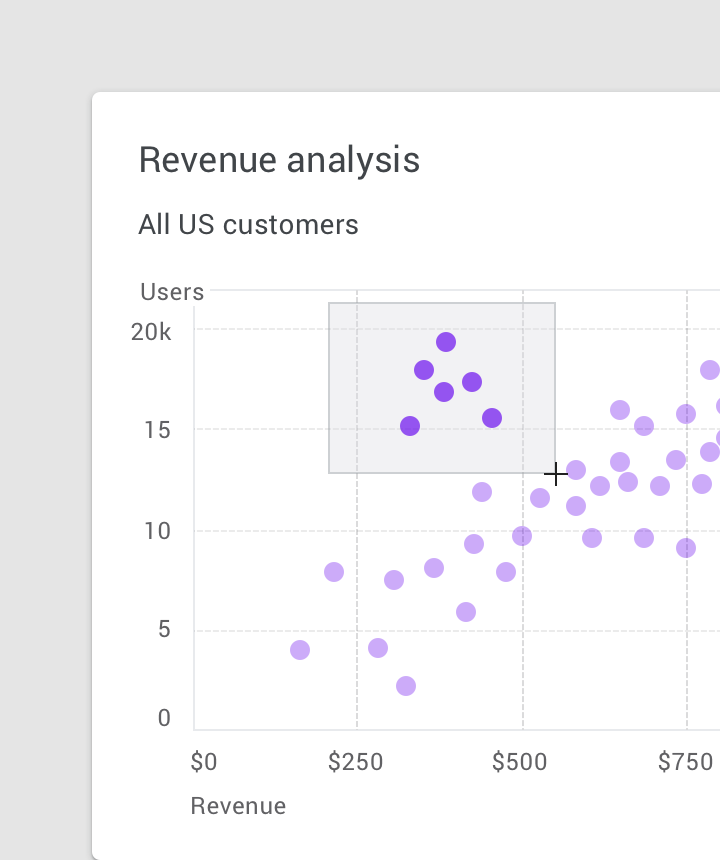

Charts provide interaction patterns that give users control over the data displayed. These patterns let users focus on a chart’s specific values or ranges.

The following recommended interaction patterns, styles, and effects (like haptic feedback) can improve user understanding of chart data:

  • Progressive disclosure provides a clear path to unveiling details, accessible on demand.
  • Direct manipulation allows users to directly act on UI elements, minimizing the number of actions needed on a screen, including: zooming and panning, pagination, and data controls.
  • Changing perspective enables one design to work for different users and data types, such as data controls and motion.

Progressive disclosure

Reveal chart details using progressive disclosure, which allows users to view specific data points as needed.

Read More

Reveal chart details using progressive disclosure, which allows users to view specific data points as needed.

Revealing details (Desktop)

On desktop, a hover state can reveal more detailed data.

Revealing details (Mobile)

On mobile, a touch and hold gesture displays a tooltip placed above the chart.

Zooming and panning

Zooming and panning are popular chart interactions that affect how closely users can study data and explore the chart UI. Zooming changes whether the UI...

Read More

Zooming and panning are popular chart interactions that affect how closely users can study data and explore the chart UI.

Zooming

Zooming changes whether the UI is shown from either nearer or farther away. The device type determines how zooming is performed.

  • On desktop, zoom occurs through clicking and dragging, or scrolling
  • On mobile, zooms occurs using pinch to zoom

When zooming isn’t the primary action, it can be implemented via clicking and dragging (on desktop) or double tapping (on mobile).

Panning

Panning allows the user to explore the UI that expands beyond the screen. It should be constrained in ways that make sense for the data displayed. For example, if one dimension of a chart is more important than another, the direction of panning can be restricted to only that direction.

The act of panning is often paired with zooming.

On mobile, panning is often implemented via gestures, such as one-finger swiping.

Zooming on desktop

Panning on desktop

Pagination

On mobile, pagination is a common pattern that allows users to view the previous or next chart by swiping right or left.

Read More

On mobile, pagination is a common pattern that allows users to view the previous or next chart by swiping right or left.

On mobile, a user can swipe to the right to view the previous day.

Data controls

Data can be filtered or changed using toggle controls, tabs, and drop-downs. These controls can also display metrics, while users adjust the controls.

Read More

Data can be filtered or changed using toggle controls, tabs, and drop-downs.

These controls can also display metrics, while users adjust the controls.

Toggle controls, tabs, and dropdown menus can change or filter data.

Motion

Motion can enhance and reinforce the relationship between data and how users interact with it. Motion should be used purposefully (not decoratively), expressing the connection...

Read More

Motion can enhance and reinforce the relationship between data and how users interact with it. Motion should be used purposefully (not decoratively), expressing the connection between different states and spaces.

Motion should feel logical, smooth, and responsive, without obstructing the user's journey.

In this example, data animates between being displayed by day and then by week. Data outside of the selected date range isn’t displayed during the transition, reducing complexity.

Animation shows how two different diagrams are related.

Empty states

Empty graphs and charts can display content that suggests what to expect when data is available. Where applicable, character animations can be shown to provide...

Read More

Empty graphs and charts can display content that suggests what to expect when data is available.

Where applicable, character animations can be shown to provide delight and encouragement.

Characterful animations enhance an otherwise empty graph.


Dashboards

Data visualization can be displayed across a series of multiple charts, in UIs called dashboards. Multiple, separate charts can sometimes better communicate a story, rather than one complex chart.

Dashboard design

A dashboard’s purpose should be reflected in its layout, style, and interaction patterns. Its design should suit how it will be used, whether it’s a...

Read More

A dashboard’s purpose should be reflected in its layout, style, and interaction patterns. Its design should suit how it will be used, whether it’s a tool for making a presentation or deeply exploring data.

A dashboard should:

  • Prioritize the most important information (using layout)
  • Display a focal point that prioritizes information according to hierarchy (using color, position, size, and visual weight)

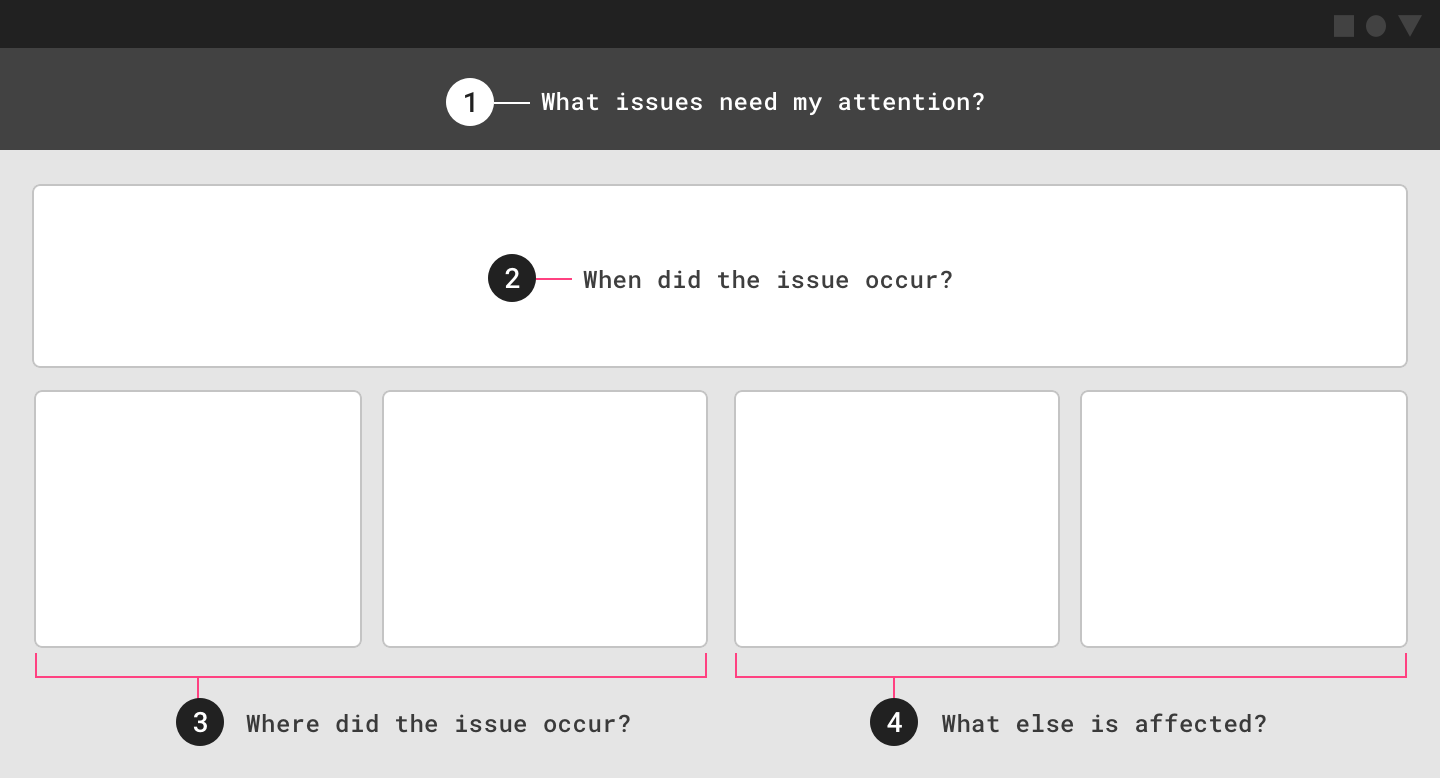

Information should be prioritized and arranged based on the questions asked of the data. In this example operations dashboard, the following user questions are considered:
1. Issues that need attention
2. Time that issue occurred
3. Location that issues occurred
4. Other variables affected by the issue



Analytics dashboards

Analytics dashboards enable users to explore multiple sets of data and discover trends. Usually these dashboards include complex charts that enable the discovery of data...

Read More

Analytics dashboards enable users to explore multiple sets of data and discover trends. Usually these dashboards include complex charts that enable the discovery of data insights.

Use cases include:

  • Highlighting trends over time
  • Answering “why” and “what if” questions
  • Forecasting
  • Creating in-depth reports

Analytics dashboard examples:

  • Tracking ad campaign performance over time
  • Tracking the sales and revenue generated by a product through its lifecycle
  • Showing city population trends over time
  • Tracking climate data over time

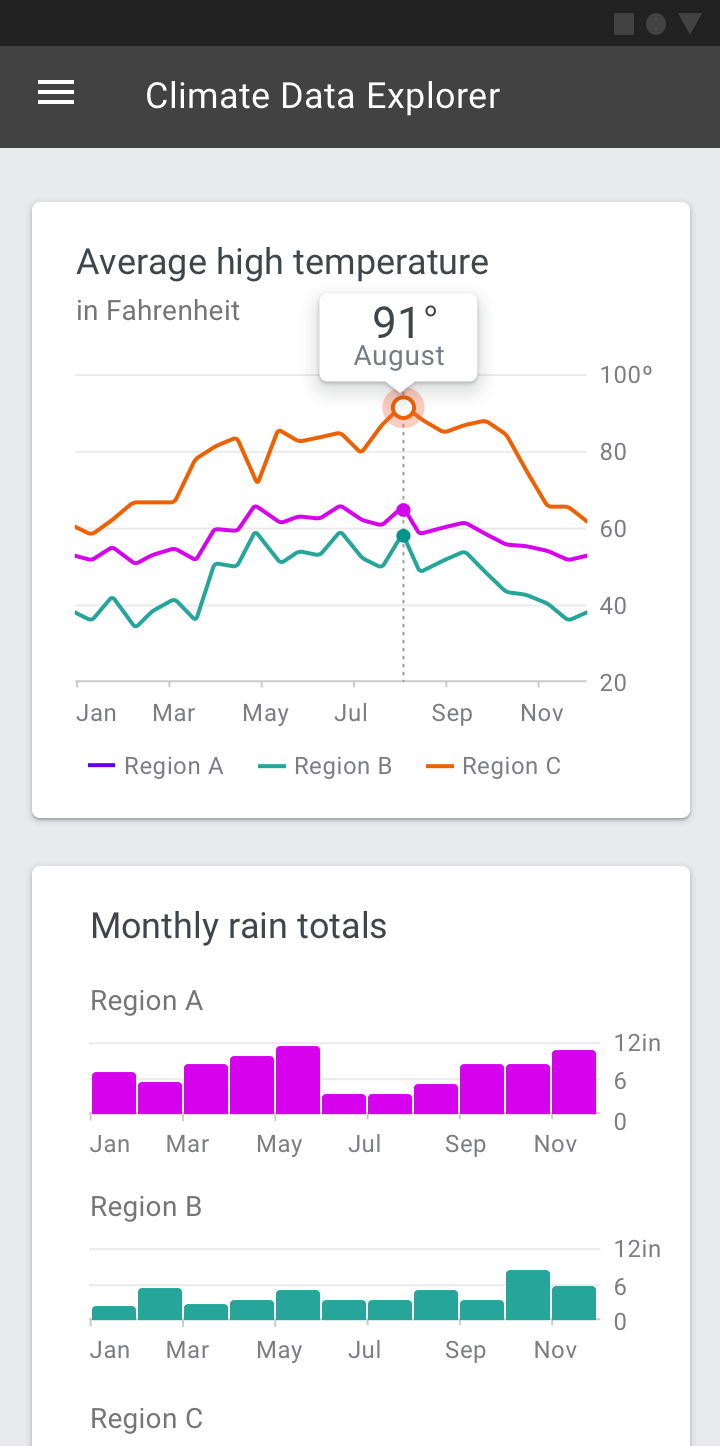

Analytics dashboard displaying climate data

Operations dashboards

Operations dashboards are designed to answer a predefined set of questions. They are typically used to complete monitoring-related tasks. In most cases, these types of...

Read More

Operations dashboards are designed to answer a predefined set of questions. They are typically used to complete monitoring-related tasks.

In most cases, these types of dashboards feature current information arranged a set of simple charts.

Use cases include:

  • Tracking current progress against a goal
  • Tracking system performance in real time

Operations dashboard examples:

  • Tracking call center activities such as call volume, wait times, call length, or call types
  • Monitoring the health of an app running on Cloud.
  • Displaying stock market performance
  • Monitoring telemetry data on a race car

Operations dashboard displaying device storage metrics

Presentation dashboards

Presentation dashboards provide a curated snapshot on a topic of interest. These dashboards typically include a few small charts or a scorecard, with dynamic headlines...

Read More

Presentation dashboards provide a curated snapshot on a topic of interest.

These dashboards typically include a few small charts or a scorecard, with dynamic headlines that explain the trends and insights provided in each supporting chart.

Use cases include:

  • Providing an overview of key performance indicators
  • Creating a high-level executive summary

Presentation dashboard examples:

  • Providing an overview of investment account performance
  • Providing a summary of product sales and market share data

Analytics dashboard displaying website usage data
