Applying density

Material Design offers guidance on high-density spacing for use cases where increased density improves the user experience.

beta

Guidance in beta reflects the latest Material Design insights. It may significantly change to support new research and code.

Learn more or send us your feedback.


Usage

Scannable

Dense UIs improve the ease of viewing and navigating large amounts of content.

Prioritized

Dense UIs help users focus by reducing the space between actions.

Visible

Increasing density allows more content and actions to fit on a single screen.

Density guidelines

Material density guidelines are a resource for understanding when and why applying density can improve user experiences. Supported by code, Material Component density can be...

Read More

How to apply

Material density guidelines are a resource for understanding when and why applying density can improve user experiences. Supported by code, Material Component density can be adjusted cohesively on a scale. Guidance on using the density scale is explained in component density and platform support can be found in implementation.

When to apply

How users interact with a component should determine whether or not you increase the density in a UI. When users view and interact with large amounts of information, high density components can improve the experience.

By making more content available on-screen, increasing the density of lists, tables, and long forms makes information easier to scan, view, and compare.

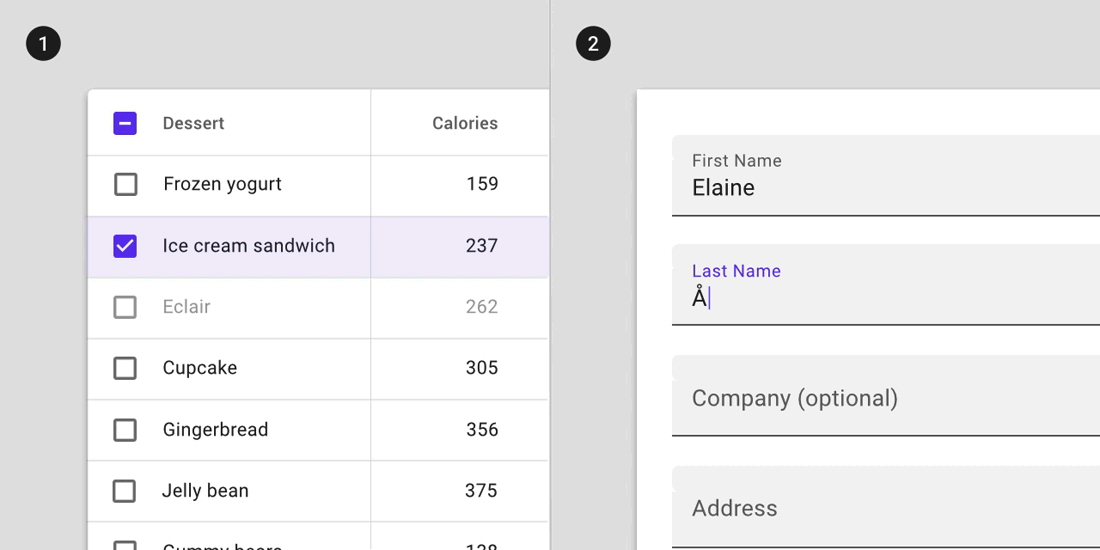

The data table of desserts and calorie count and the form contract and expand
  1. Increasing the density of a data table

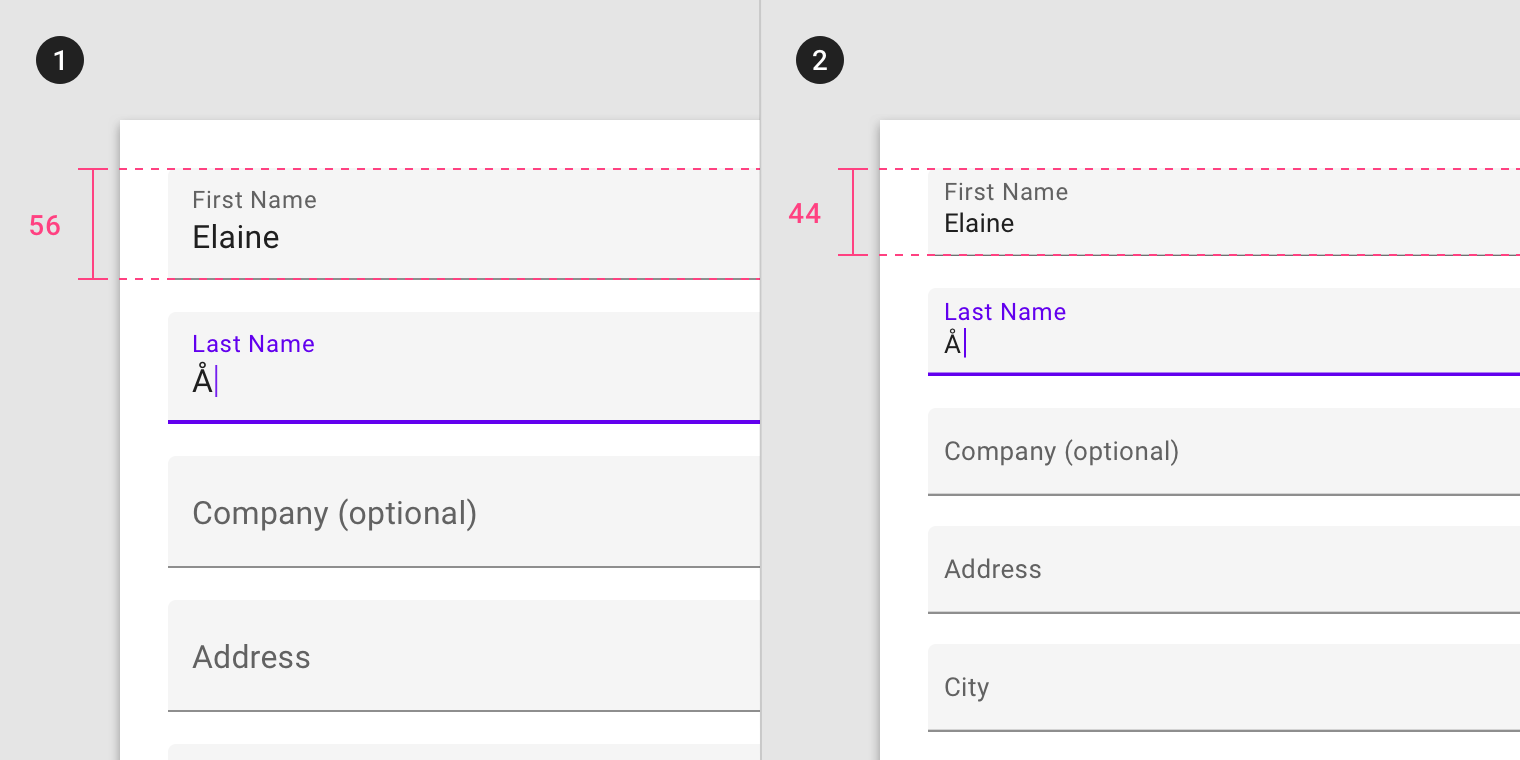

  2. Increasing the density of a form

When not to apply density

Tasks and alert-based components should not increase density. Don’t increase the density of components that involve focused tasks, such as interacting with a dropdown menu...

Read More

Tasks and alert-based components should not increase density.

Focused tasks

Don’t increase the density of components that involve focused tasks, such as interacting with a dropdown menu or picker. Increasing density on components such as date pickers reduces usability by limiting tappable space.

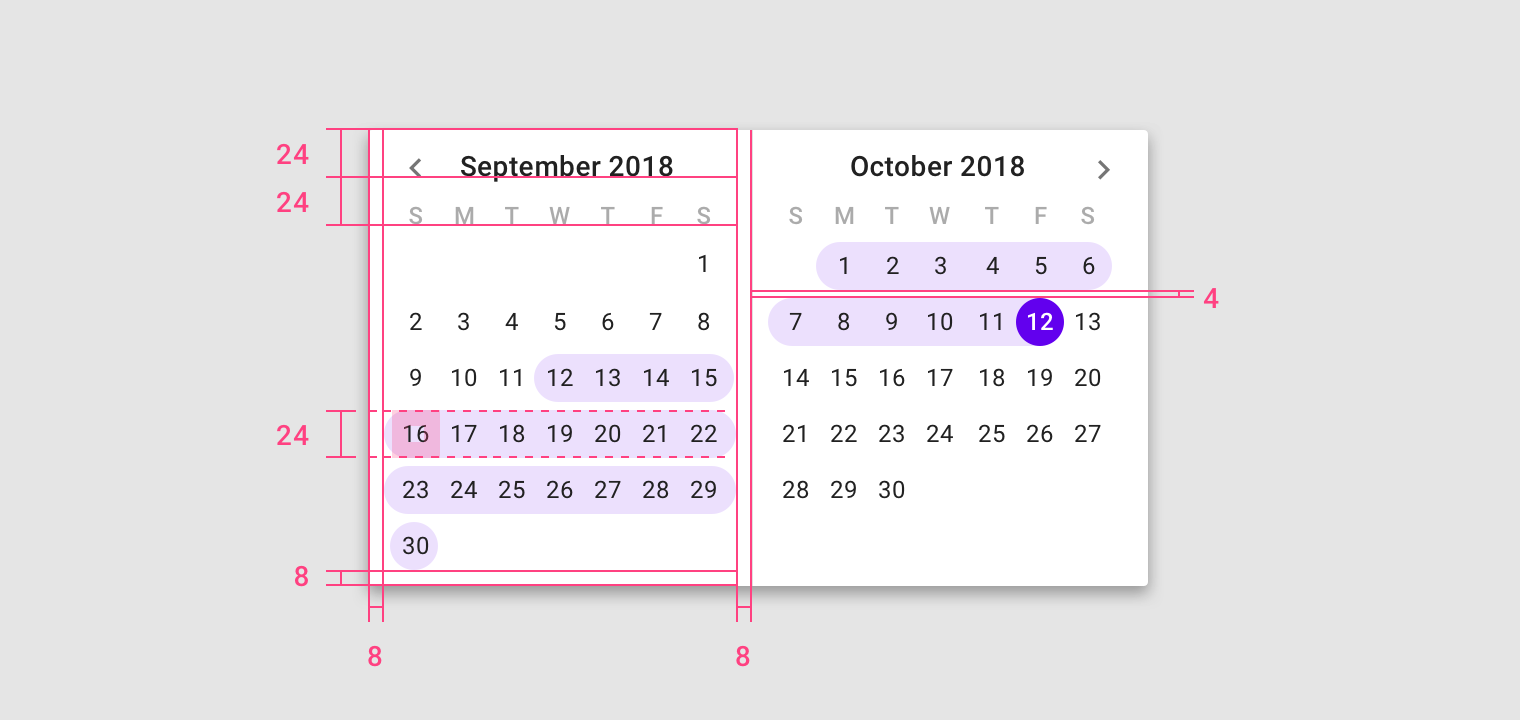

Calendar with dates from September 12 to October 12 selected

Don’t.

Don’t increase the density in components for focused tasks, such as date pickers.

Alerts and messaging

Don’t increase the density in components that alert the user of changes, such as snackbars or dialogs. Increasing the density of alerts makes them less effective at attracting user attention. In the example of dialogs, readability and prominence of a message are compromised when density increases.

Permissions dialog with two action buttons

Don’t.

Don’t increase the density of alert and message components, such as dialogs.


Layout

Grid and component density

Maintain balance between component density and the grid layout. To create scannable groups of content, use a less-dense grid layout in combination with high-density components....

Read More

Maintain balance between component density and the grid layout.

To create scannable groups of content, use a less-dense grid layout in combination with high-density components. The denser your components become, the larger the margins and gutter widths should be. Combining a dense layout grid with dense components can make differentiating groups of content harder for users.

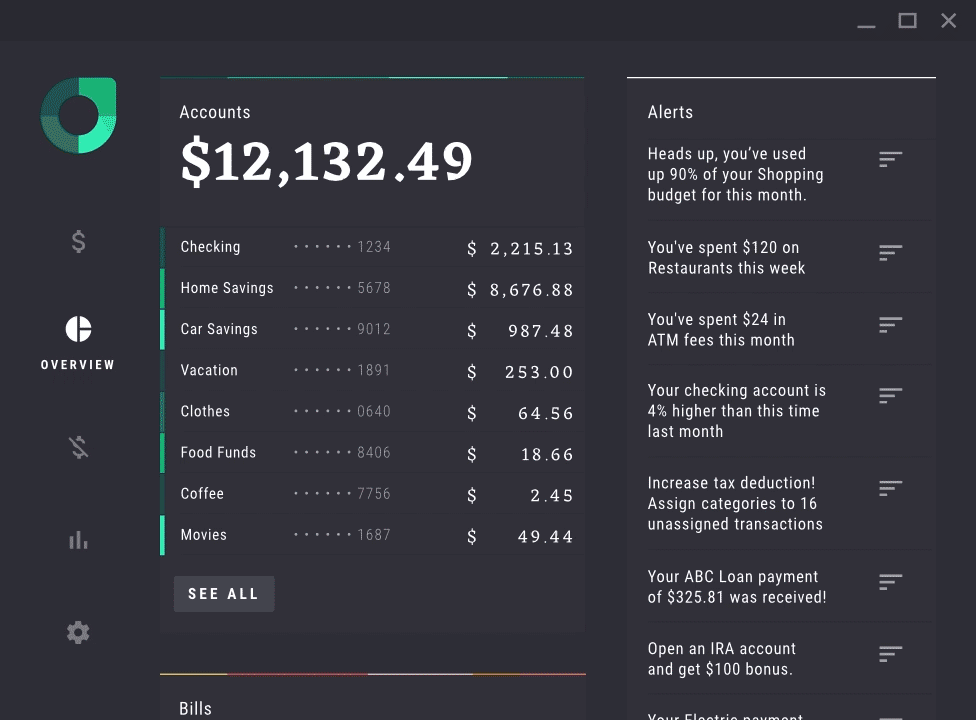

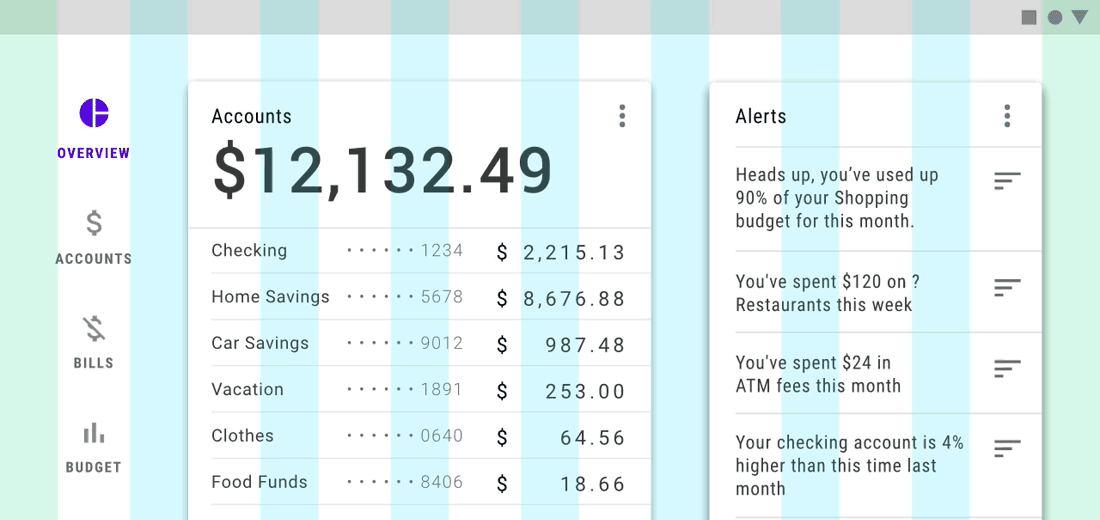

Financial app example with margins and gutters

Do.

Components with greater density should have lower density margins and gutters.

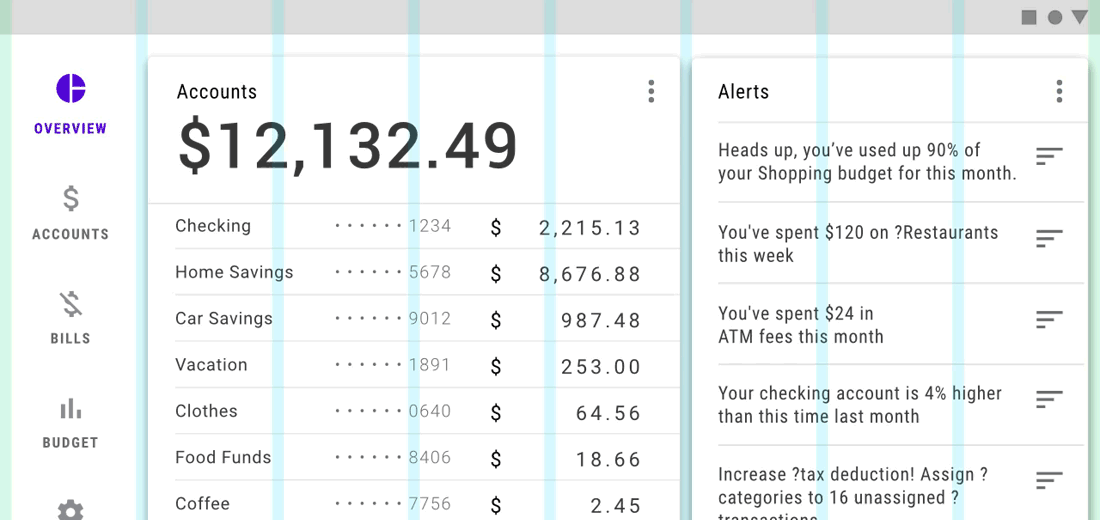

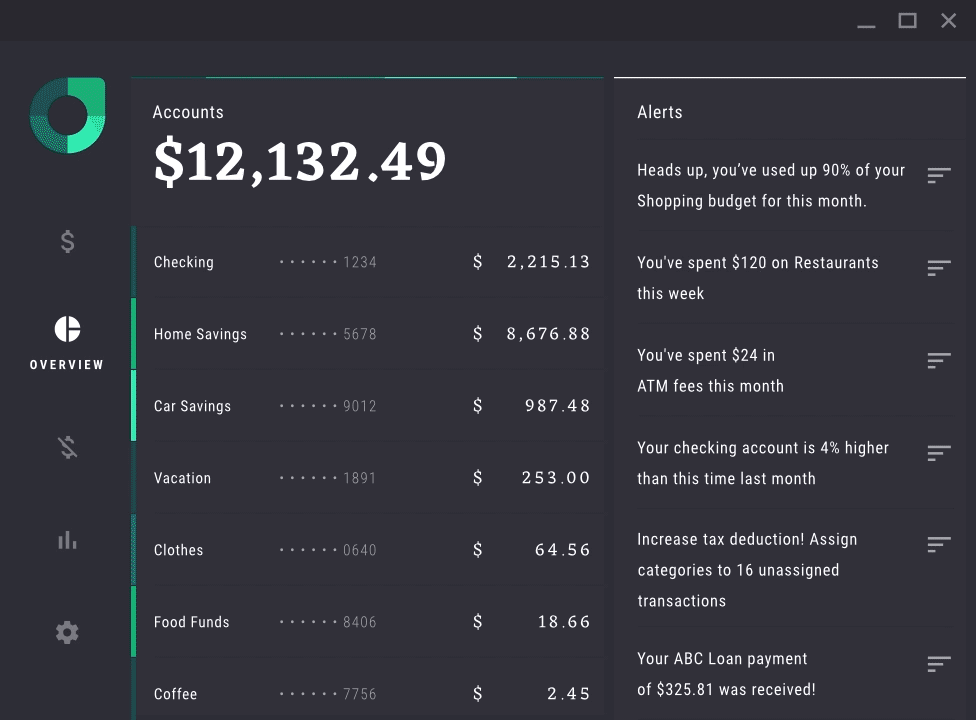

Financial app example with margins and gutters

Don’t.

Don’t use a dense layout grid with dense components.


Components

Applying density to components

Component density should not be adjusted in isolation. Instead, apply density consistently to create a cohesive component set. When you adjust one component’s density, consider...

Read More

Component density should not be adjusted in isolation. Instead, apply density consistently to create a cohesive component set. When you adjust one component’s density, consider how that change will affect other components in your app.

The tool below illustrates Material Components changing in coordination with three density settings: default, comfortable, and compact.

Interactive demo

Different densities across a set of Material Components.

Density scale

The density scale allows you to control the density of individual components when needed. The density scale is numbered, starting at 0 for a component’s...

Read More

The density scale allows you to control the density of individual components when needed.

The density scale is numbered, starting at 0 for a component’s default density. The scale moves to negative numbers (-1, -2, -3) as space decreases, creating higher density. Each increment represents a decrease in the height of a component by 4dps.

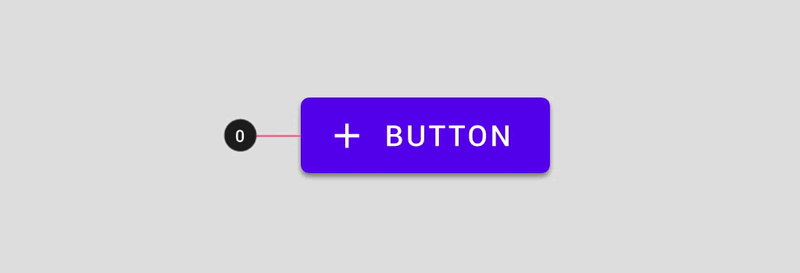

The density scale applied to a button

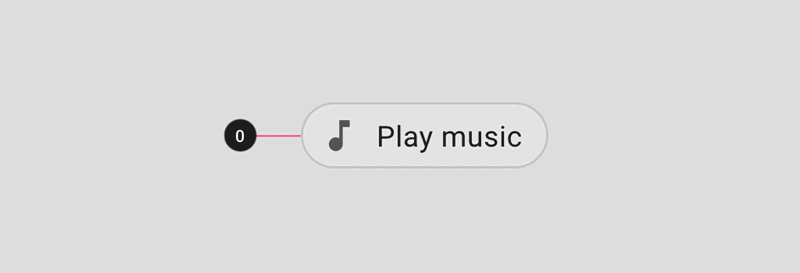

Don’t select a number from the density scale that breaks your component.

Don’t.

Don’t break components by increasing density too much. The density of a chip at -4 breaks the component.

Spacing methods

When a component’s density increases, the padding and alignment remains consistent, but the dimension changes. Do not change the padding of a component when increasing...

Read More

When a component’s density increases, the padding and alignment remains consistent, but the dimension changes.

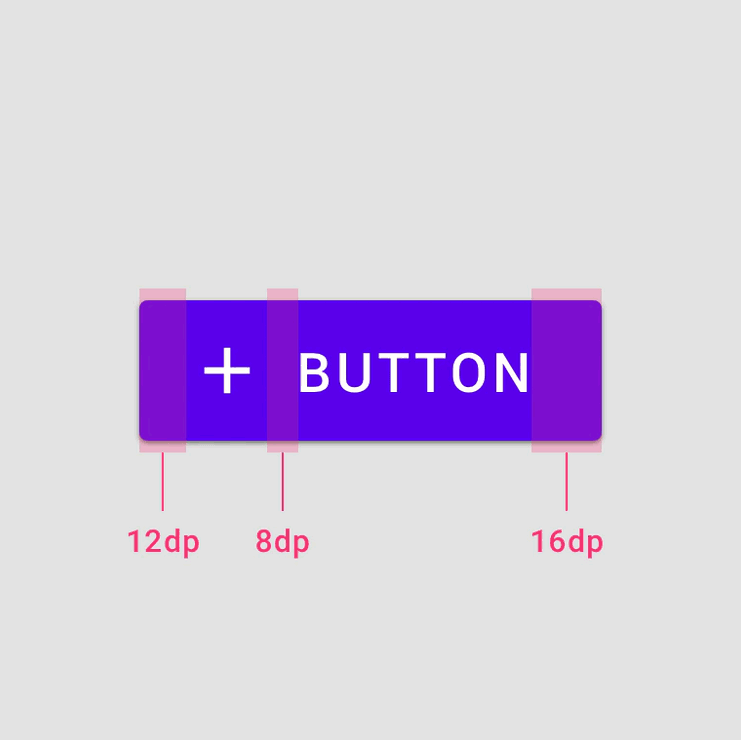

Padding

Do not change the padding of a component when increasing its density. Component padding affects height and reducing padding can affect user interactions negatively.

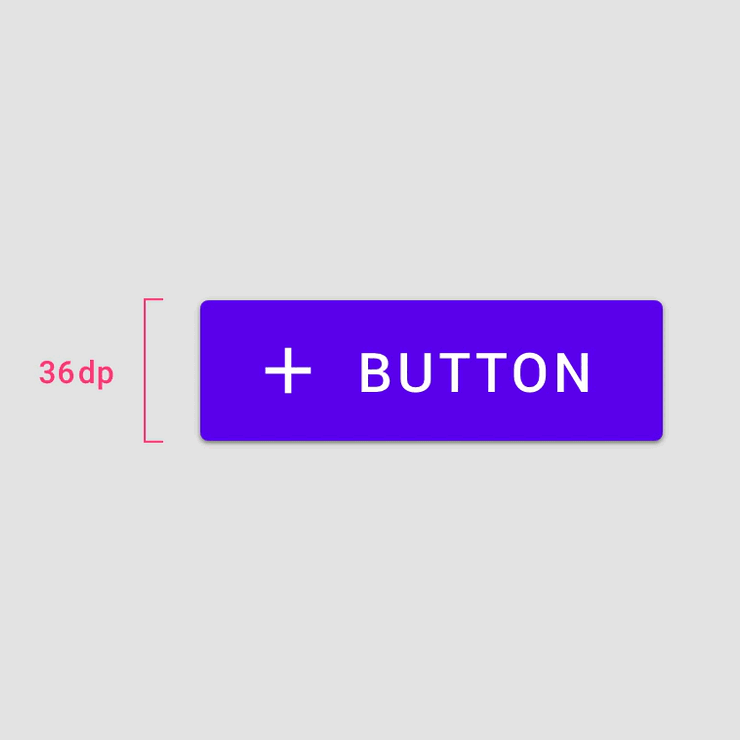

Dimensions

Change dimensions when increasing the density of components. Component dimensions affect the length and height of the component or element.

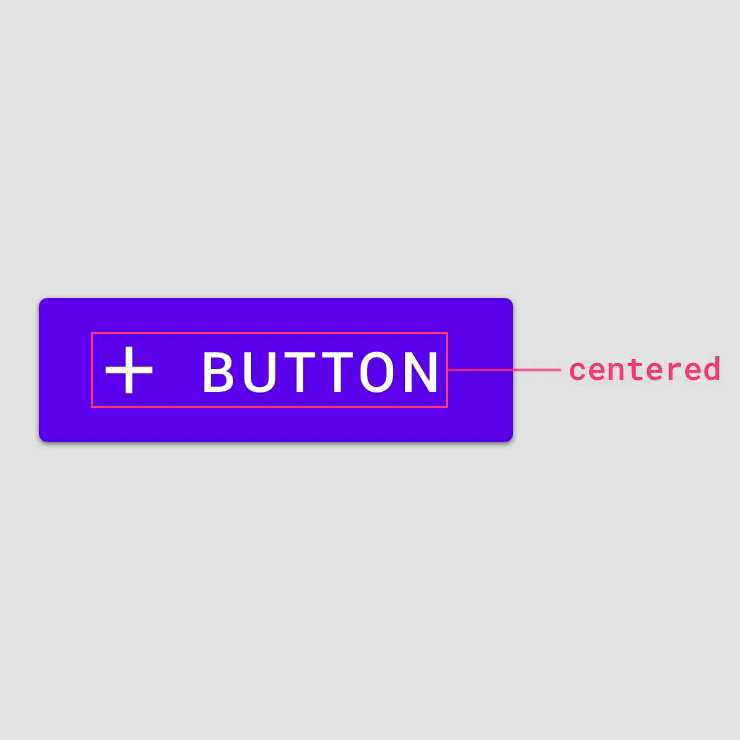

Alignment

Use a center specification to align elements within component containers. Center aligning elements allows component heights to be adjusted without additional alignment of elements.

Spacing multiple elements

When multiple elements are stacked vertically within a component, use 4dp increments to separate them. Center the grouped element within the component container.

1. 20dp subtitle example and 2. Centered subtitle example with error icon
  1. Elements separated by 20dp.
  2. Element group centered within the component container vertically.

Accessibility

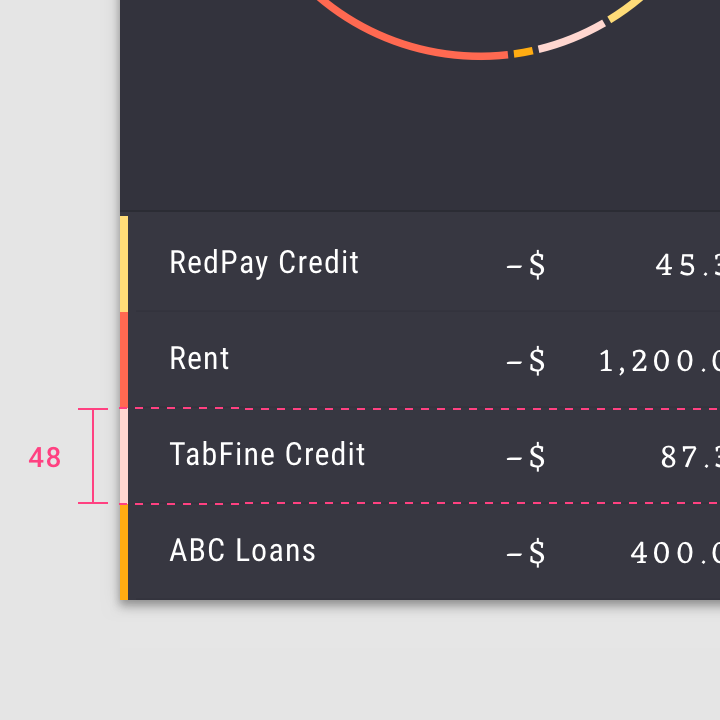

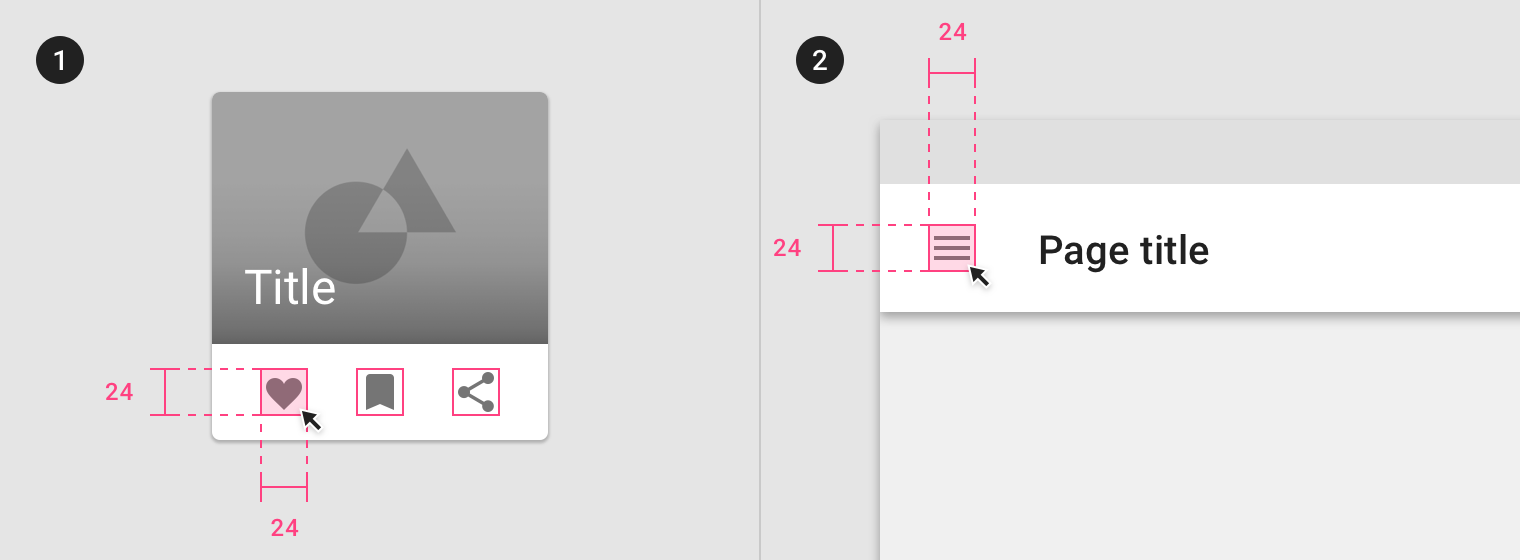

Touch targets

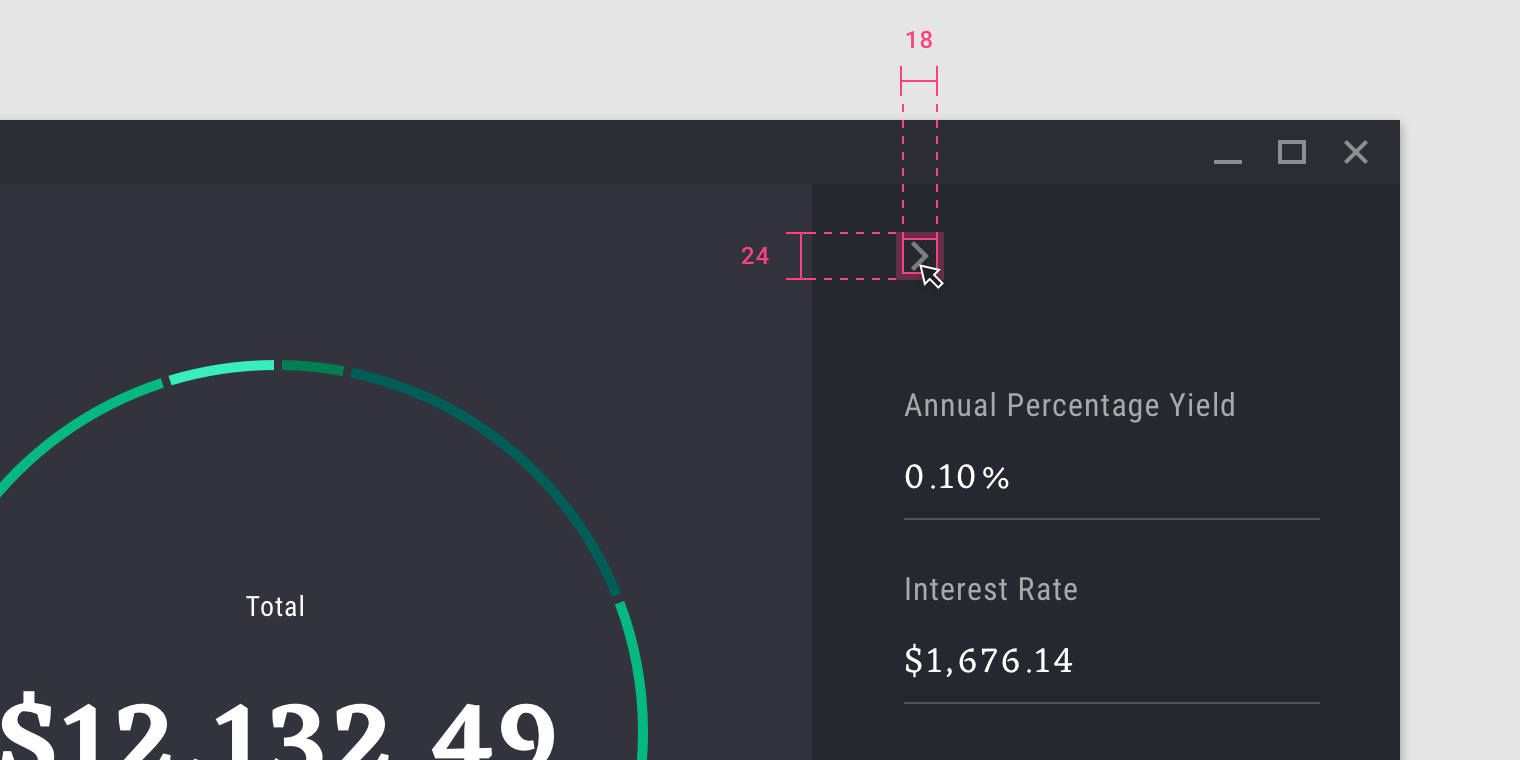

Touch targets apply to any device that receives both touch and non-touch input. To balance information density and usability, the touch target for default density...

Read More

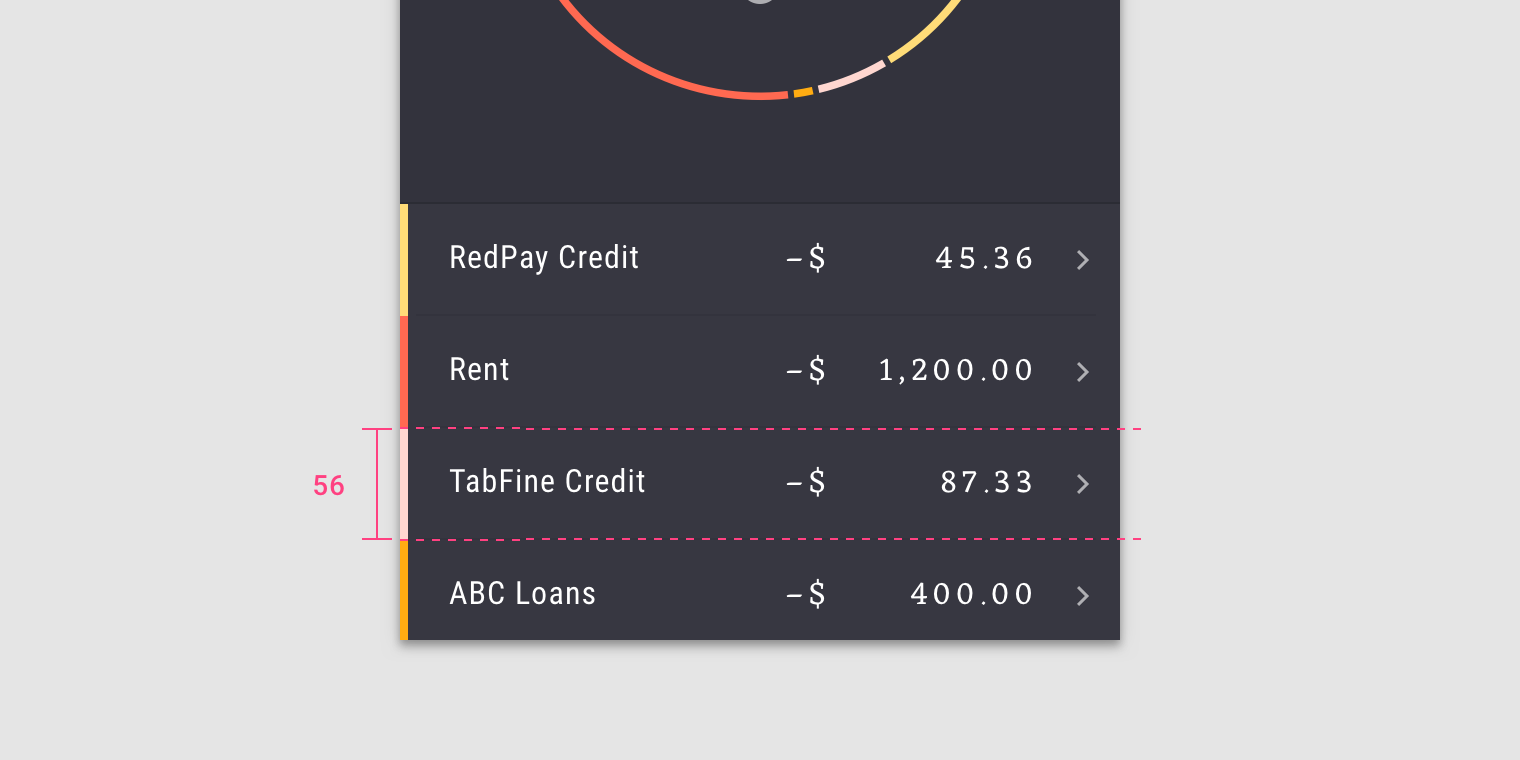

Touch targets apply to any device that receives both touch and non-touch input. To balance information density and usability, the touch target for default density components should be at least 48 x 48 dp, with at least 8dp of space between each target.

1. Avatar 2. Icon 3. Button touch targets

Touch target minimum of 48 x 48 dp

  1. 40dp element, 48dp touch target
  2. 24dp element, 48dp touch target
  3. 36dp element, 48dp touch target

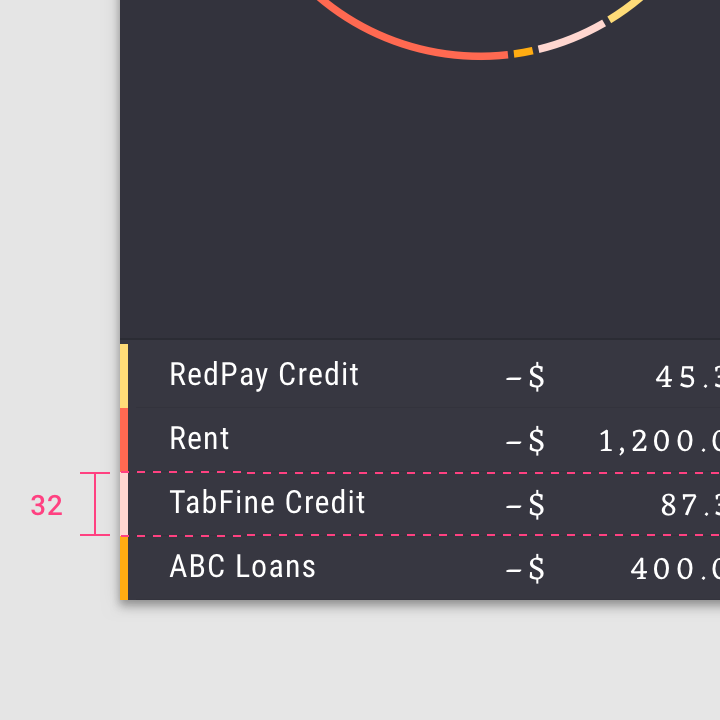

48 x 48 dp minimum touch targets should be the default experience in your product. Users must opt in to high density component experiences because higher density components do not meet accessibility requirements.

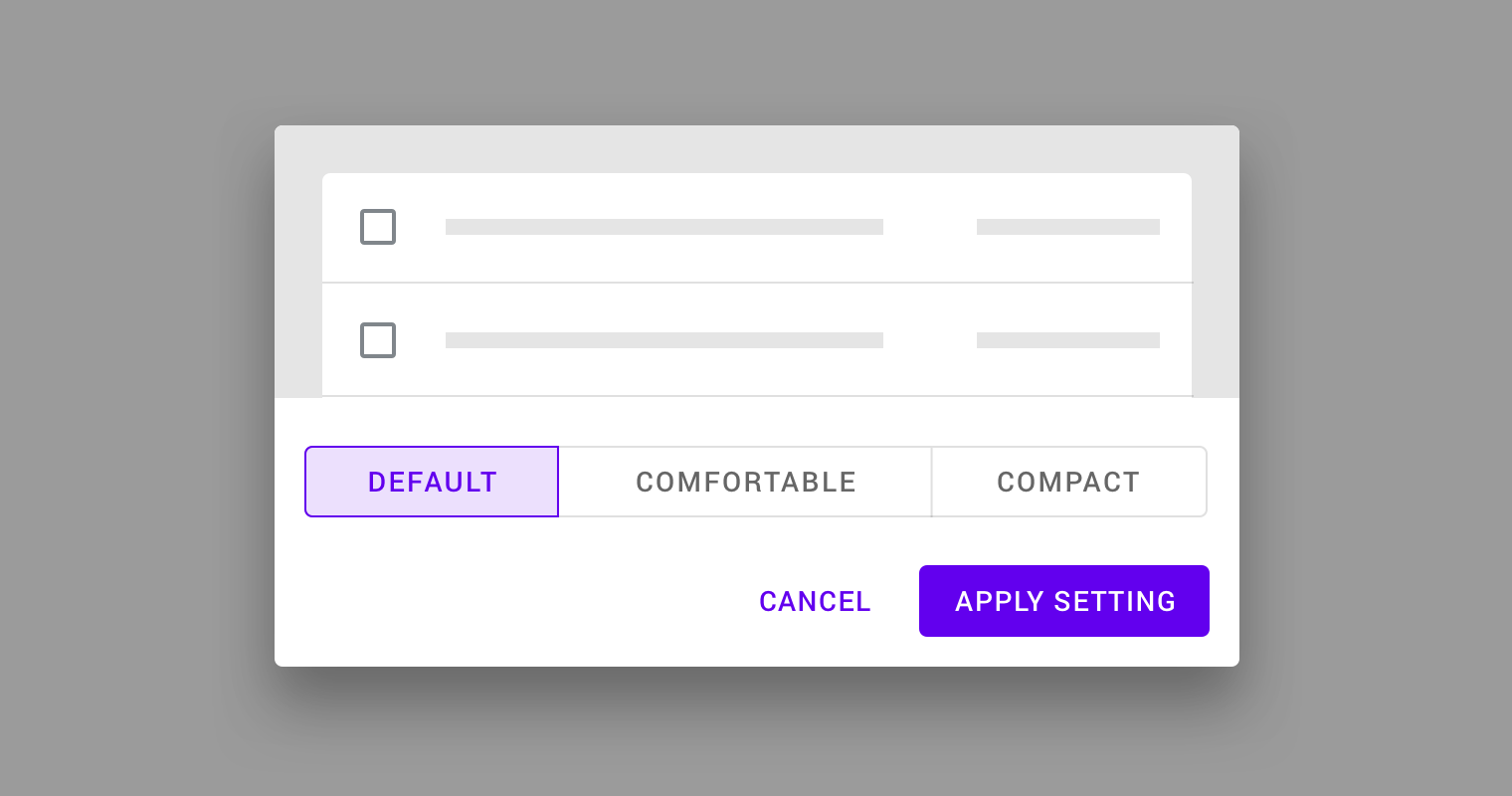

Default, comfortable, and compact components settings selection

A pattern for users to opt in to a denser component experience


Typography

Line height

Line height is the space between lines of text. Line height can be used as a way to create density in typographic layouts.

Read More

Line height is the space between lines of text. Line height can be used as a way to create density in typographic layouts.

Photography class descriptions with small and large line height
  1. Larger line height: 44dp, 40dp, 44dp, 32dp
  2. Smaller line height: 36dp, 32dp, 40dp, 20dp

Implementation

Density support for each platform is indicated below.

Platform

Status

Android

Planned

iOS

Planned

Web

Available

Flutter

Planned
