The type system

Use typography to present your design and content as clearly and efficiently as possible.


Type Scale

The Material Design type scale includes a range of contrasting styles that support the needs of your product and its content.

The type scale is a combination of 13 styles that are supported by the type system. It contains reusable categories of text, each with an intended application and meaning.

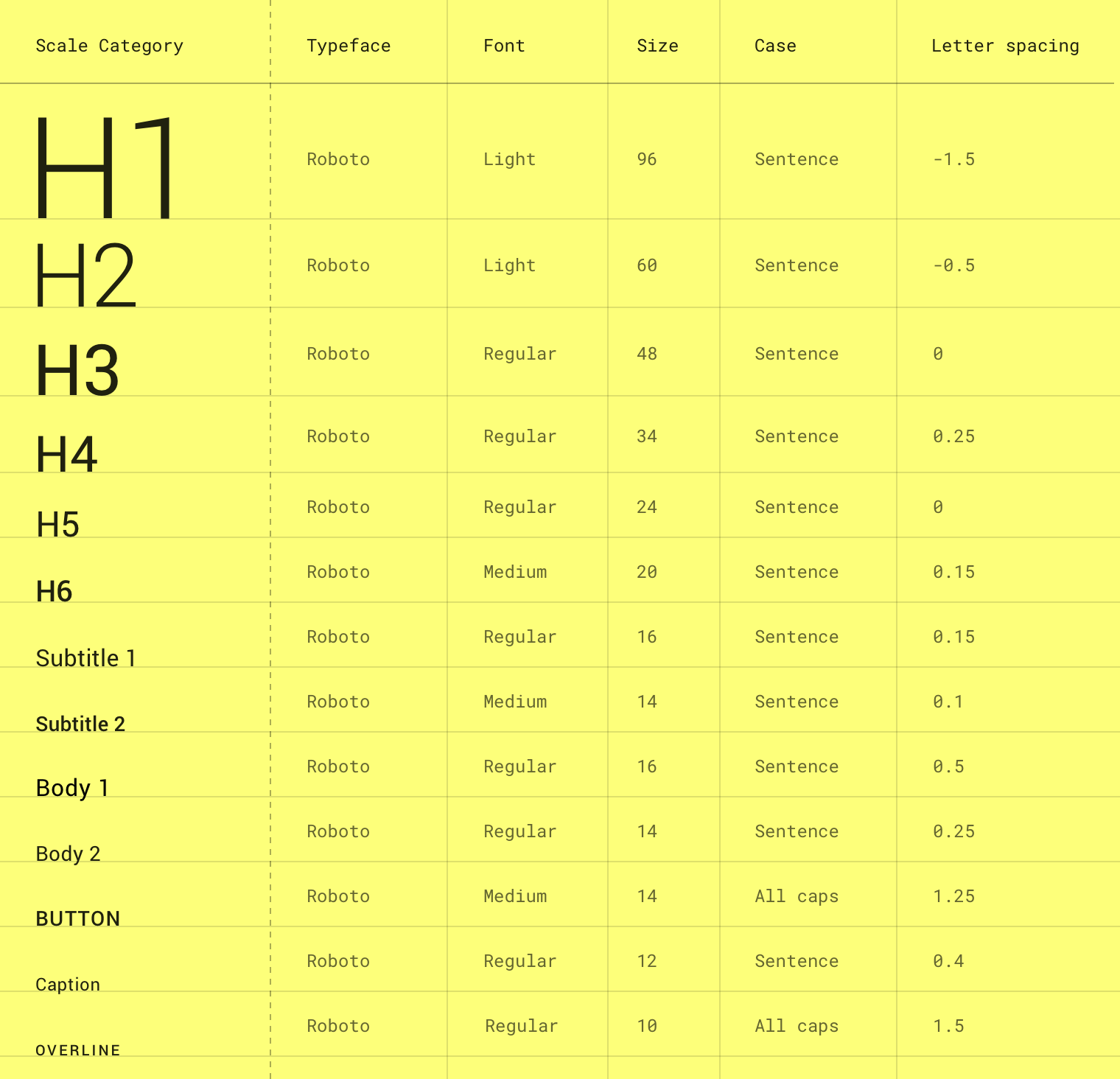

The Material Design type scale. (Letter spacing values are compatible with Sketch.)

Download

Access the type scale using type styles in Sketch.

Font size units

The following units are used to express font size on Android, iOS, and the web. Platform Android iOS Web Font size unit sp pt rem...

Read More

The following units are used to express font size on Android, iOS, and the web.

Platform

Android

iOS

Web

Font size unit

sp

pt

rem

Conversion ratio

1.0

1.0

0.0625

Example conversions

Android

iOS

Web

10sp

10pt

0.625rem

12sp

12pt

0.75rem

24sp

24pt

1.5rem

60sp

60pt

3.75rem

Web browsers calculate the REM (the root em size) based on the root element size. The default for modern web browsers is 16px, so the conversion is SP_SIZE/16 = rem.

Letter spacing units

The following units are for spacing letters in a UI. Platform Android iOS Web Letter spacing unit em pt rem Conversion ratio (Tracking from Sketch...

Read More

The following units are for spacing letters in a UI.

Platform

Android

iOS

Web

Letter spacing unit

em

pt

rem

Conversion ratio

(Tracking from Sketch / font size in sp) = letter spacing

1.0

(Tracking from Sketch / font size in px) = letter spacing

Letter spacing examples

Android

iOS

Web

(.2 tracking / 16sp font size) = 0.0125 em

-0.1 pt

(.2 tracking / 16px font size) = 0.0125 rem


Applying the type scale

The type scale appears as text in components and the overall layout. Type attributes can use custom values for the typeface, font, case, size, and letter spacing.

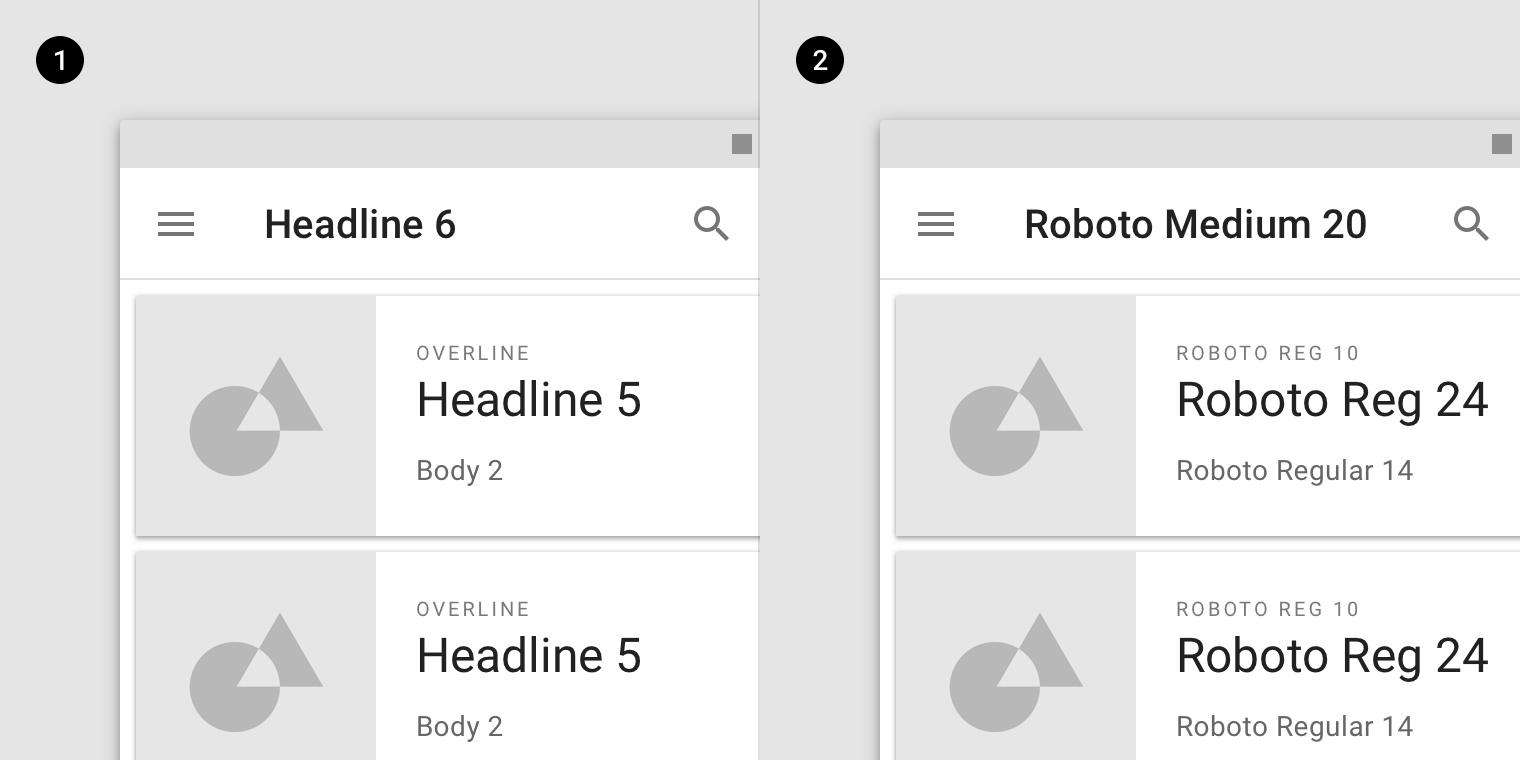

1. Scale categories

2. Actual values

Headlines

In the type scale, headlines span from a range of 1 through 6. Headlines are the largest text on the screen, reserved for short, important...

Read More

In the type scale, headlines span from a range of 1 through 6. Headlines are the largest text on the screen, reserved for short, important text or numerals.

For headlines, you can choose an expressive font, such as a display, handwritten, or script style. These unconventional font designs have details and intricacy that help attract the eye.

A display style is used for Headline 2.

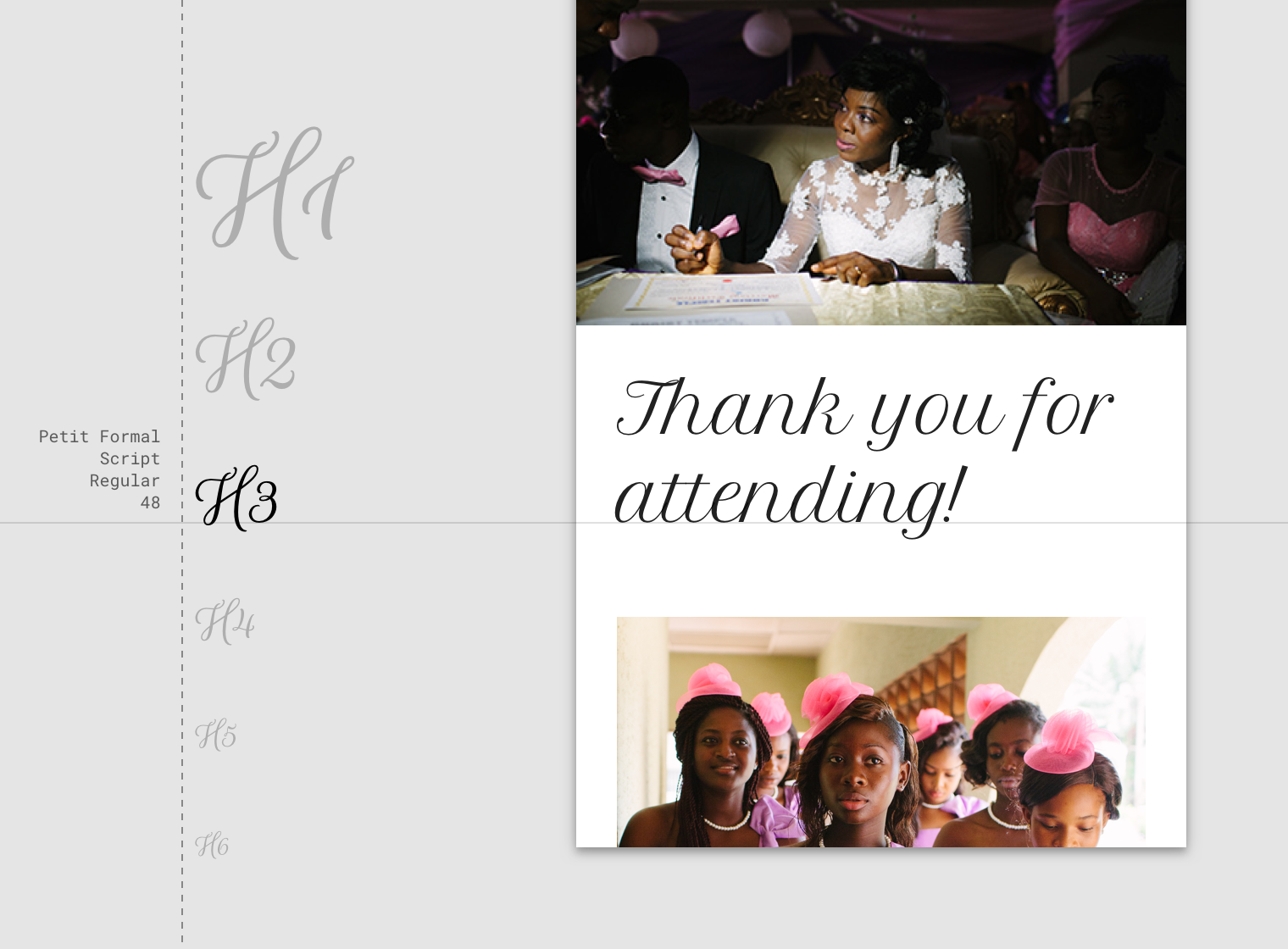

A script style is used for Headline 3.

Serif or sans serif typefaces work well for headlines, especially at smaller sizes.

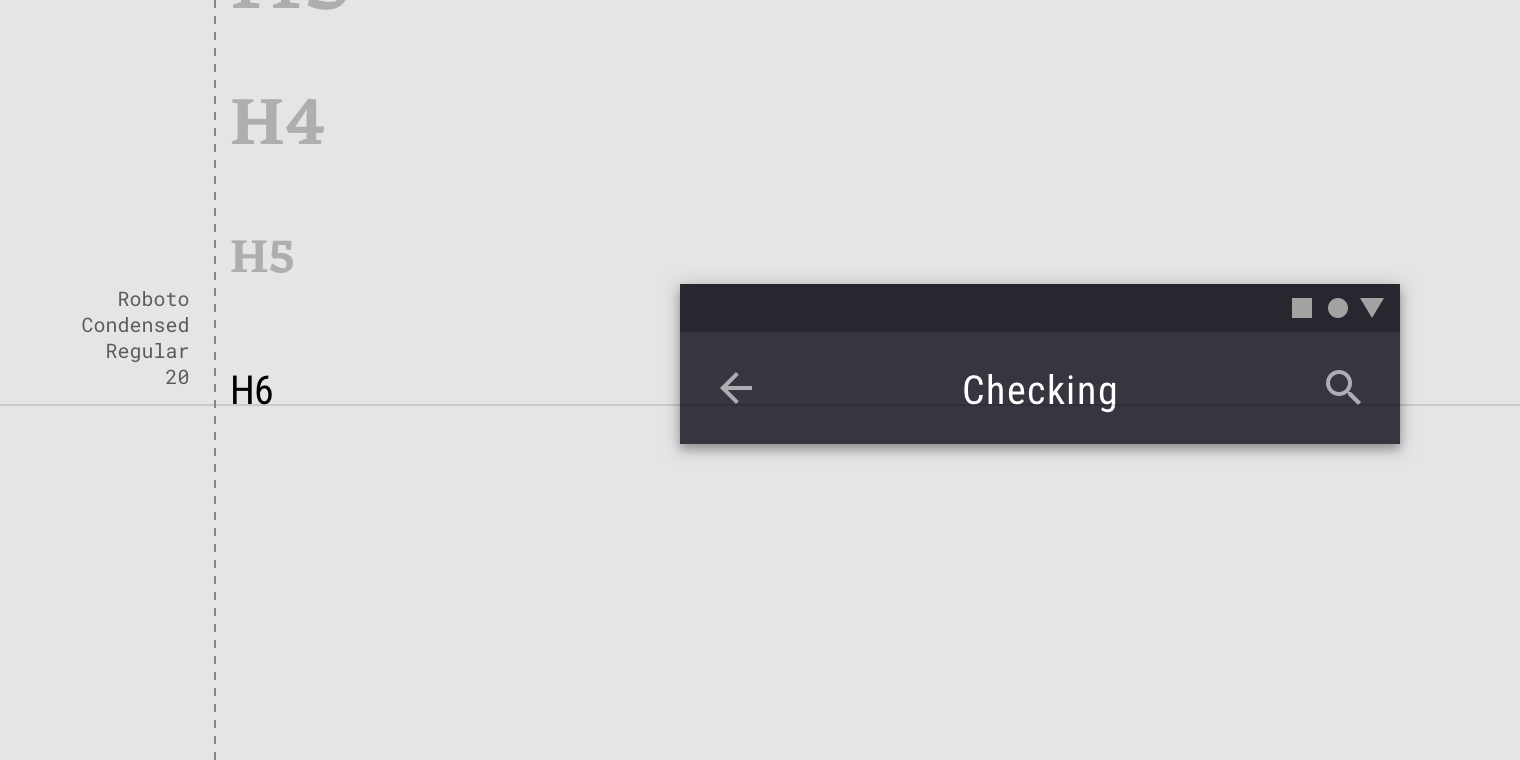

A sans serif is used for Headline 6.

Subtitles

Subtitles are smaller than headlines. They are typically reserved for medium-emphasis text that is shorter in length. Serif or sans serif typefaces work well for...

Read More

Subtitles are smaller than headlines. They are typically reserved for medium-emphasis text that is shorter in length. Serif or sans serif typefaces work well for subtitles.

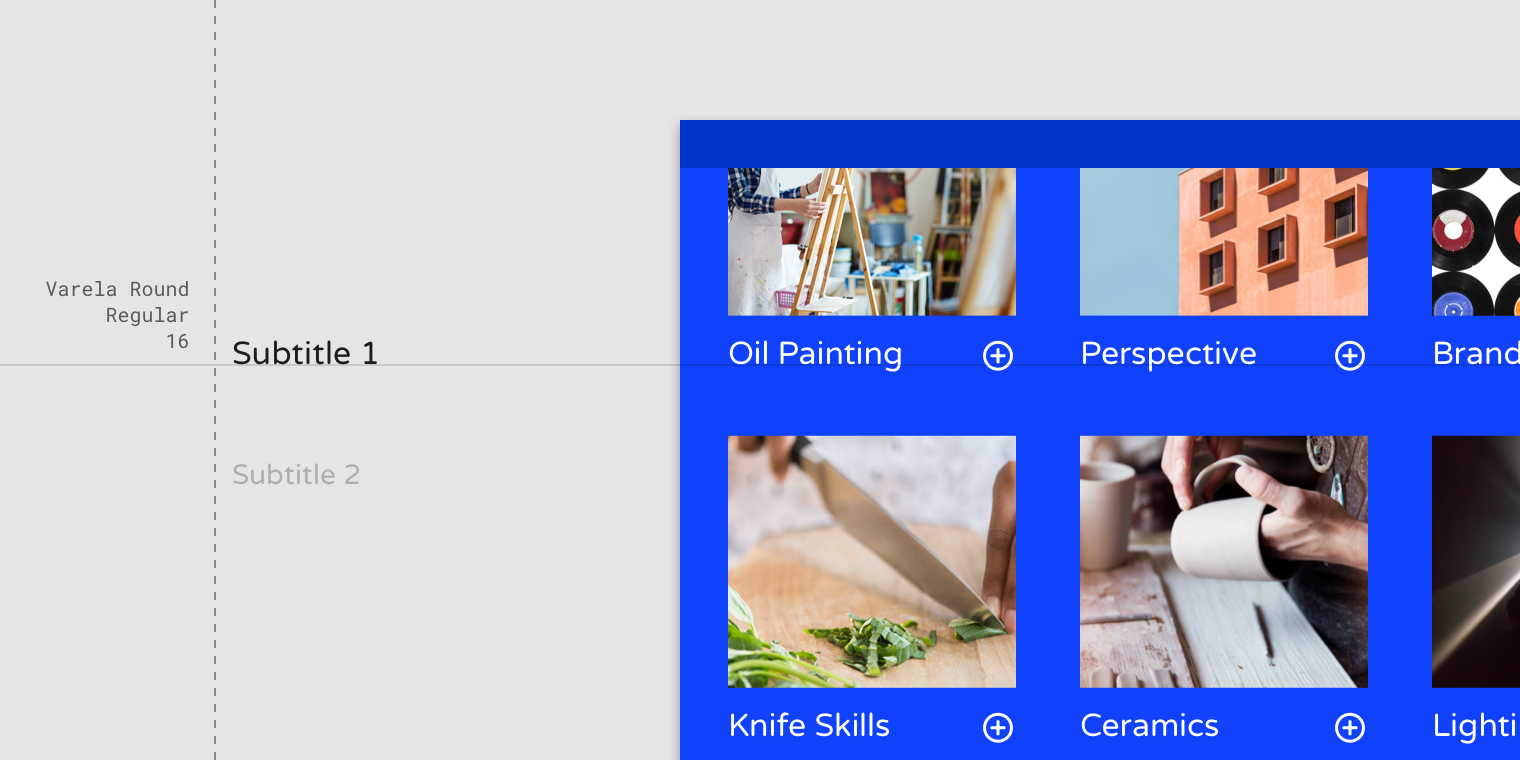

A sans serif typeface is used for Subtitle 1.

For subtitles, use caution when using expressive fonts, including display, handwritten, and script styles.

Caution.

Use caution when using expressive fonts for subtitles.

Body

Body text comes in ranges 1-2, and it’s typically used for long-form writing as it works well for small text sizes. For longer sections of...

Read More

Body text comes in ranges 1-2, and it’s typically used for long-form writing as it works well for small text sizes. For longer sections of text, a serif or sans serif typeface is recommended.

A serif typeface is used for Body 1.

A sans serif typeface is used for Body 2.

Don’t use expressive fonts, including display, handwritten, and script styles for body copy.

Don’t.

Don’t use expressive fonts for body text.

Caption and overline

Caption and overline text (text with a line above it) are the smallest font sizes. They are used sparingly to annotate imagery or to introduce...

Read More

Caption and overline text (text with a line above it) are the smallest font sizes. They are used sparingly to annotate imagery or to introduce a headline.

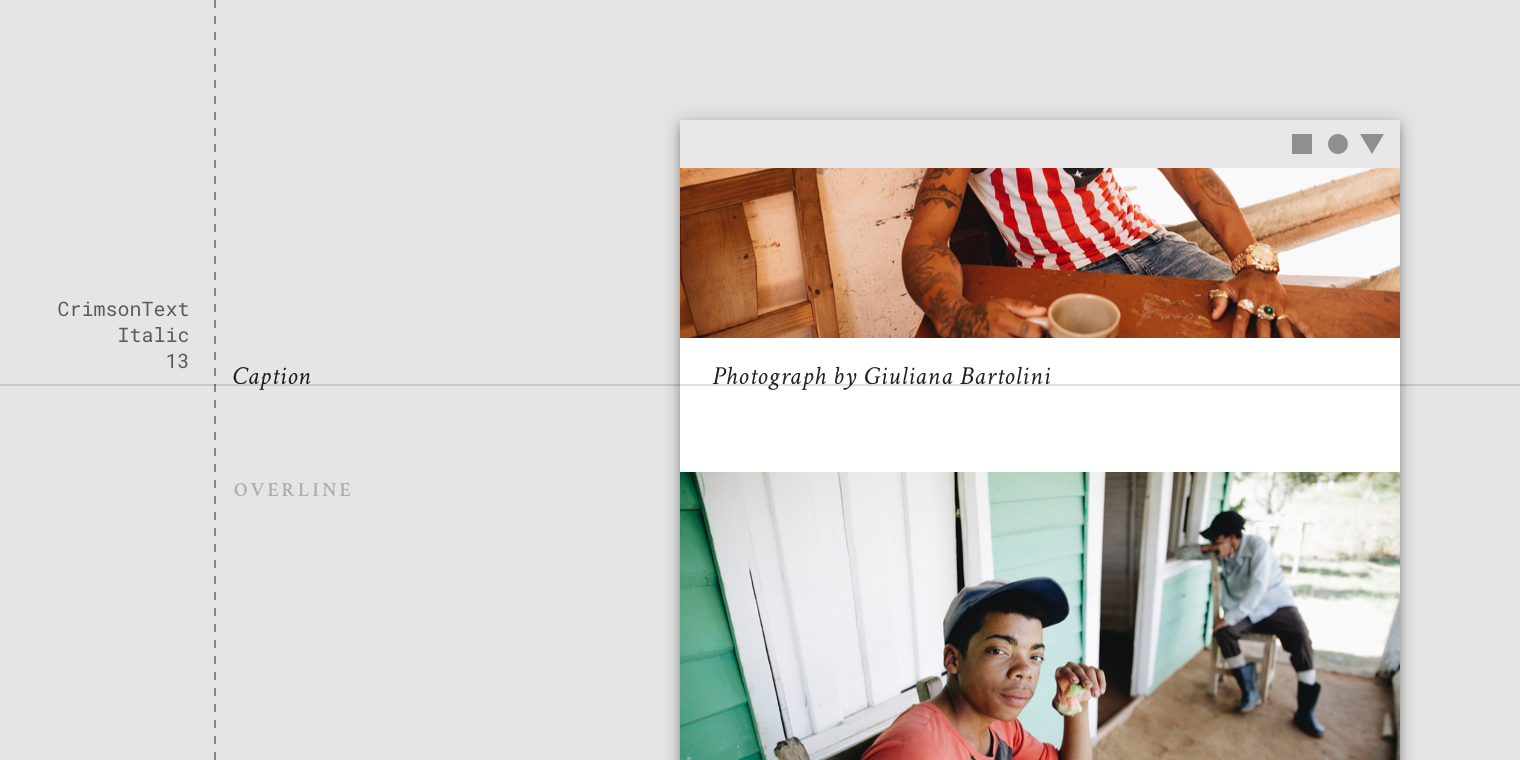

A serif typeface being used for a caption.

A sans serif typeface being used for an overline.

Don’t use expressive fonts, including display, handwritten, and script styles for caption or overline.

Don’t.

Don’t use expressive fonts for an overline.

Button

Button text is a call to action used different types of buttons (such as text, outlined and contained buttons) and in tabs, dialogs, and cards....

Read More

Button text is a call to action used different types of buttons (such as text, outlined and contained buttons) and in tabs, dialogs, and cards.

Button text is typically an all caps sans serif.

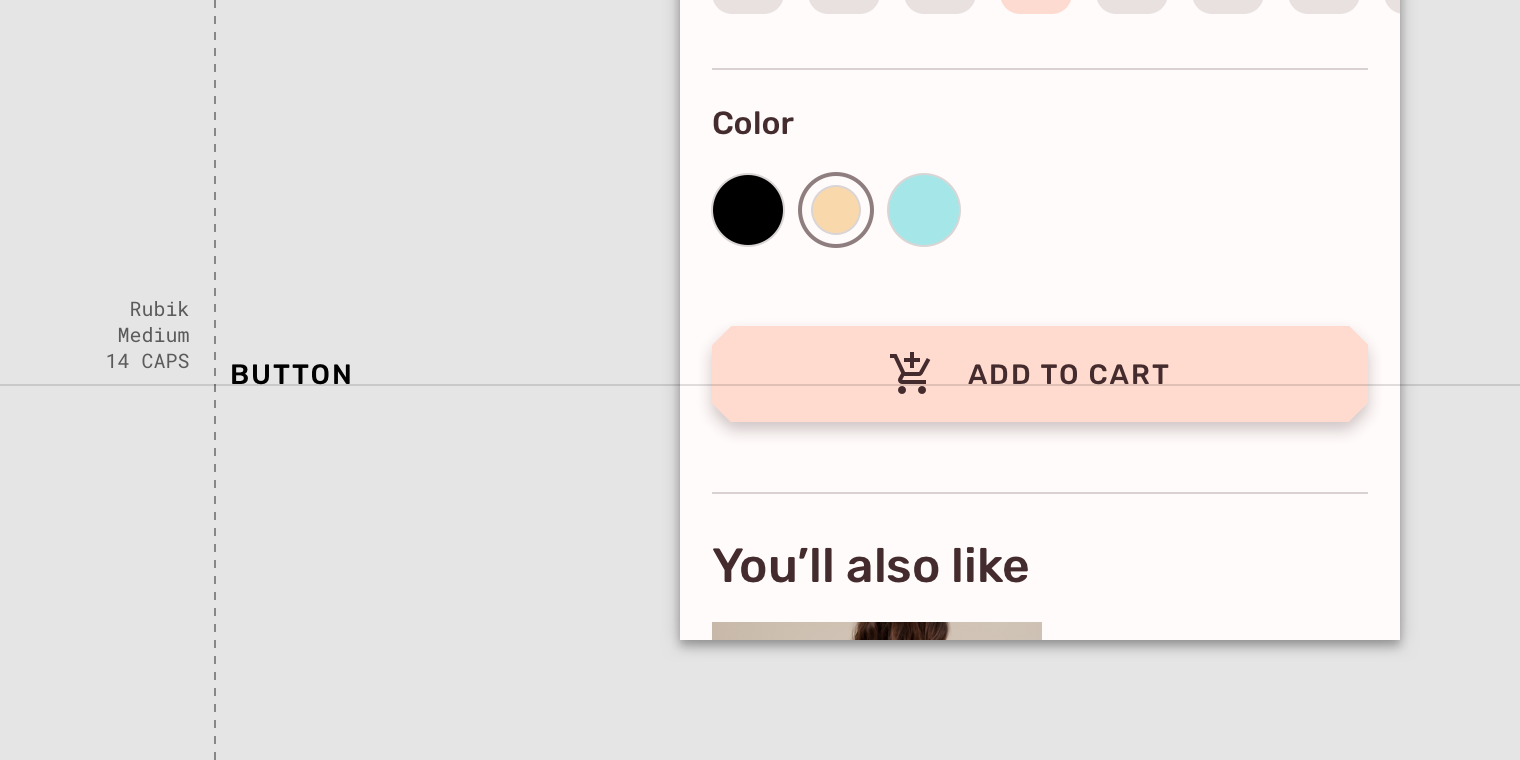

An all caps sans serif typeface being used for a button.

Button text can be sentence case, sans serif, or serif.

Caution.

Use caution when having button text appear distinct from non-interactive text, such as this upper lower, sans serif typeface on a button.

Don’t use expressive fonts as button text, including display, handwritten, and script styles.

Don’t.

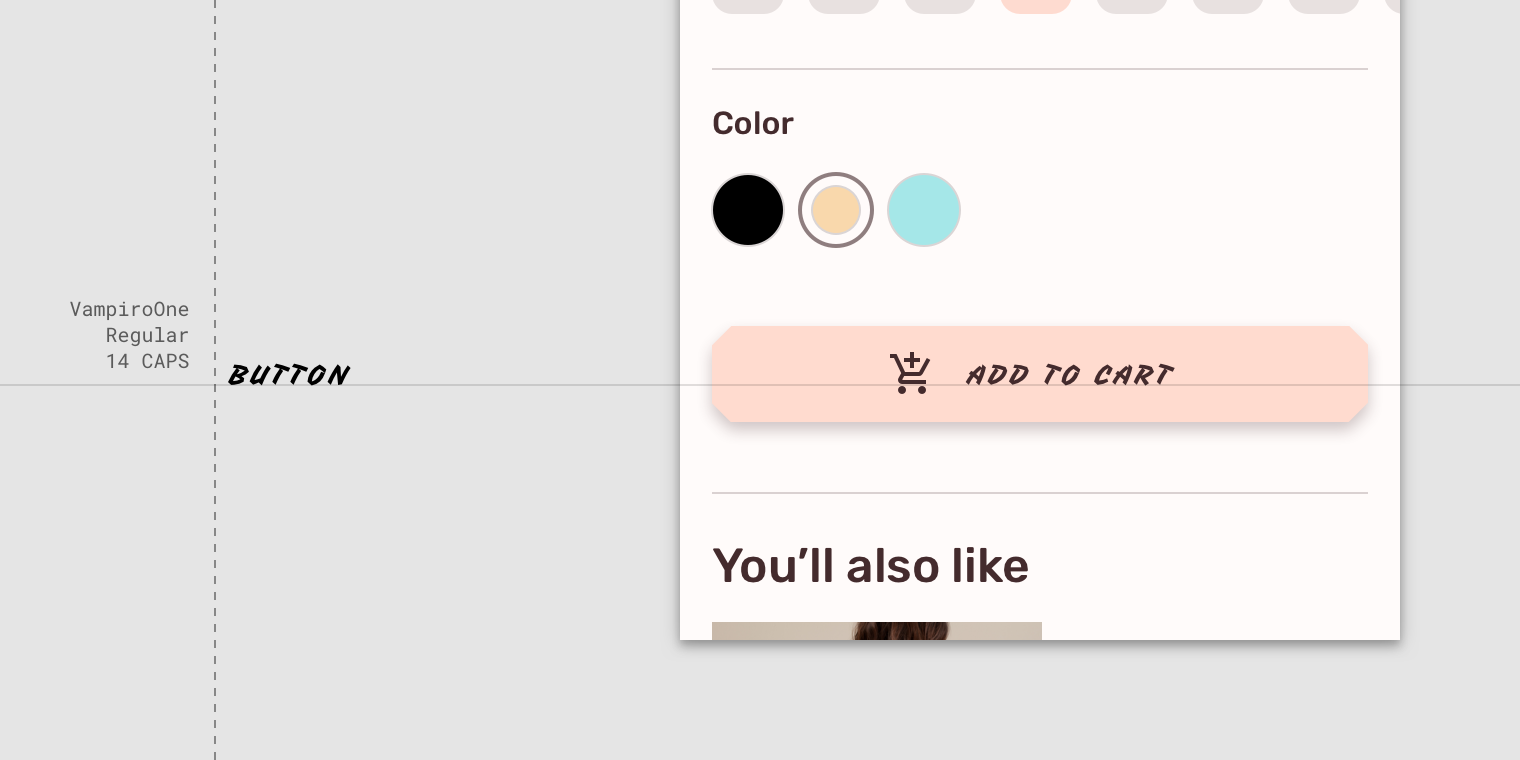

Don’t use a display style for button text.
