Interactive demo
This demo lets you preview the dialog component, its variations, and configuration options. Each tab displays a different type of dialog.
Usage
A dialog is a type of modal window that appears in front of app content to provide critical information or ask for a decision. Dialogs disable all app functionality when they appear, and remain on screen until confirmed, dismissed, or a required action has been taken.
Dialogs are purposefully interruptive, so they should be used sparingly.
Principles
Focused
Dialogs focus user attention to ensure their content is addressed.
Direct
Dialogs should be direct in communicating information and dedicated to completing a task.
Helpful
Dialogs should appear in response to a user task or an action, with relevant or contextual information.
When to use
A banner displays a prominent message and related optional actions. Related Article arrow_downward Snackbars provide brief feedback about an operation through a message at the...
Dialogs should be used for:
- Errors that block an app’s normal operation
- Critical information that requires a specific user task, decision, or acknowledgement

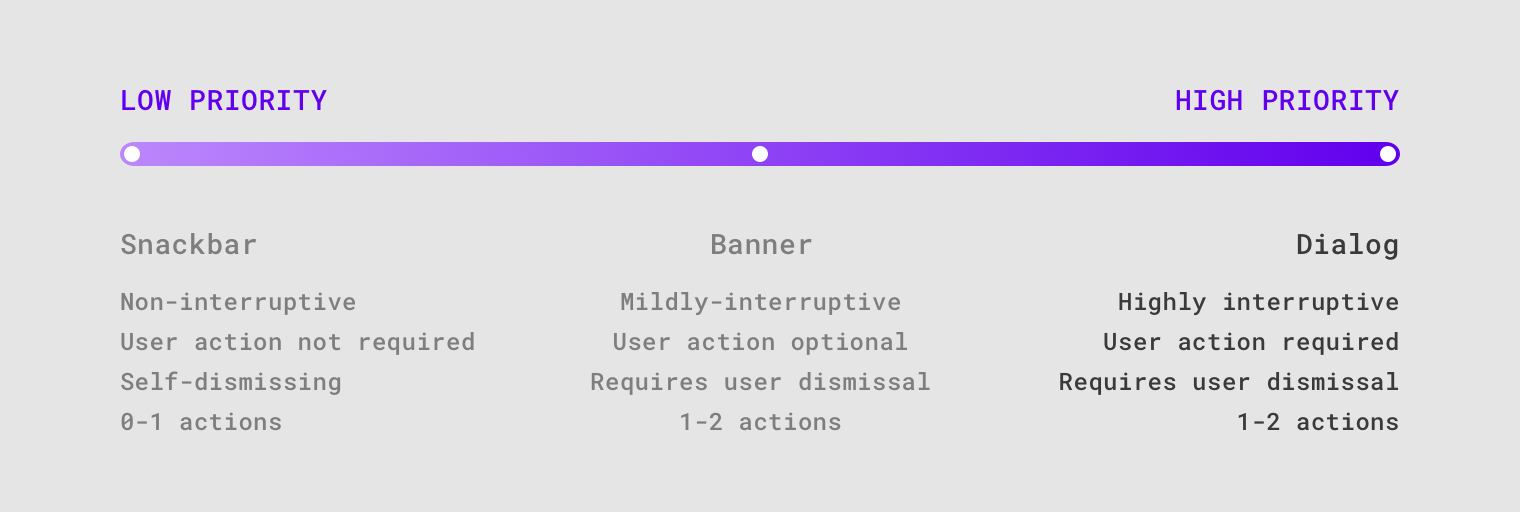

Component | Priority | User action |
---|---|---|
Snackbar | Low priority | Optional: Snackbars disappear automatically |
Banner | Prominent, medium priority | Optional: Banners remain until dismissed by the user, or if the state that caused the banner is resolved |
Dialog | Highest priority | Required: Dialogs block app usage until the user takes a dialog action or exits the dialog (if available) |
Types
Alert dialogs interrupt users with urgent information, details, or actions. Simple dialogs display a list of items that take immediate effect when selected. Confirmation dialogs...
Alert dialog
Alert dialogs interrupt users with urgent information, details, or actions.
Simple dialog
Simple dialogs display a list of items that take immediate effect when selected.
Confirmation dialog
Confirmation dialogs require users to confirm a choice before the dialog is dismissed.
Full-screen dialog
Full-screen dialogs fill the entire screen, containing actions that require a series of tasks to complete.
Cross-platform adaptations
On iOS there are components that perform similar functions to dialogs on Android, such as alerts and action sheets. Look at the number of actions and their text length to decide which component (Alert or Action Sheet) to use when adapting a dialog component to iOS.
Use Alerts when there are two actions with short text labels that fit horizontally.
When there are three or more actions with long text labels in a Material dialog, products may use iOS action sheets or bottom sheets.
Anatomy
- Container
- Title (optional)
- Supporting text
- Buttons
- Scrim
Dialog box and scrim
A dialog is a type of modal window. Access to the rest of the UI is disabled until the modal is addressed. All modal surfaces...
A dialog is a type of modal window. Access to the rest of the UI is disabled until the modal is addressed. All modal surfaces are interruptive by design – their purpose is to have the user focus on content on a surface that appears in front of all other surfaces.
To express that the rest of the app is inaccessible, and to focus attention on the dialog, surfaces behind the dialog are scrimmed. A scrim is a temporary treatment that can be applied to Material surfaces for the purpose of making content on the surface less prominent.
Title
Dialog title and button text should communicate the purpose of any dialog.
A dialog’s purpose should be communicated by its title and button text.
Titles should:
- Contain a brief, clear statement or question
- Avoid apologies (“Sorry for the interruption”), alarm (“Warning!”), or ambiguity (“Are you sure?”)
Buttons
Dialogs can have buttons side-by-side, and stacked in full width.
Side-by-side buttons (Recommended)
Side-by-side buttons display two text buttons next to one another.

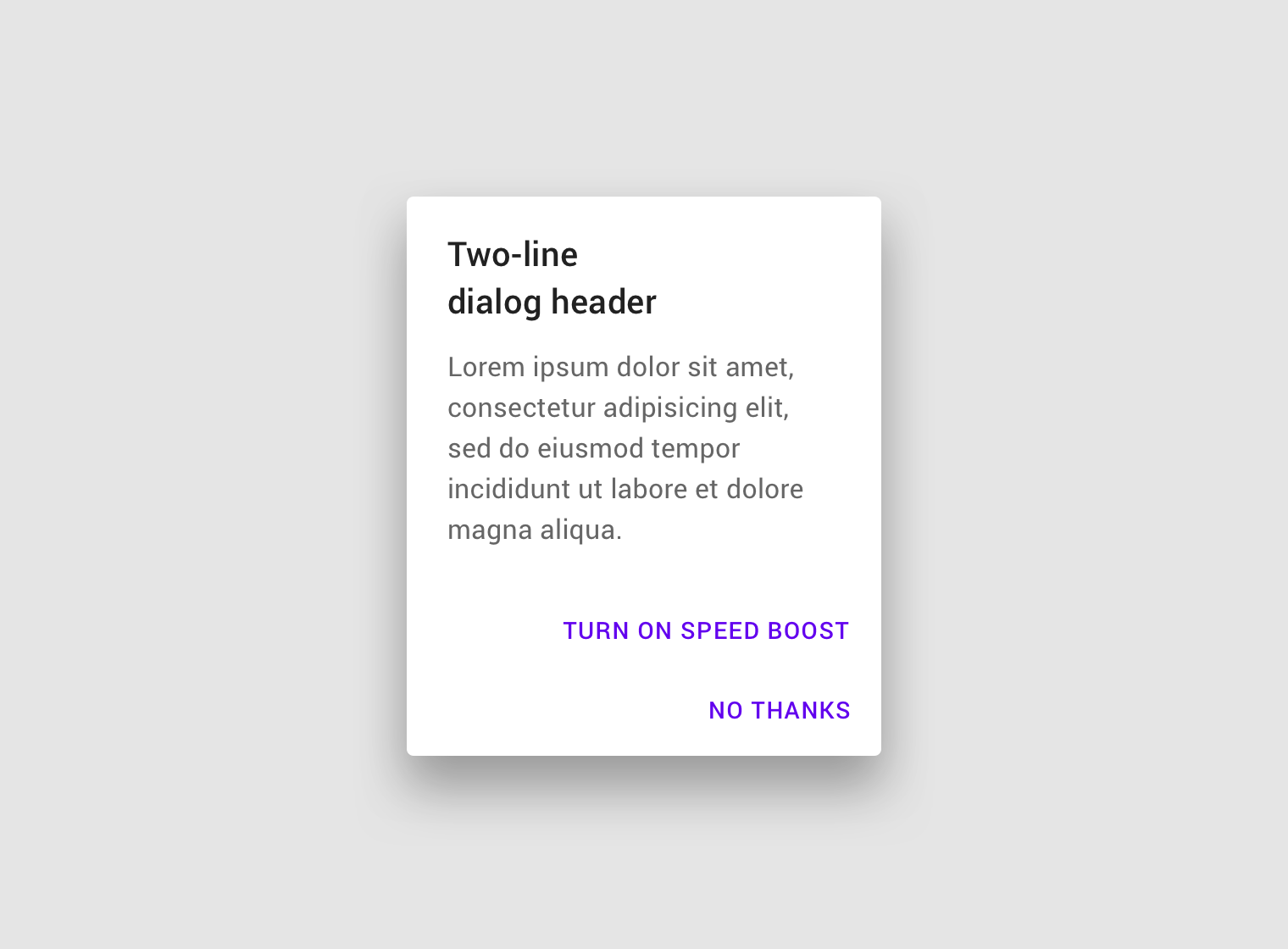

Stacked full-width buttons
Stacked buttons accommodate longer button text. Confirming actions appear above dismissive actions.
Elevation
Dialogs are at 24dp elevation, above other content.
Dialogs are displayed at 24dp elevation and can display a shadow. They appear above other content and typically have a scrim below them that covers all app content.
Behavior
Interaction
Dialogs appear without warning, requiring users to stop their current task. They should be used sparingly, as not every choice or setting warrants interruption.
Dialogs appear without warning, requiring users to stop their current task. They should be used sparingly, as not every choice or setting warrants interruption.
Position
Dialogs retain focus until dismissed or an action has been taken, such as choosing a setting. They shouldn’t be obscured by other elements or appear...
Dialogs retain focus until dismissed or an action has been taken, such as choosing a setting. They shouldn’t be obscured by other elements or appear partially on screen, with the exception of full-screen dialogs.
Scrolling
Most dialog content should avoid scrolling. When scrolling is required, the dialog title is pinned at the top, with buttons pinned at the bottom. This...
Most dialog content should avoid scrolling. When scrolling is required, the dialog title is pinned at the top, with buttons pinned at the bottom. This ensures selected content remains visible alongside the title and buttons, even upon scroll.
Dialogs don’t scroll with elements outside of the dialog, such as the background.
Dismissing dialogs
Dialogs may be dismissed by:
- Tapping a "cancel" button, if one is shown
- Pressing the keyboard Escape key
- Tapping the scrim (Android, iOS)
- Tapping the Android system "back" button
- Using another standard "cancel" or "escape" action, such as iOS' VoiceOver escape gesture
If the user’s ability to dismiss a dialog is disabled, the user must choose a dialog action to proceed.
Transitions
Dialogs enter and exit the screen using a fade transition pattern.
Scaling and adaptation
When scaling layouts for larger screens, adjust a dialog’s visual presentation by setting minimum and maximum values for margins, padding, and container dimensions.
When scaling layouts for larger screens, adjust a dialog’s visual presentation by setting minimum and maximum values for margins, padding, and container dimensions.
Dialogs should maintain a minimum 48dp distance from the leading and trailing edges of a screen. On small screens, dialogs scale vertically until reaching 48dp from the screen’s top and bottom edge. On larger displays, dialogs can increase in size to a maximum width of 560dp. When a dialog reaches the maximum width, it expands or contracts vertically to support content, up to a maximum height of 560dp.
Dialogs can also swap types as a screen size changes. For example, a full-screen dialog can change into a simple dialog at larger breakpoints.

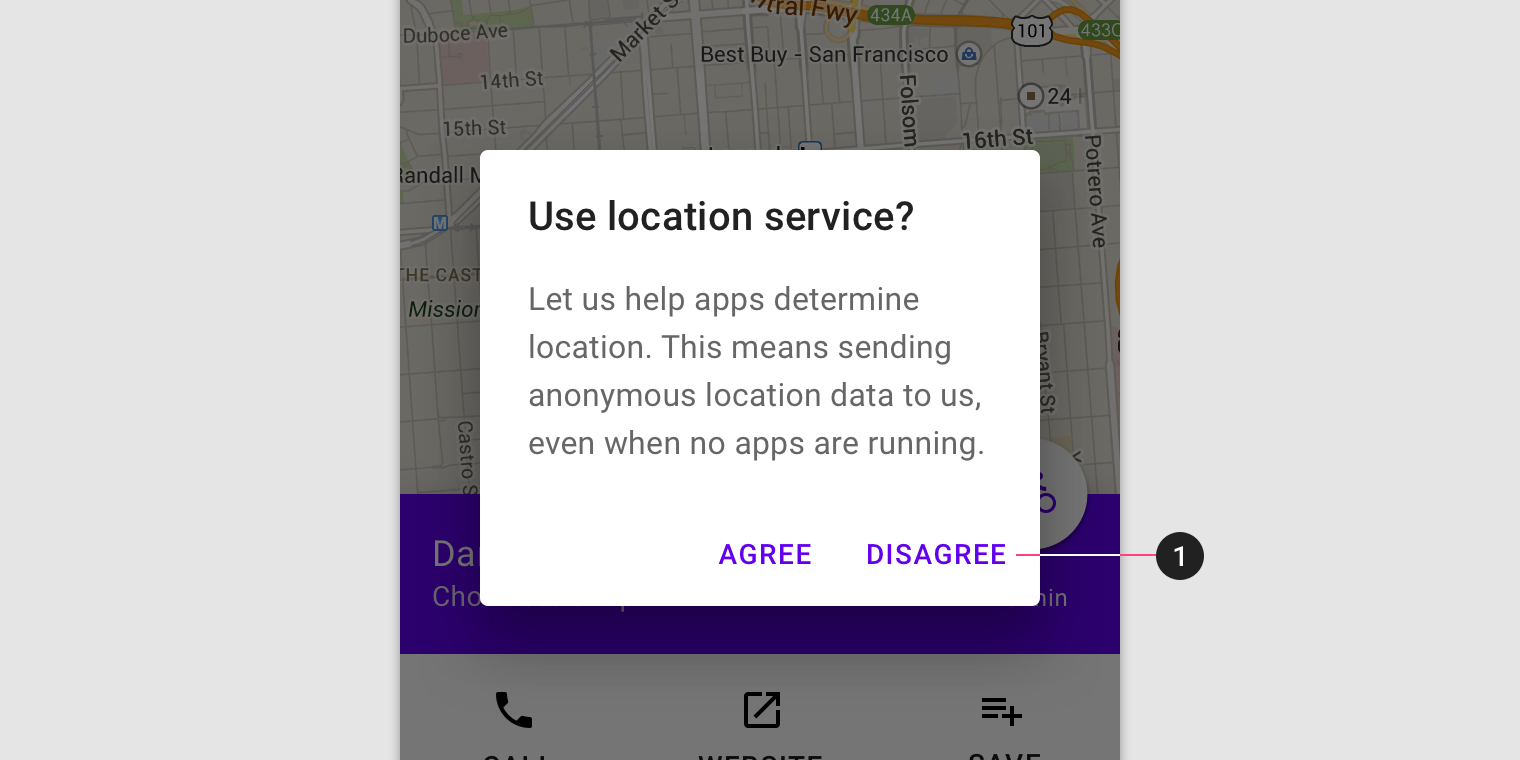

Actions
Types of actions
Dialogs present a distinct choice to users through their title, content, and actions. Dialog actions are represented as buttons and allow users confirm or dismiss...
Dialogs present a distinct choice to users through their title, content, and actions. Dialog actions are represented as buttons and allow users confirm or dismiss something.
There are three types of dialog actions:
Confirming actions
To resolve what triggered the dialog, confirming actions confirm a proposed action. These actions can involve removing something, such as “Delete” or “Remove,” if it suits the context. They are placed on the right side of the screen.
Dismissive actions
Dismissive actions dismiss a proposed action, and return the user to the originating screen or step. They are placed directly to the left of a confirming action.
Acknowledgement actions

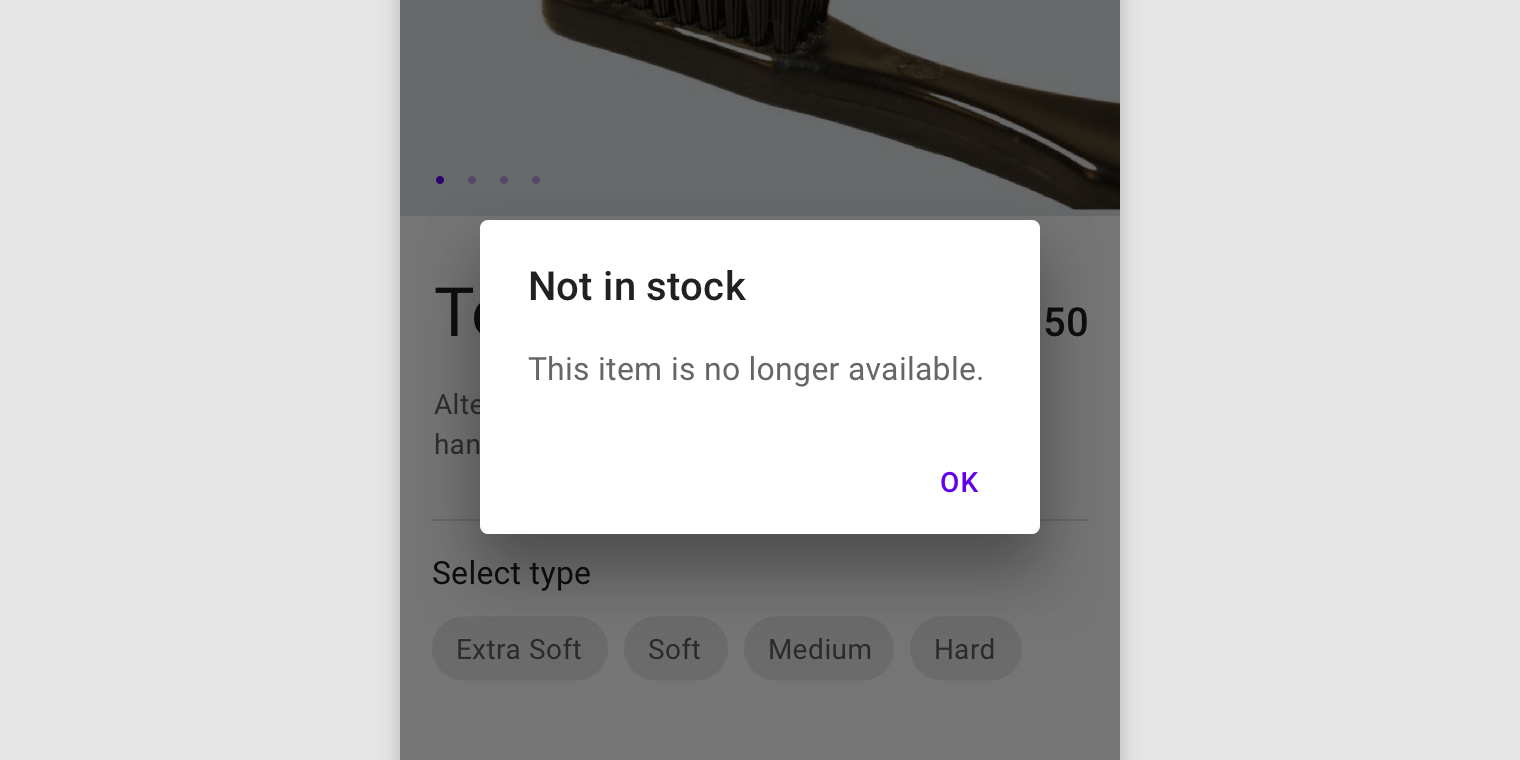

When user acknowledgement is required to proceed, a single action may be presented. Alternatively, use a snackbar to communicate this type of information.
Number of actions
Dialogs should contain a maximum of two actions. Rather than adding a third action, an inline expansion can display more information. If more extensive information...
Dialogs should contain a maximum of two actions.
- If a single action is provided, it must be an acknowledgement action.
- If two actions are provided, one must be a confirming action, and the other a dismissing action.
- Providing a third action such as “Learn more” is not recommended as it navigates the user away from the dialog, leaving the dialog task unfinished.
Rather than adding a third action, an inline expansion can display more information. If more extensive information is needed, provide it prior to entering the dialog.

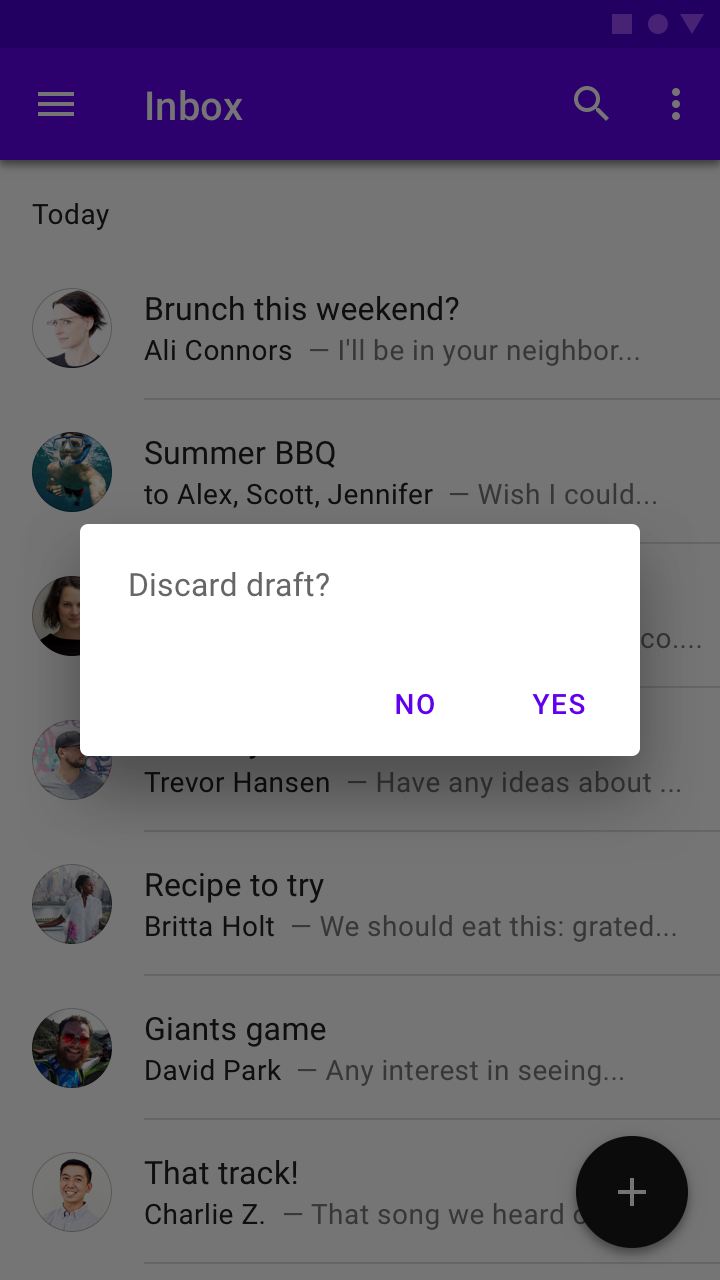

Alert dialog
Usage
Alert dialogs interrupt users with urgent information, details, or actions.
Alert dialogs interrupt users with urgent information, details, or actions.
Behavior
To close an alert dialog, one of its actions must be selected.
To close an alert dialog, one of its actions must be selected.
Simple dialog
Usage
Simple dialogs can display items that are immediately actionable when selected. They don’t have text buttons. As simple dialogs are interruptive, they should be used...
Simple dialogs can display items that are immediately actionable when selected. They don’t have text buttons.

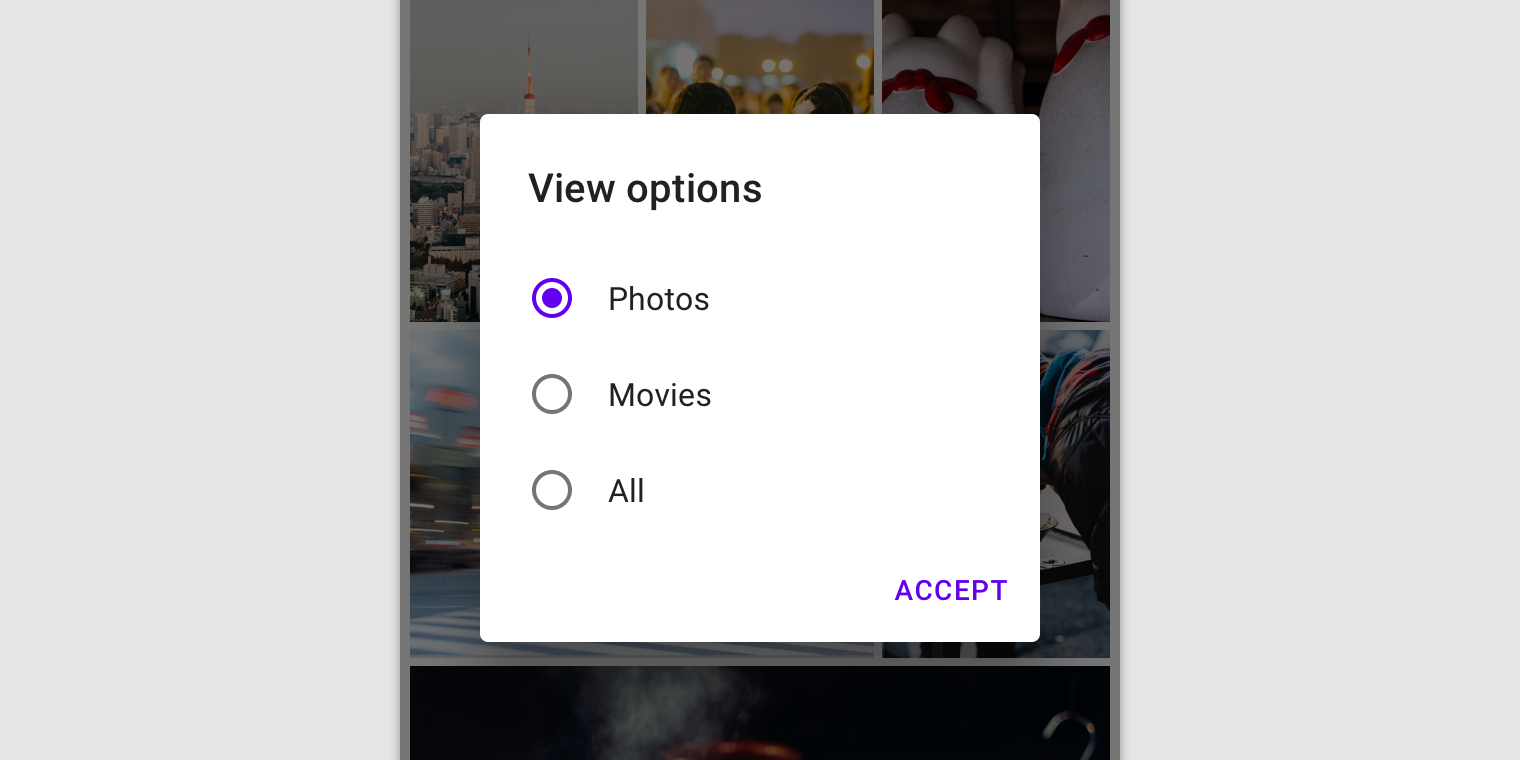

As simple dialogs are interruptive, they should be used sparingly. Alternatively, dropdown menus provide options in a non-modal, less disruptive way.
Behavior
A simple dialog allows the following interactions: Simple dialogs allow users to act on selected elements, without action text. For example, users can simply select...
A simple dialog allows the following interactions:
- Tap an action to choose it and close the dialog
- Tap outside the dialog to close the dialog without taking an action
Simple dialogs without actions
Simple dialogs allow users to act on selected elements, without action text. For example, users can simply select a list item to take action on it.
Confirmation dialog
Usage
Confirmation dialogs give users the ability to provide final confirmation of a choice before committing to it, so they have a chance to change their...
Confirmation dialogs give users the ability to provide final confirmation of a choice before committing to it, so they have a chance to change their minds if necessary.
If the user confirms a choice, it’s carried out. Otherwise, the user can dismiss the dialog. For example, users can listen to multiple ringtones but only make a final selection upon tapping “OK.”
Behavior
To confirm a choice, the user taps a confirmation action. To cancel, the user taps a dismissive action.
To confirm a choice, the user taps a confirmation action. To cancel, the user taps a dismissive action.
Placement

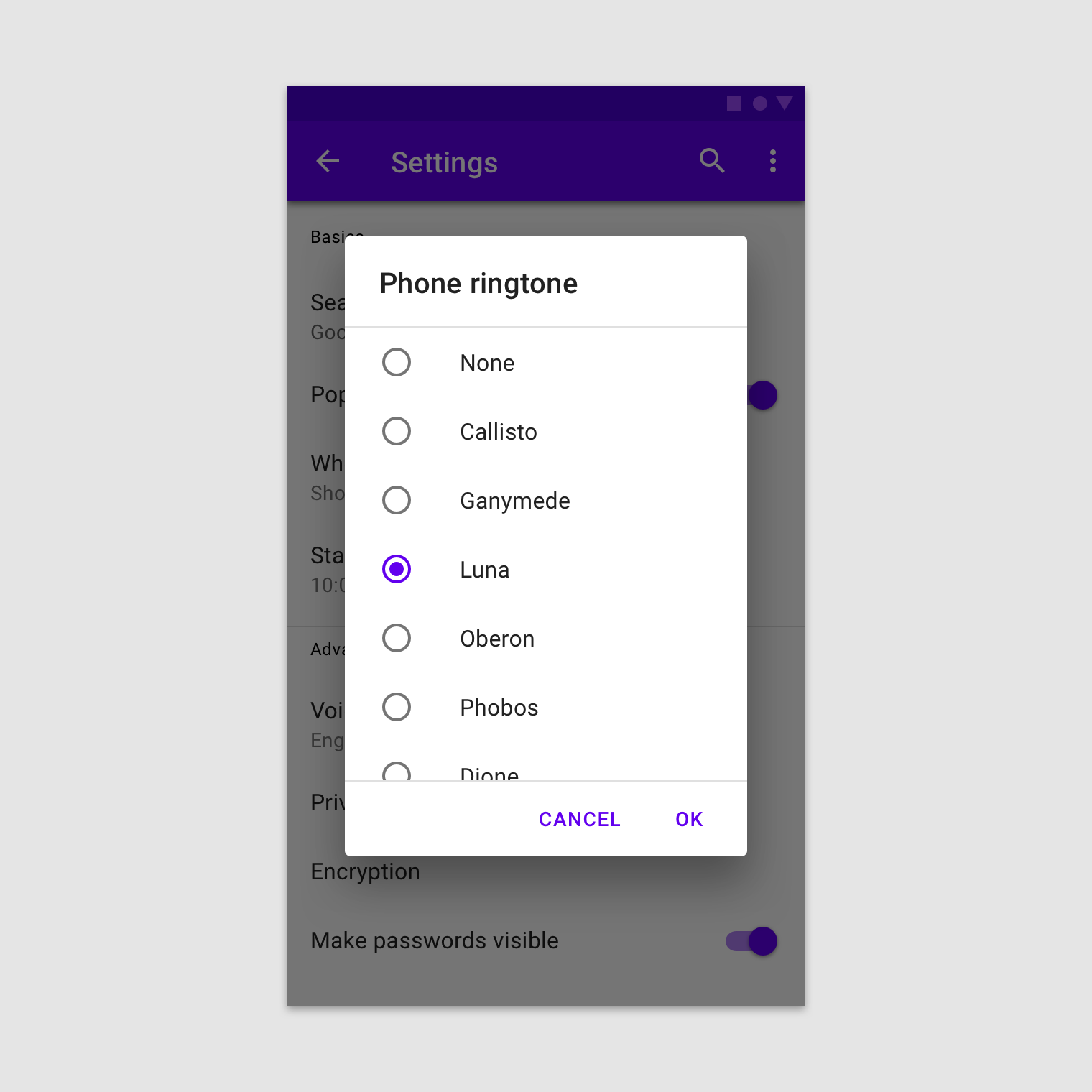

Confirmation dialogs typically appear as lists, but can appear in a variety of layouts and components, including lists, date pickers, and time pickers.
Confirmation dialogs typically appear as lists, but can appear in a variety of layouts and components, including lists, date pickers, and time pickers.
Confirmation dialog in a list
The user taps a selection and confirms by tapping “OK.”
Confirmation dialog in a date picker
The user selects by tapping a date, then confirms by tapping “OK.”
Confirmation dialog in a time picker
The user selects by moving the clock hand and then confirms by tapping “OK.”
Buttons
Confirmation dialogs provide both confirmation and cancel buttons. After a confirmation button is tapped, a selection is confirmed. If the cancel button is tapped, or...
Confirmation dialogs provide both confirmation and cancel buttons. After a confirmation button is tapped, a selection is confirmed. If the cancel button is tapped, or the area outside the dialog, the action is cancelled.
Full-screen dialog
Usage
Full-screen dialogs group a series of tasks, such as creating a calendar entry with the event title, date, location, and time. Because they take up...
Full-screen dialogs group a series of tasks, such as creating a calendar entry with the event title, date, location, and time. Because they take up the entire screen, full-screen dialogs are the only dialogs over which other dialogs can appear.
Full-screen dialogs may be used for content or tasks that meet any of these criteria:
- Dialogs that include components which require keyboard input, such as form fields
- When changes aren’t saved instantly
- When components within the dialog open additional dialogs
Full-screen dialogs are for mobile devices only. For tablet or desktop, use a modal dialog.
Behavior

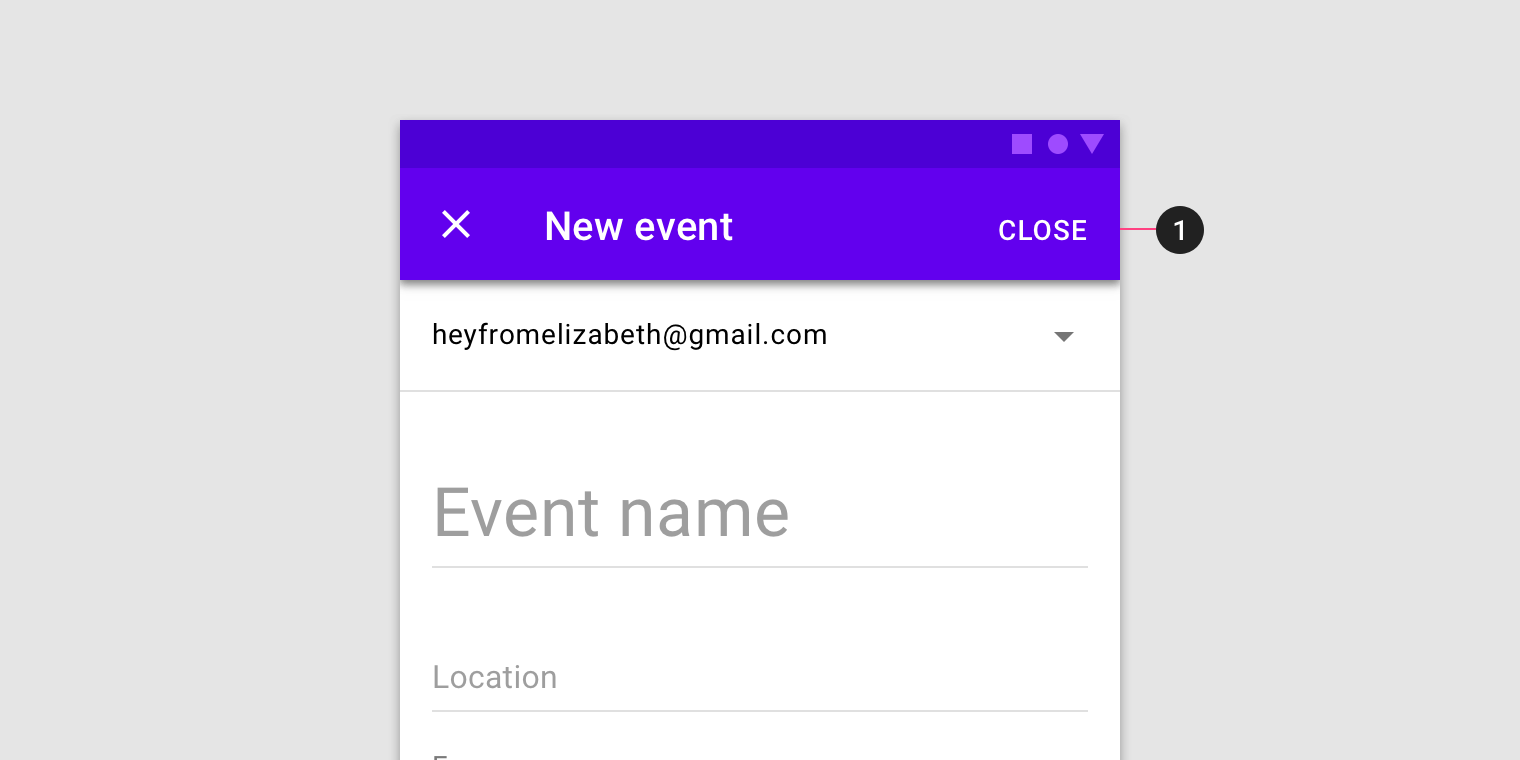

To save a selection in a full-screen dialog, the user taps “Save.” To discard all changes and exit, the user taps the “X” icon or...
Saving selections
To save a selection in a full-screen dialog, the user taps “Save.” To discard all changes and exit, the user taps the “X” icon or “Back” button.
Confirmation

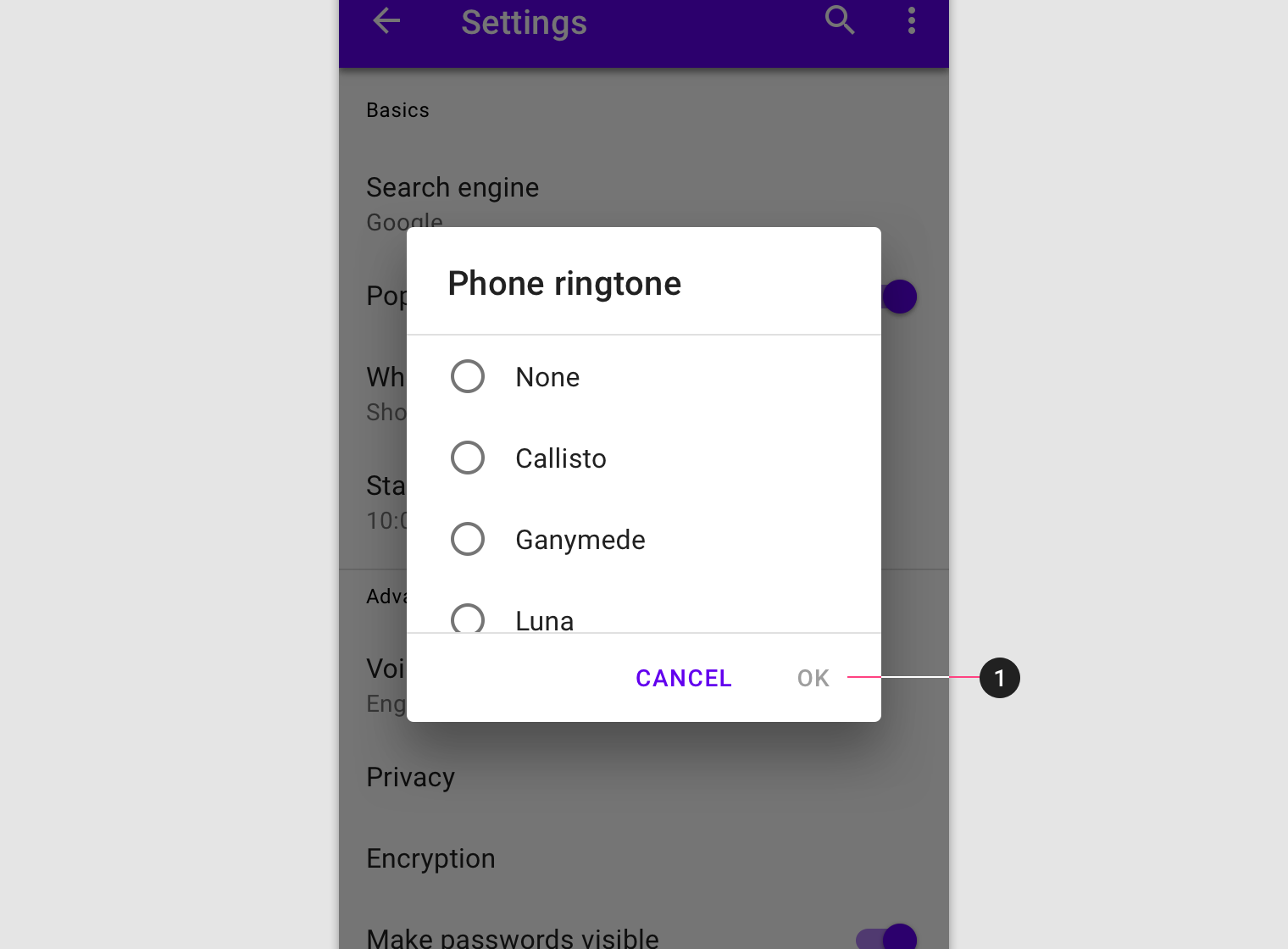

The confirmation action is disabled until all mandatory fields are filled. Use descriptive verbs such as “Save,” “Send,” “Share,” “Update,” or “Create.” Don’t use vague terms such as “Done,” “OK” or “Close.”
- If no changes have been made, the dialog closes and no discard confirmation is required
- If the user has made changes, the user is prompted to confirm the discard action
Dialog windows
Launching a full-screen dialog temporarily resets the app’s perceived elevation, allowing simple menus or dialogs to appear above the full-screen dialog.

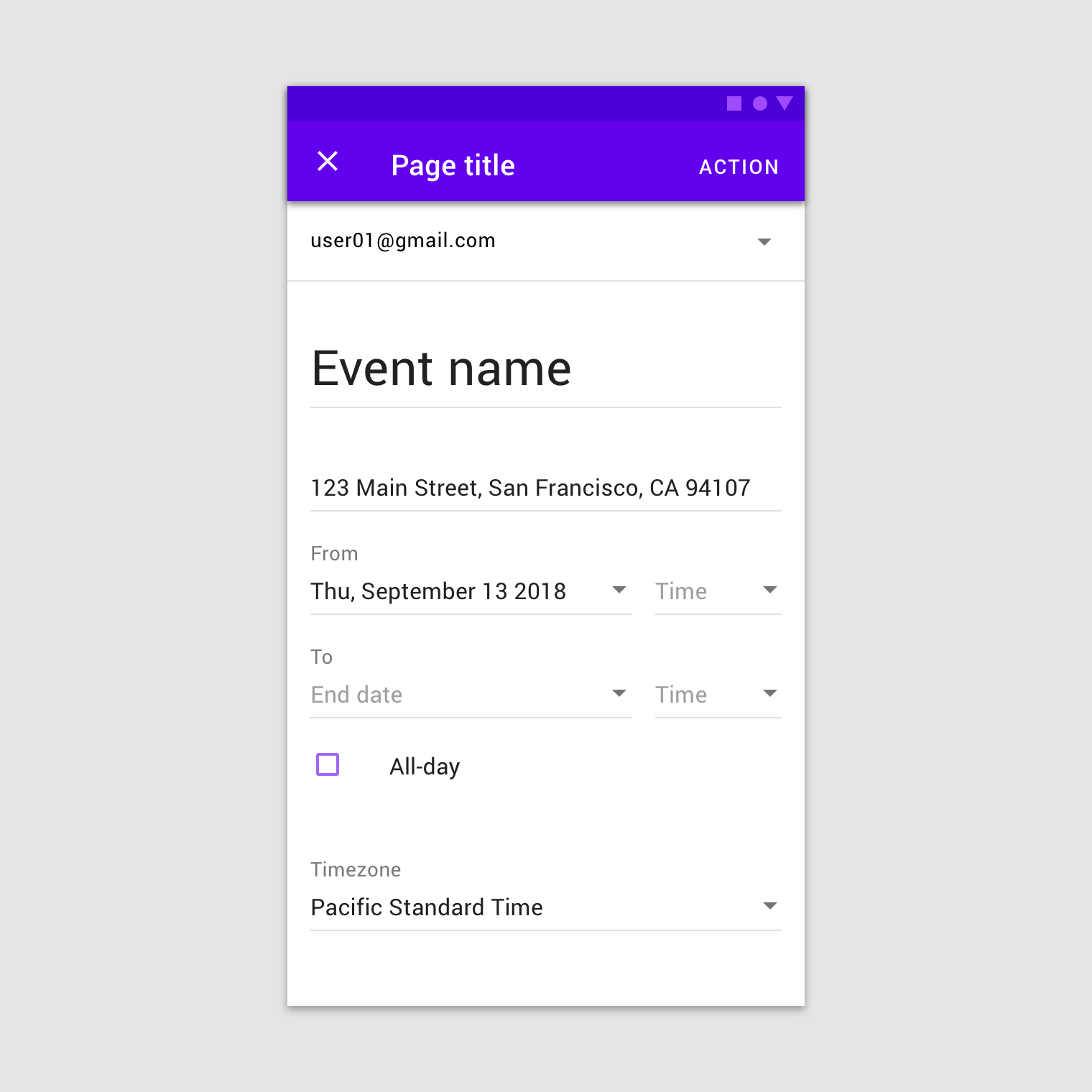

Layout
Full-screen dialogs cover the screen and don’t appear as a floating modal window. Place confirmation and dismissive actions in the top app bar. Because full-screen...
Full-screen dialogs cover the screen and don’t appear as a floating modal window.
Actions
Place confirmation and dismissive actions in the top app bar.
Navigation
Because full-screen dialogs can only be completed, dismissed, or closed, only use the close “X” navigation button.
Titles
Titles should be succinct. They can wrap to a second line if necessary, and be truncated. If there are long titles, or titles of variable lengths (such as translations), place them in the content area instead of the app bar.
Theming
Crane Material theme
This travel app’s dialogs have been customized using Material Theming. Areas of customization include color, typography, and shape. Crane is a travel app that uses...
This travel app’s dialogs have been customized using Material Theming. Areas of customization include color, typography, and shape.
Color

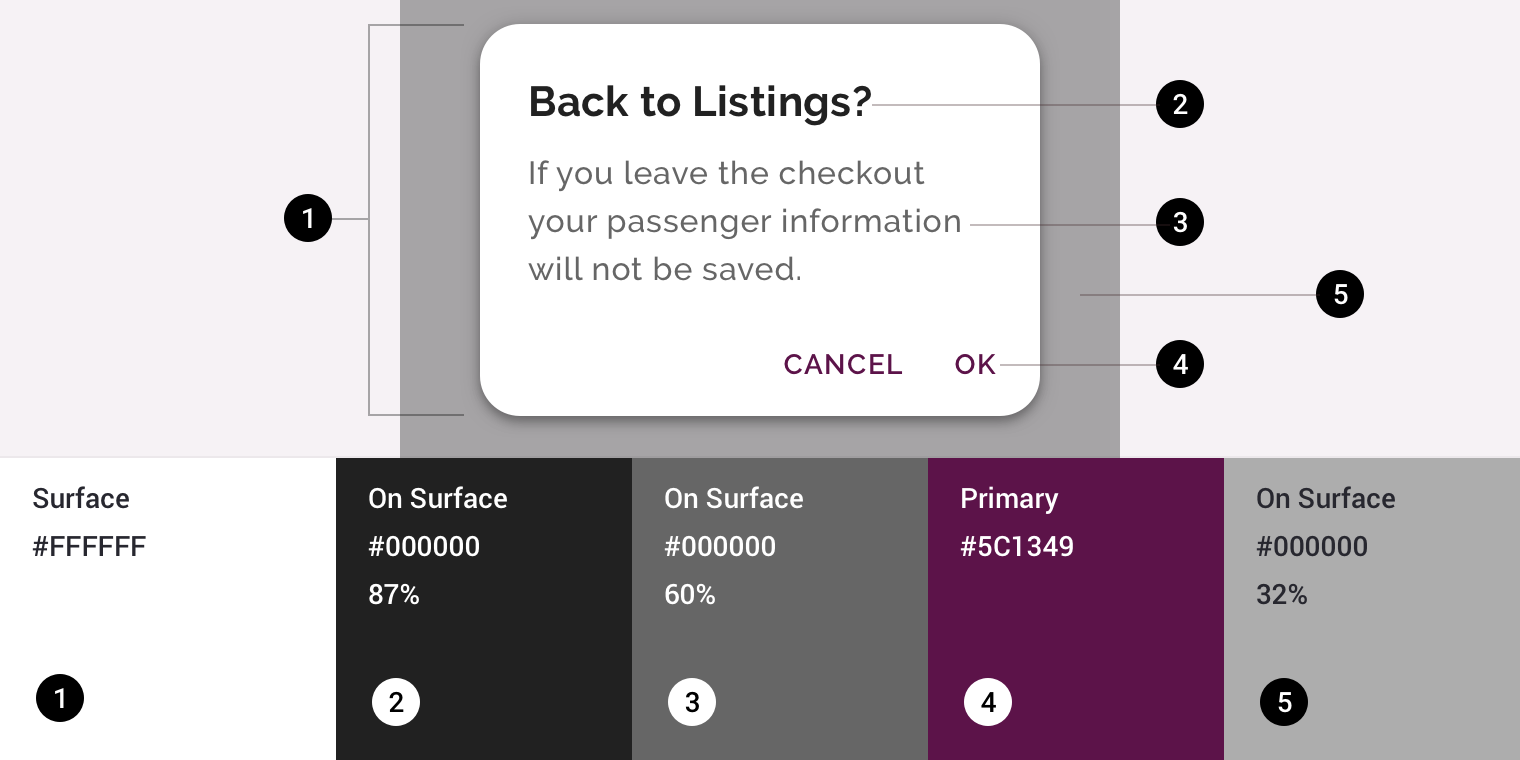

Crane’s dialogs use custom color on five elements: the container, title text, supporting text, button text, and scrim.
Element | Category | Attribute | Value |
---|---|---|---|
Container | Surface | Color Opacity |
#FFFFFF 100% |
Title text | On Surface | Color Opacity |
#000000 87% |
Supporting text | On Surface | Color Opacity |
#000000 60% |
Button text | Primary | Color Opacity |
#5C1349 100% |
Scrim | On Surface | Color Opacity |
#000000 32% |

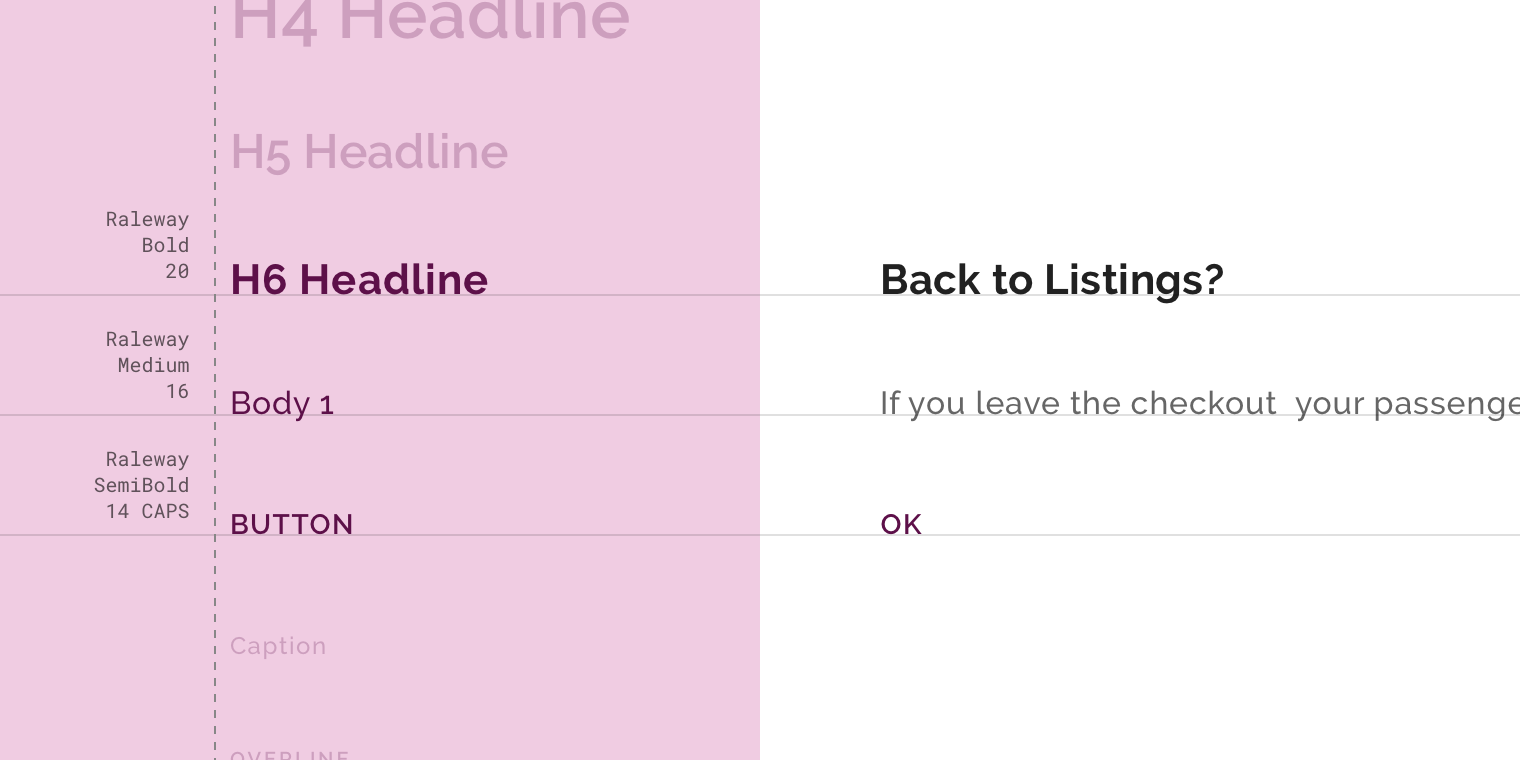

Typography
Crane’s dialogs use custom typography for title text, supporting text, and button text.
Element | Category | Attribute | Value |
---|---|---|---|
Title text | H6 | Typeface Font Size Case |
Raleway Bold 20 Title case |
Supporting text | Body 1 | Typeface Font Size Case |
Raleway Medium 16 Sentence case |
Button text | Button | Typeface Font Size Case |
Raleway SemiBold 14 All caps |

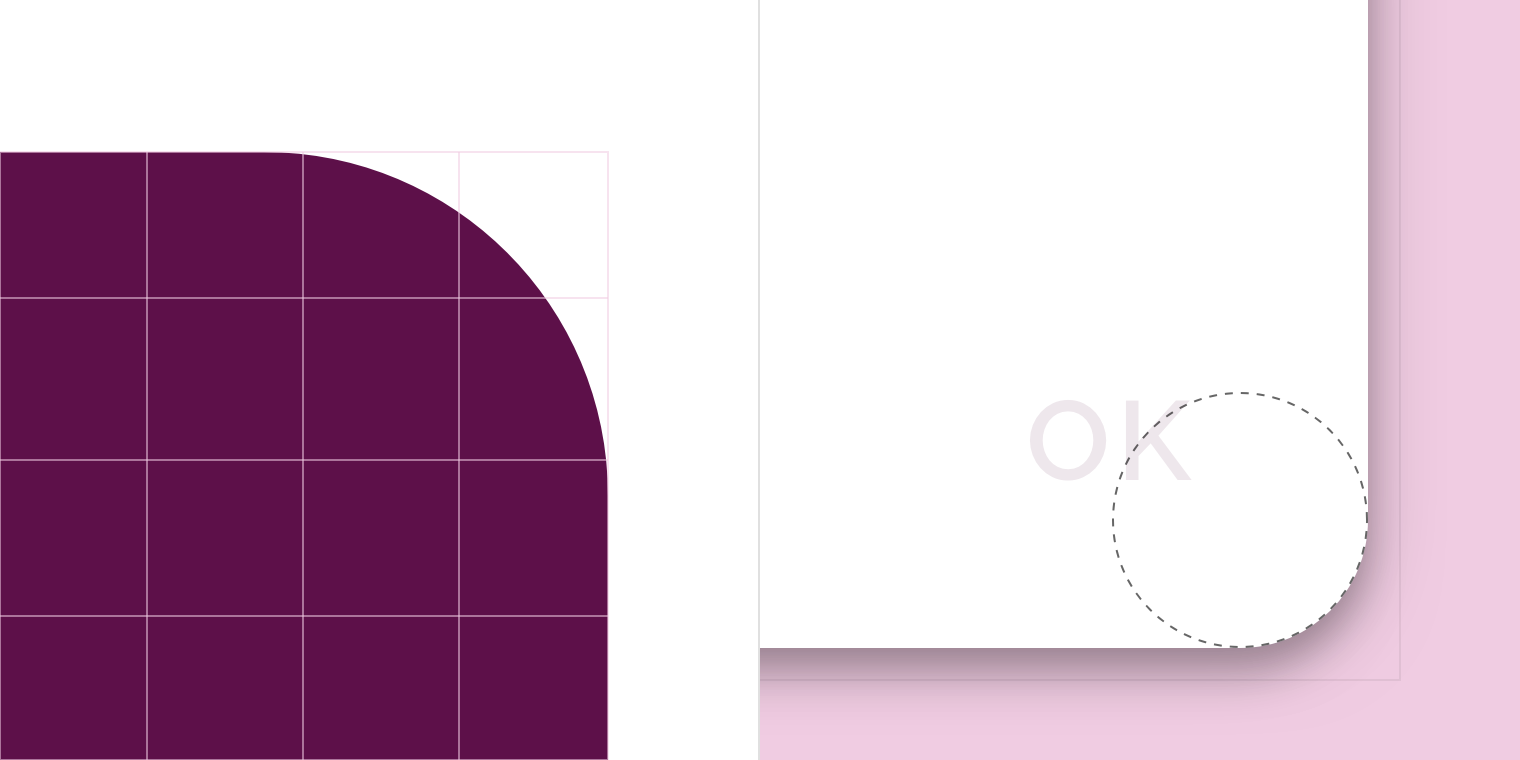

Shape
Crane’s dialog boxes have custom corner shapes.
Element | Category | Value |
---|---|---|
Container | Top left corner Top right corner Bottom right corner Bottom left corner |
Rounded 16dp Rounded 16dp Rounded 16dp Rounded 16dp |
Reply Material theme

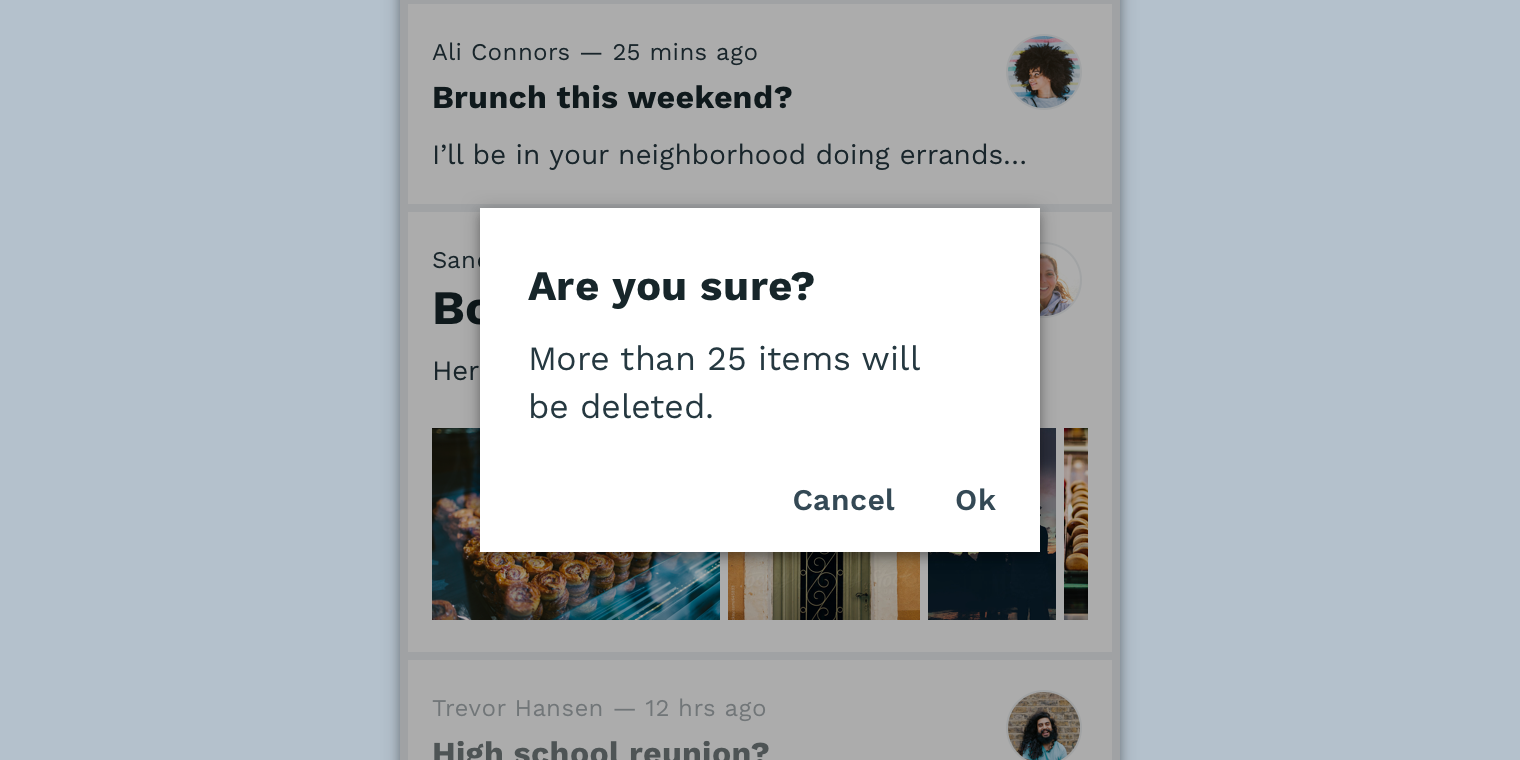

This email app’s dialogs have been customized using Material Theming. Areas of customization include color, typography, and shape. Reply is an email app that uses...
This email app’s dialogs have been customized using Material Theming. Areas of customization include color, typography, and shape.
Color

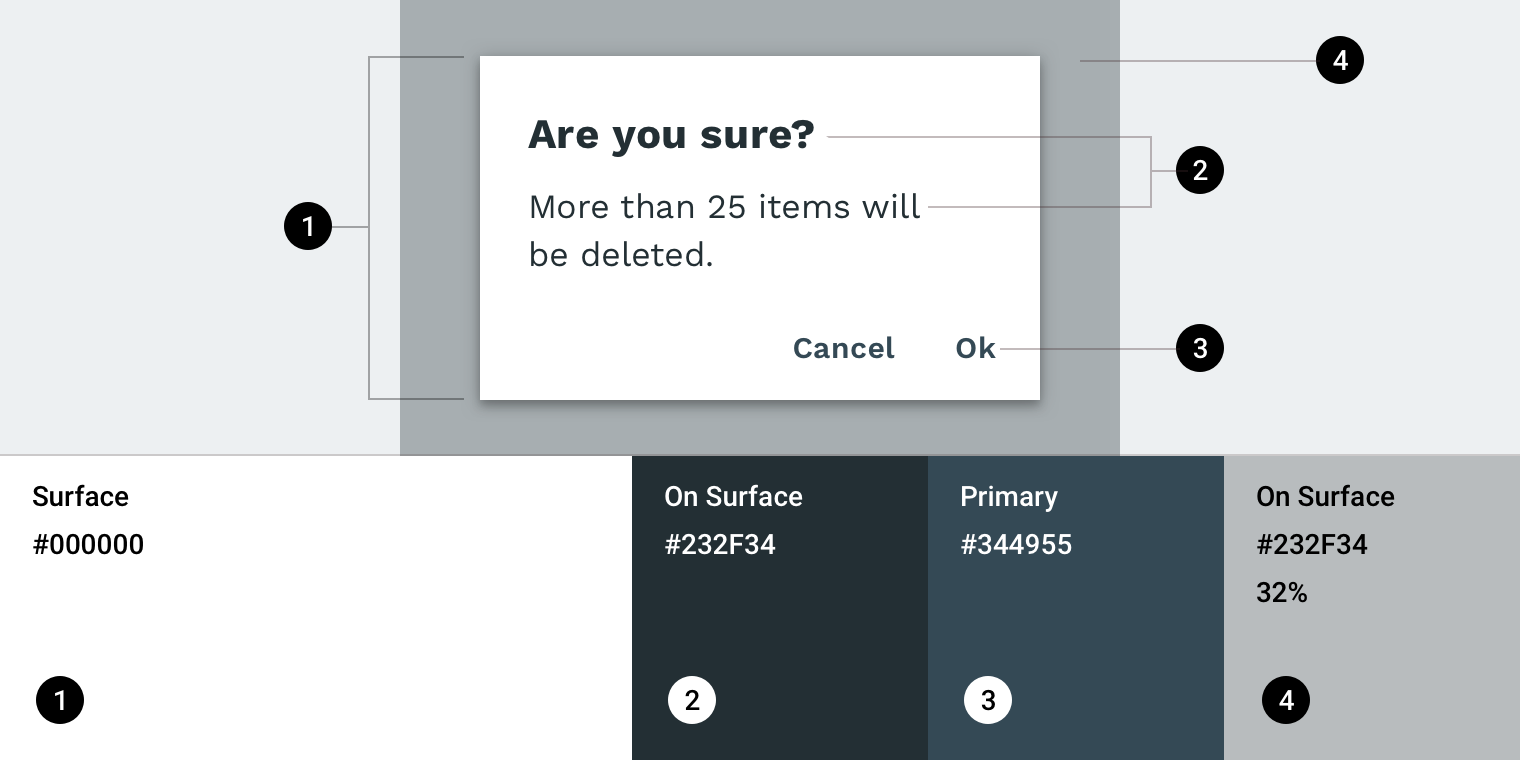

Reply’s dialogs use custom color on five elements: the dialog box, title text, supporting text, button text, and scrim.
Element | Category | Attribute | Value |
---|---|---|---|
Container | Surface | Color Opacity |
#000000 100% |
Title text | On Surface | Color Opacity |
#232F34 100% |
Supporting text | On Surface | Color Opacity |
#232F34 100% |
Button text | Primary | Color Opacity |
#344955 100% |
Scrim | On Surface | Color Opacity |
#232F34 32% |
Typography
Reply’s dialogs use custom typography for title text, supporting text, and button text.
Element | Category | Attribute | Value |
---|---|---|---|
Title text | H6 | Typeface Font Size Case |
Work Sans Bold 21 Sentence case |
Supporting text | Body 1 | Typeface Font Size Case |
Work Sans Regular 16 Sentence case |
Button text | Button | Typeface Font Size Case |
Work Sans SemiBold 15 Sentence case |
Shape

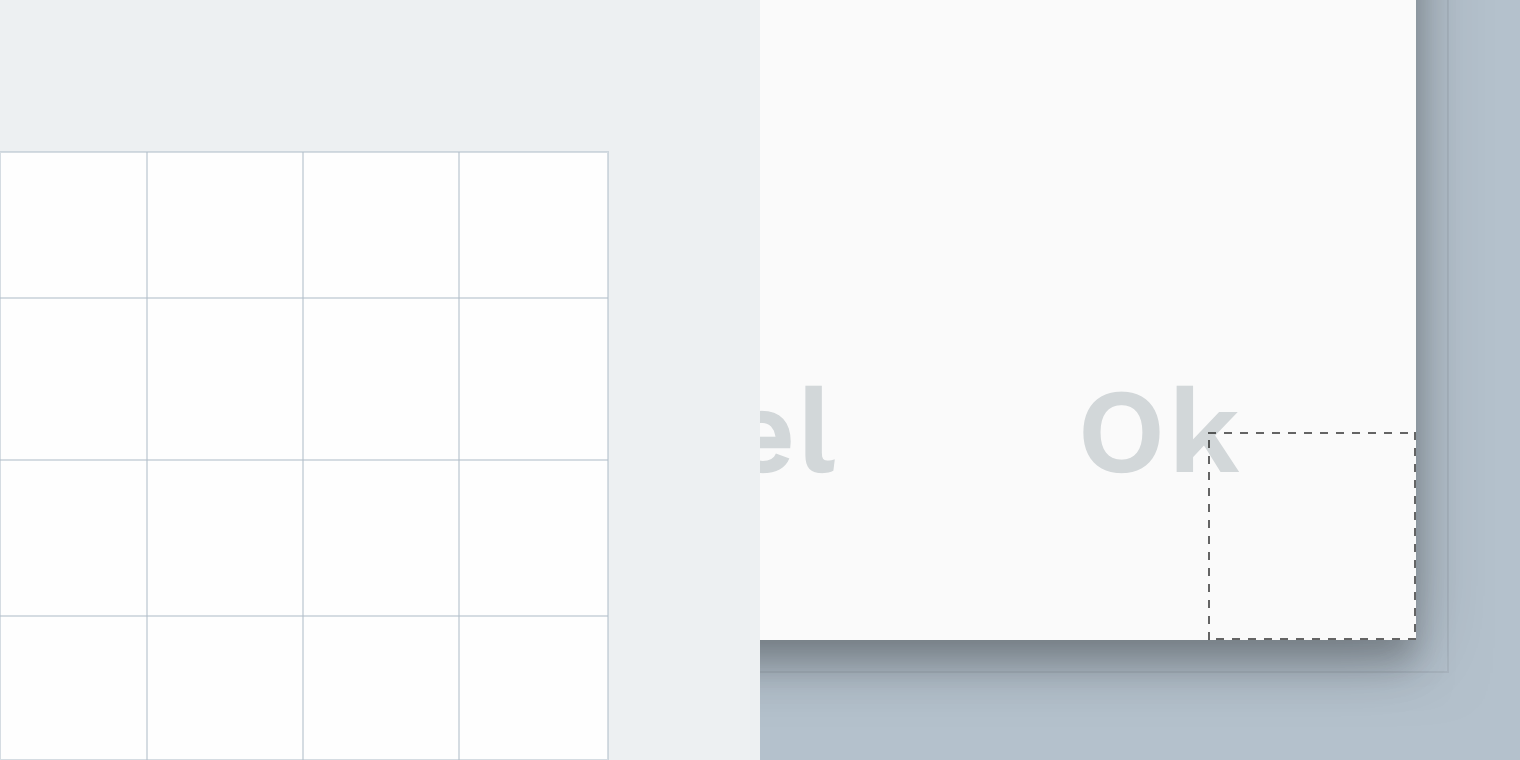

Reply’s dialog boxes have custom corner shapes.
Element | Category | Attribute | Value |
---|---|---|---|
Container | Medium component | Family Size |
Cut 0;0;0;0dp |
Specs
Mobile
20dp #000000de 14dp #00000099 #ffffff R255 G255 B255 Elevation 24dp All corners Rounded: 4dp Scrim #000000, opacity:32% All measurements are displayed in device-independent pixels (dps)...

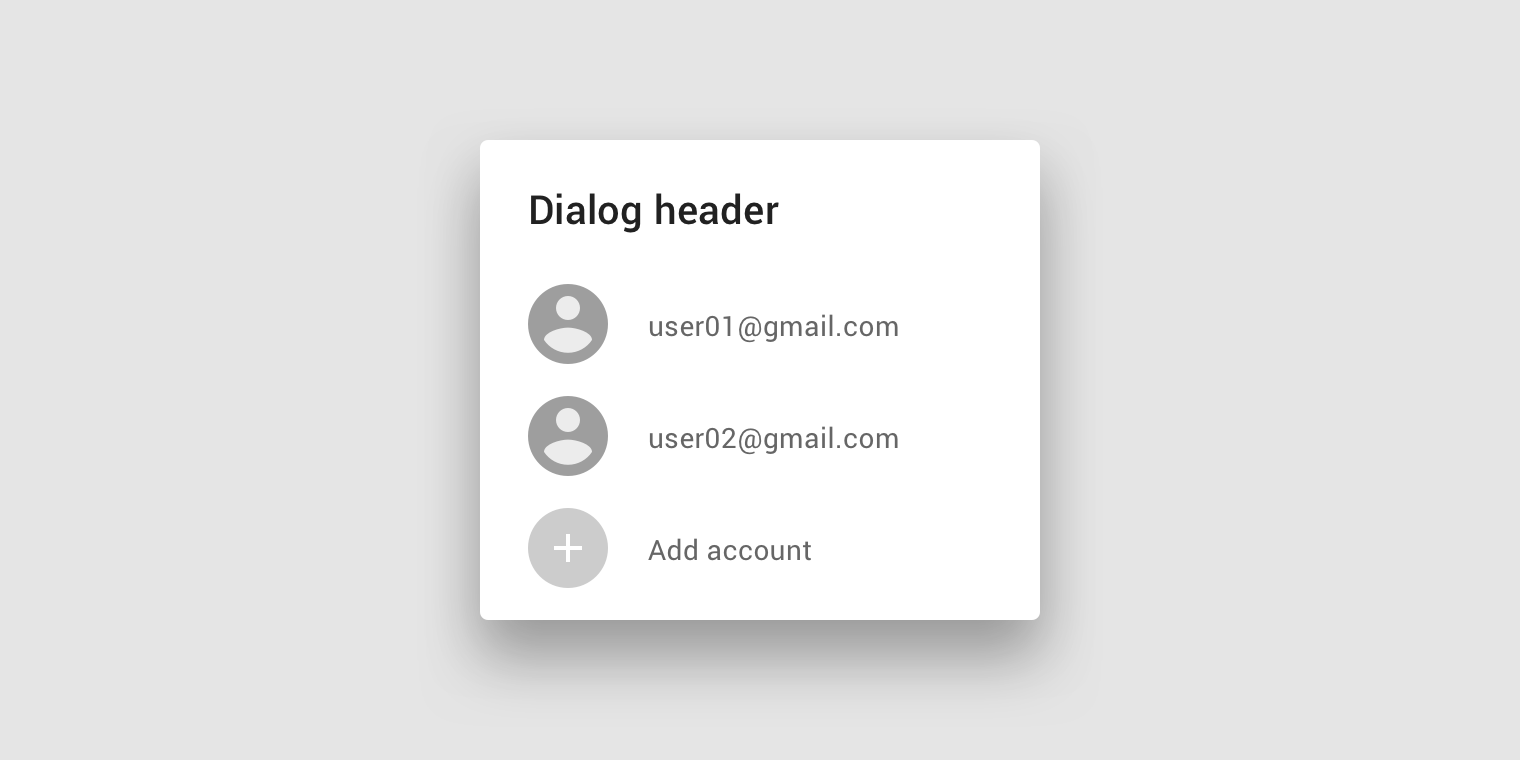

Simple dialog
- 64 Measurement 64
- 24 Measurement 24
- 20 Measurement 20
- 40 Measurement 40
- 56 Measurement 56
- 4040
#ffffff
R255 G255 B255
- Shape
All corners
Rounded: 4dp
- General
Scrim
#000000, opacity:32%

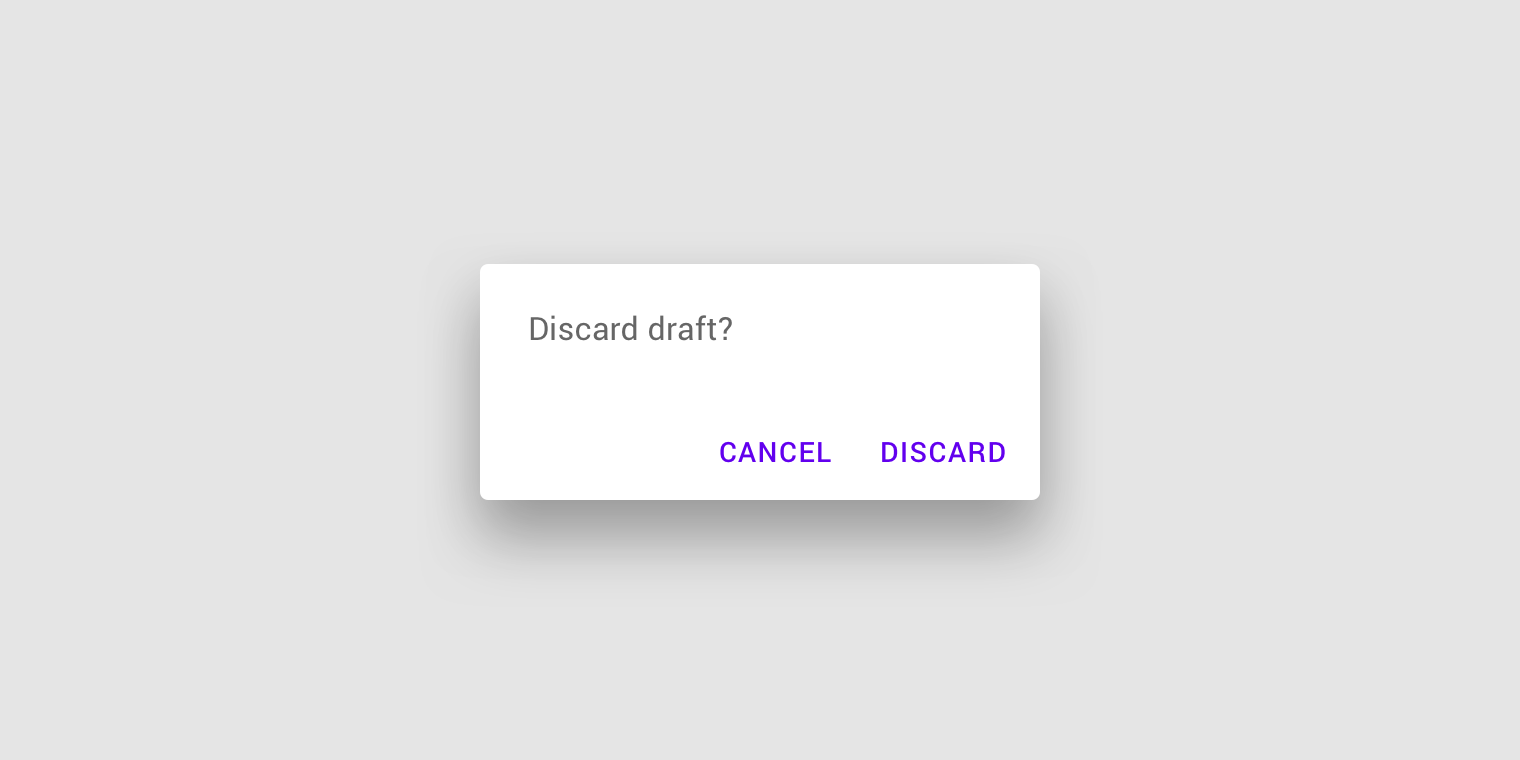

Alert dialog
- 52 Measurement 52
- 24 Measurement 24
- 24 Measurement 24
- 38 Measurement 38
- 28 Measurement 28
- 280 Measurement 280
- 8 Measurement 8
- 8 Measurement 8
- 8 Measurement 8
- 8 Measurement 8
#ffffff
R255 G255 B255
- Shape
All corners
Rounded: 4dp
- Components open_in_new
Text Buttons
- General
Height
- General
Scrim
#000000, opacity:32%
Confirmation dialog
- 24 Measurement 24
- 24 Measurement 24
- 52 Measurement 52
- 280 Measurement 280
- 40 Measurement 40
- 36 Measurement 36
- 8 Measurement 8
- 8 Measurement 8
- 8 Measurement 8
- 8 Measurement 8
- 28 Measurement 28
#ffffff
R255 G255 B255
- Shape
All corners
Rounded: 4dp
- Components open_in_new
Text Buttons
- General
Height
- General
Scrim
#000000, opacity:32%
Confirmation dialog (scrolling)
- 64 Measurement 64
- 52 Measurement 52
- 280 Measurement 280
- 24 Measurement 24
- 32 Measurement 32
- 24 Measurement 24
- 40 Measurement 40
- 8 Measurement 8
- 8 Measurement 8
- 8 Measurement 8
- 8 Measurement 8
- 48 Measurement 48
- C Measurement C
- 2424
- Shape
All corners
Rounded: 4dp
- Components open_in_new
Text Buttons
- Components open_in_new
Radio Buttons
- General
Scrim
#000000, opacity:32%
Confirmation dialog with long actions
- 24 Measurement 24
- 24 Measurement 24
- 36 Measurement 36
- 28 Measurement 28
- 8 Measurement 8
- 12 Measurement 12
- 8 Measurement 8
- 40 Measurement 40
#ffffff
R255 G255 B255
- Shape
All corners
Rounded: 4dp
- Components open_in_new
Text Buttons
- General
Height
- General
Scrim
#000000, opacity:32%
Full-screen dialog
- 16 Measurement 16
- 32 Measurement 32
- 8 Measurement 8
- 8 Measurement 8
- 12 Measurement 12
- 56 Measurement 56
- 24 Measurement 24
- 38 Measurement 38
#6200eeff
R98 G0 B238 A1.00
- Components open_in_new
Text Buttons
Desktop
20dp #000000de 16dp #00000099 14dp #6200ee #ffffff R255 G255 B255 #ffffff R255 G255 B255 Elevation 24dp All corners Rounded: 4dp Text Buttons Height The height...
Mobile alert
- 24 Measurement 24
- 8 Measurement 8
- 52 Measurement 52
- 182 Measurement 182
- 24 Measurement 24
- 40 Measurement 40
- 8 Measurement 8
- 560 Measurement 560
- 8 Measurement 8
- 8 Measurement 8
- 28 Measurement 28
- 36 Measurement 36
#ffffff
R255 G255 B255
#ffffff
R255 G255 B255
- Shape
All corners
Rounded: 4dp
- Components open_in_new
Text Buttons
- General
Height
The height of a dialog is dependent on the screen height and the amount of items inside.
- General
Scrim
#000000, opacity:32%
