Progress indicators

Progress indicators express an unspecified wait time or display the length of a process.


Usage

Progress indicators inform users about the status of ongoing processes, such as loading an app, submitting a form, or saving updates. They communicate an app’s state and indicate available actions, such as whether users can navigate away from the current screen.

Progress as a group

When displaying progress for a sequence of processes, indicate overall progress rather than the progress of each activity.

Principles

Progress indicators look and animate in ways that reflect the status of a process. They are never simply decorative. Progress indicators use animation to capture...

Read More

Informative

Progress indicators look and animate in ways that reflect the status of a process. They are never simply decorative.

Animated

Progress indicators use animation to capture attention and inform users of an activity’s progress.

Consistent

Progress indicators should be applied to all instances of a process (such as loading) in a consistent format (linear or circular).

Types

Material Design offers two visually distinct types of progress indicators: linear and circular progress indicators. Only one type should represent each kind of activity in...

Read More

Linear and circular

Material Design offers two visually distinct types of progress indicators: linear and circular progress indicators. Only one type should represent each kind of activity in an app. For example, if a refresh action displays a circular indicator on one screen, that same action shouldn’t use a linear indicator elsewhere in the app.

  1. Linear indicator
  2. Circular indicator

Determinate and indeterminate

Progress indicators may be determinate or indeterminate:

Determinate indicators

Determinate indicators display how long a process will take. They should be used when the process completion rate can be detected.

Indeterminate indicators

Indeterminate indicators express an unspecified amount of wait time. They should be used when progress isn’t detectable, or if it’s not necessary to indicate how long an activity will take.

  1. Determinate progress indicators fill from 0 to 100%.
  2. Indeterminate progress indicators move along a fixed track, growing and shrinking in size.

As more information about a process becomes available, a progress indicator can switch from an indeterminate to a determinate state.

A linear progress indicator changes from indeterminate to determinate while loading a screen.


Linear progress indicators

Anatomy

The track is a fixed width rule, with set boundaries for the indicator to travel along. The indicator animates along the length of the track.

Read More

Linear progress indicators are composed of two required elements:

1. Track

The track is a fixed width rule, with set boundaries for the indicator to travel along.

2. Indicator

The indicator animates along the length of the track.

Behavior

Linear progress indicators display progress by animating an indicator along the length of a fixed, visible track. The behavior of the indicator is dependent on...

Read More

Linear progress indicators display progress by animating an indicator along the length of a fixed, visible track. The behavior of the indicator is dependent on whether the progress of a process is known.

Types

Linear progress indicators support both determinate and indeterminate operations.

Read More

Linear progress indicators support both determinate and indeterminate operations.

  • Determinate operations display the indicator increasing in width from 0 to 100% of the track, in sync with the process’s progress.
  • Indeterminate operations display the indicator continually growing and shrinking along the track until the process is complete.

Determinate linear progress indicator

Indeterminate linear progress indicator

Placement

The placement of a linear progress indicator can indicate the scope of a process. For example:

Read More

The placement of a linear progress indicator can indicate the scope of a process. For example:

  • A linear indicator at the center of the screen can indicate loading all screen content
  • A linear indicator attached to a container, such as a card, can indicate the process applies to that particular item (and that interaction with the rest of the UI is possible)
  • Expanding items can place a linear indicator along their expanding edge to draw user attention to where new content will appear

To indicate that loading affects the whole screen, a linear indicator can be placed in the background.

To focus user attention, a linear indicator is recommended for displaying item expansion onto larger surfaces, such as desktop.


Circular progress indicators

Behavior

Circular progress indicators display progress by animating an indicator along an invisible circular track in a clockwise direction. They can be applied directly to a...

Read More

Circular progress indicators display progress by animating an indicator along an invisible circular track in a clockwise direction. They can be applied directly to a surface, such as a button or card.

On Android, the “swipe to refresh” gesture displays a circular progress indicator to indicate that the UI is being refreshed.

Types

Circular progress indicators support both determinate and indeterminate processes.

Read More

Circular progress indicators support both determinate and indeterminate processes.

  • Determinate circular indicators fill the invisible, circular track with color, as the indicator moves from 0 to 360 degrees.
  • Indeterminate circular indicators grow and shrink in size while moving along the invisible track.

Determinate circular progress indicator

Indeterminate circular progress indicator

Placement

Circular progress indicators are positioned to indicate the process that they represent. Buttons allow users to take actions with a single tap. Related Article arrow_downward...

Read More

Circular progress indicators are positioned to indicate the process that they represent.

  • When centered on the screen, they indicate the initial loading of screen content.
  • When placed above or below existing content, they draw attention to where new content will appear.

A circular indicator centered on screen indicates an initial loading process.

An indicator appears where new items will appear, at the end of the current items grid.

Integrating with actions

A circular indicator can be integrated into a button or actionable icon to express a connection between an interaction and a specific item. They are typically used to express when an interaction, such as clicking a button again, isn’t available.

They should be used for short, indeterminate activities (between 2-5 seconds). Longer activities may require alternate methods of communication, such as snackbars or notifications.

Do.

Use circular indicators for short, indeterminate activities (< 5 seconds) requiring user attention.

Don’t.

Don’t apply progress indicators to every button in your app. They can unnecessarily interrupt the user’s task.


Specs

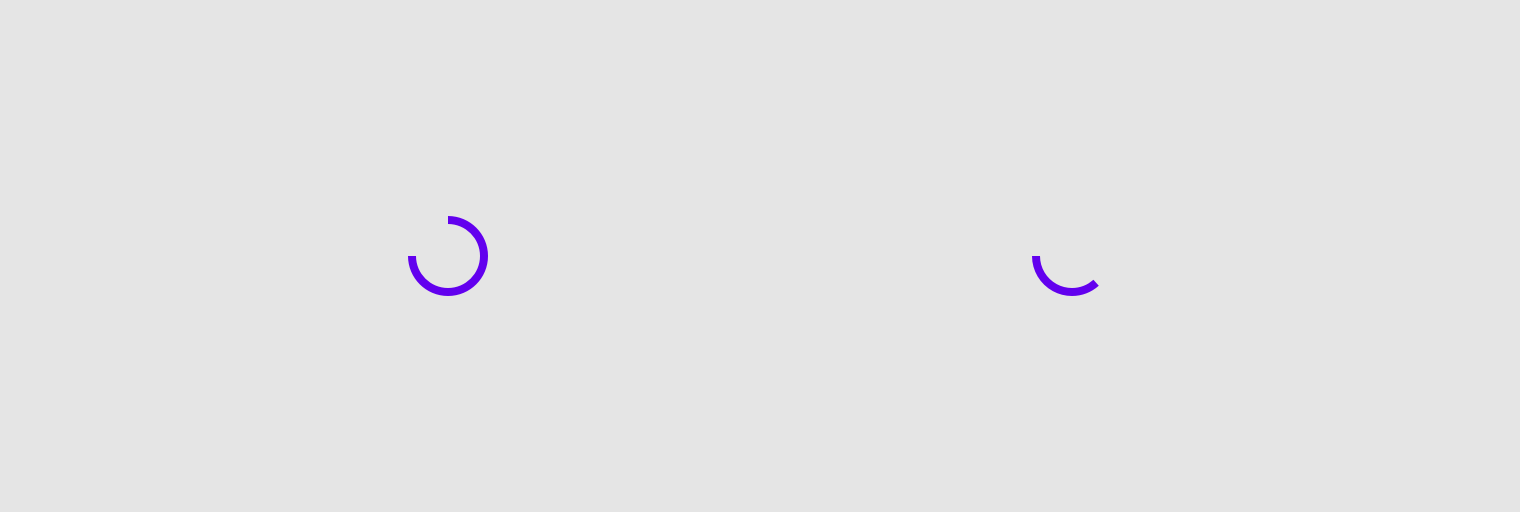

Circular indicators

  • 48 48
  • 48 48
  • #6200eeff

    R98 G0 B238 A1.00

  • General

    Stroke weight

    4dp

flip
flipSpecs only available at larger screen size

All measurements are displayed in device-independent pixels (dps)

Determinate indicators

  • 4
  • 144
  • 240
  • #6200eeff

    R98 G0 B238 A1.00

  • #6200ee99

    R98 G0 B238 A0.60

flip
flipSpecs only available at larger screen size

All measurements are displayed in device-independent pixels (dps)

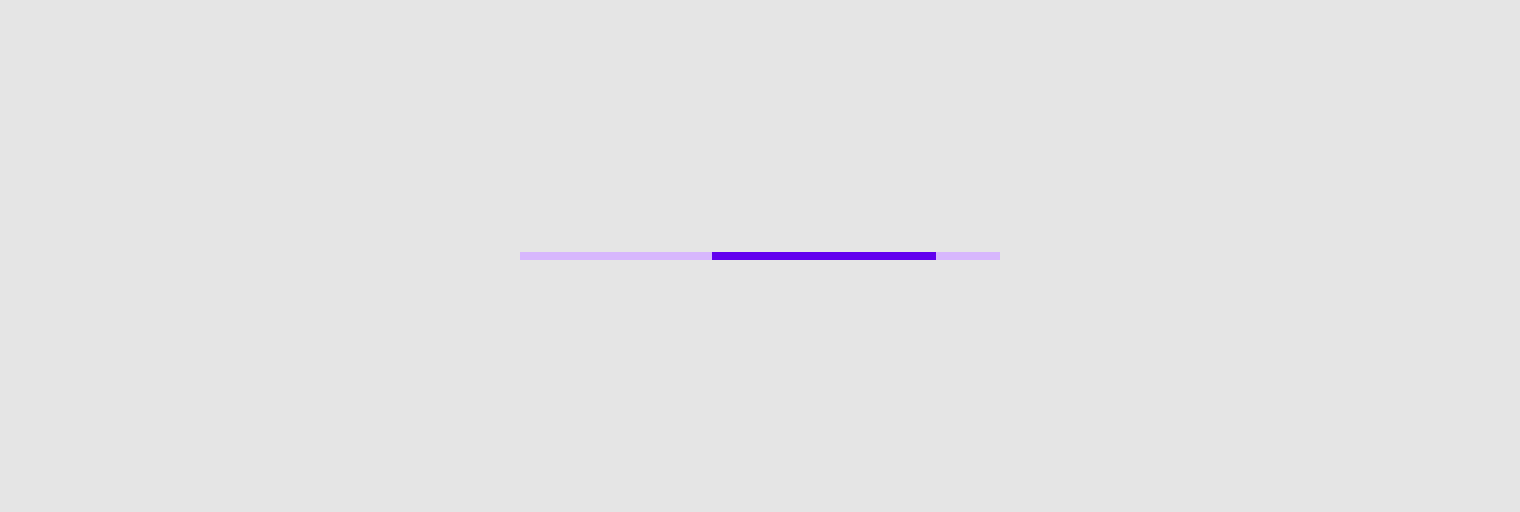

Indeterminate indicators

  • 4
  • 240
  • 112
  • #6200eeff

    R98 G0 B238 A1.00

  • #6200ee99

    R98 G0 B238 A0.60

flip
flipSpecs only available at larger screen size

All measurements are displayed in device-independent pixels (dps)


Implementation

Implementation support for progress indicators for each platform is indicated below.

Flutter Material Component

Status:Code Available

Web Material Component

Status:Under Development
